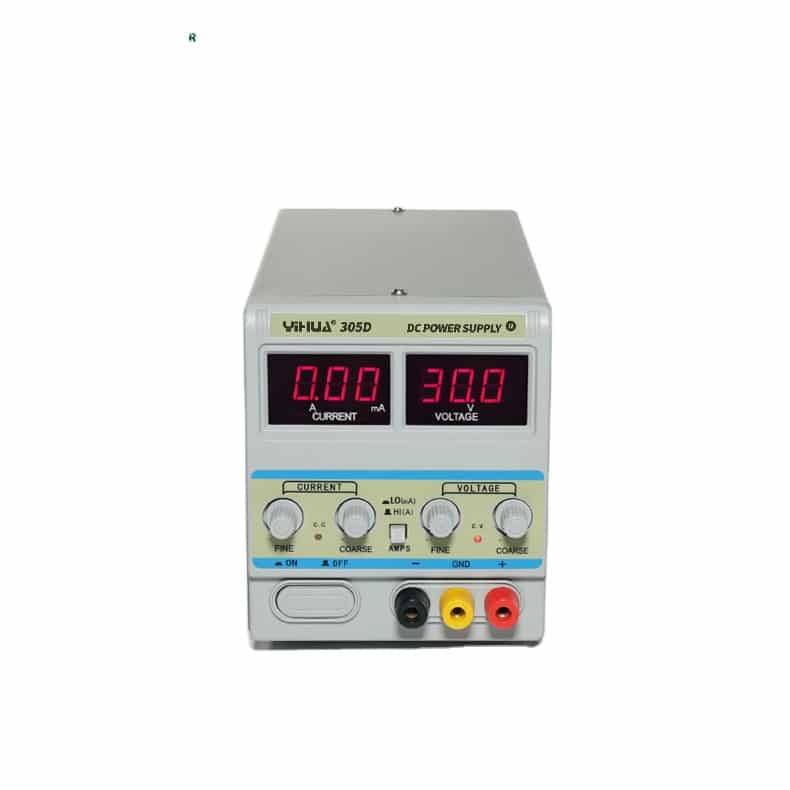

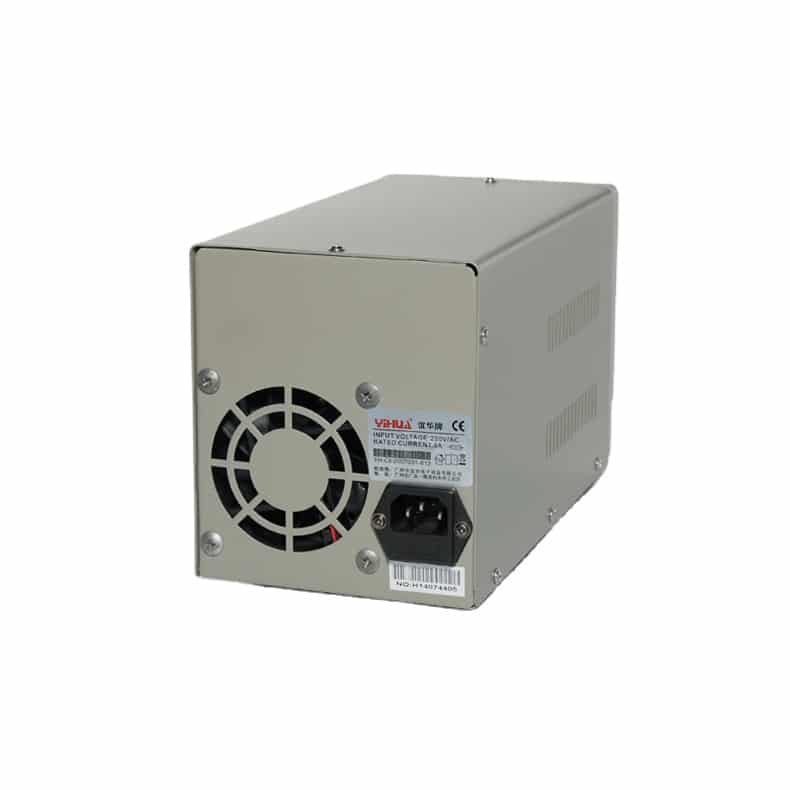

Yihua 305D-II Adjustable DC Power Supply

YIHUA 305D II DC Power Supply Adjustable DC Regulators power supply is specialized for laboratory, school, factory production lines, engineering, maintenance units designed to use, the output voltage between 0 to nominal value continuously adjustable. Also, the output load current from 0 to nominal value continuously adjustable, power stability and ripple factor are very good, and a perfect protection circuit, the power supply can also be used both as a steady flow power supply.

Technical Parameter

Power in: AC 220V 50Hz

Capacity: 200W

Output voltage: 0 – 30V DC

Output load current: 0 – 5A

Capacity: 150W

Effective voltage: ≤ 1mV

Load effect: ≤ 0.33%

Operating noise level: ≤3mV

Display accuracy: 0.1V / 0.1A / 1mA

Protection mode: Overload / Short circuit / Over temperature

Cooling system: Fan

Machine size: 255 x 130 x 150 mm

Weight: 4.6 kg
