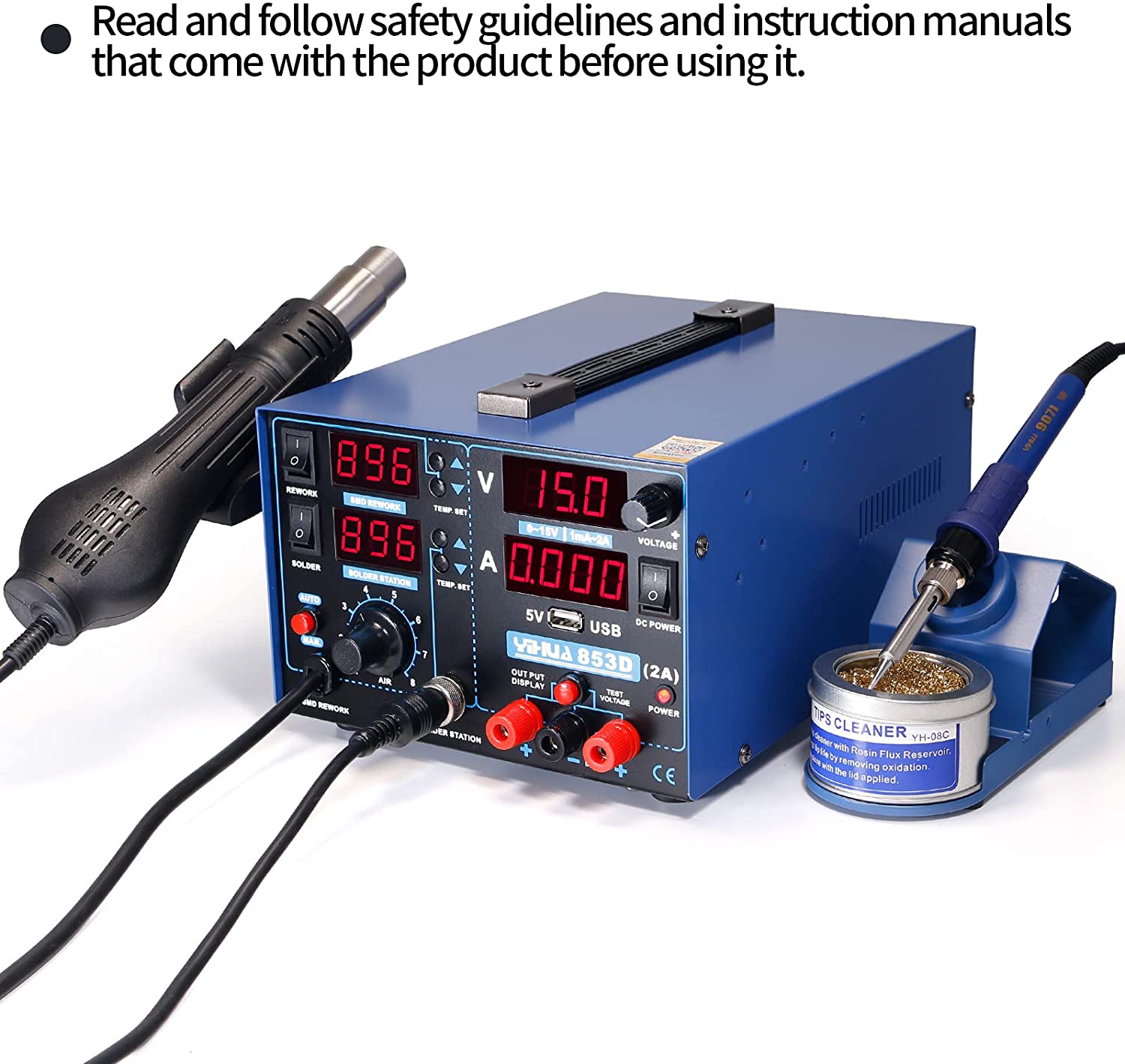

Yihua 853D 3 in 1 multifinctional tool has all the good benefits of a 2 in 1 rework station including soldering iron and hot air gun, but in addition addition it has a built in adjustable power supply and a 5V USB output port. The model is especially designed for mobile phone repairs.
Data sheet
| Working voltage | 230VAC EU, UK or AU plug |
| Iron power | 75W |
| Iron heater element type | 131A (ceramic) |
| Temperature control type | PID controller |
| Iron Sleep | Yes |
| Hot air element type | 25 mm (1 in) |
| Air pump type | Brushless fan |
| Hot air bracket sensor | Yes |
Technical Data:
| Power consumption: | 720W+75W+45W=840W±10%(max) |
| Input Voltage: | 230V |
Hot Air:
| Air flow: | 120L/min |
| Output power: | 700W |
| Temperature stability: | ±2°C |
| Gun type: | Brushless fan |
| Heater type: | 25 mm |
| Gun Temperature range: | 100-480°C |
Soldering Iron:
| Work Voltage : | 26V AC |
| Output power: | 75W |
| Temperature stability: | ±2°C |
| Soldering Iron Temperature range: | 200-480°C |
| Soldering Iron type: | 907I |
| Heater type: | 131AÂ High quality, made in Japan |
DC Power Supply:
| Output power: | 45W |
| Output voltage: | 0-15V |
| Output current: | 3A |
| Load stability: | <0.01±2mv |
| Ripple dB: | <1mvrms (virtual value) |
| Temperature coefficient: | <300PPm/°C |
| Protection starting current: | >standard value 10% |
| recovery time: | <100us |
Features:
- Four LED screens for hot air temperature, soldering iron temperature, power supply voltage and current.
- The current is accurately measured in mA precision and constantly updated
- In addition to Yihua standart automatic mode, air gun also has a manual mode switch. In automatic mode the gun automatically cools itself down and shuts off when it is placed on holder, manual mode keeps the airflow going all the time, it is especially useful with frequent use.
- Soldering iron has 10 min sleep function that saves energy and soldering tips.
- Extra 5V USB output port which can be used for charging mobile phones.
- More beefier and durable 4mm power terminals allow greater current flow.
- Based on latest SMT design, which ensures the reliability and endurance of the product.

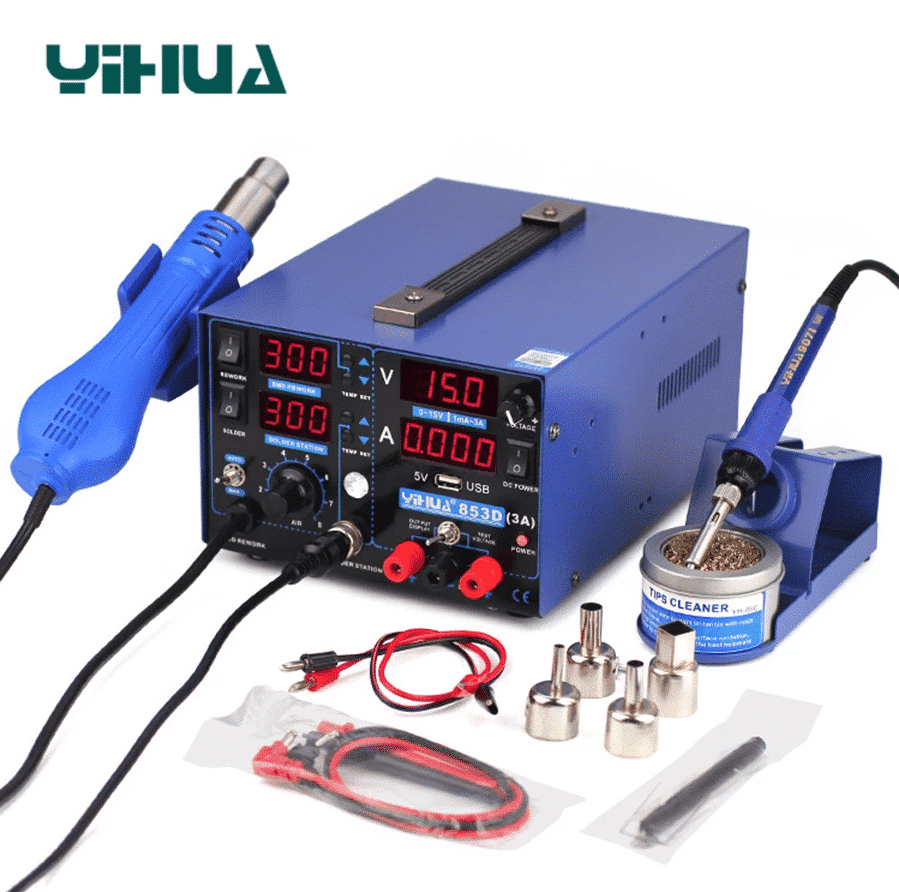

Included in the box:
- 853D 3A Soldering Station with hot air gun and power cable
- Soldering iron (900M-T-B tip installed)
- Soldering iron holder +gun frame+test cables
- 4 spare air nozzles: 5mm, 8mm, 10mm and 13mm square
- manual
