The YIHUA 3010D 30V 10A DC power supply is specially designed for scientific research, product development, lab testing, higher education practical applications, assembly lines and electronic repair. A regulated dc power supply also suitable for daily use, such as repair mobile phone, computer, machine plates, etc.
Adjustable DC Power Supply 3010D-III dc power supply , 30V 10A variable power supply supports 0~10A Current Protection, DC 0~30V Output Range; 300W Output Power, 350W Rate Power; -10°C~40°C/14°F~104°F Operating Ambient Temperature.

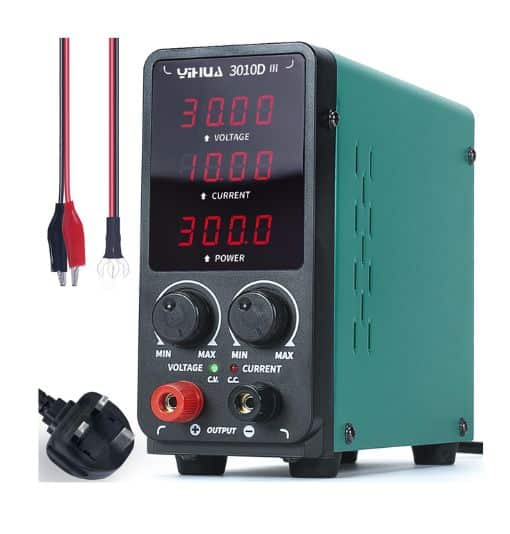

4-Digits LED Display Compact size, light weight and portable(only 7.67 * 2.75 * 6.18 inches). Support 4-digits display provide more accurate and clear date for the voltage and current value, it can read easily in low light environment. This bench power supply is highly efficient with a high power capacity and relatively low noise.

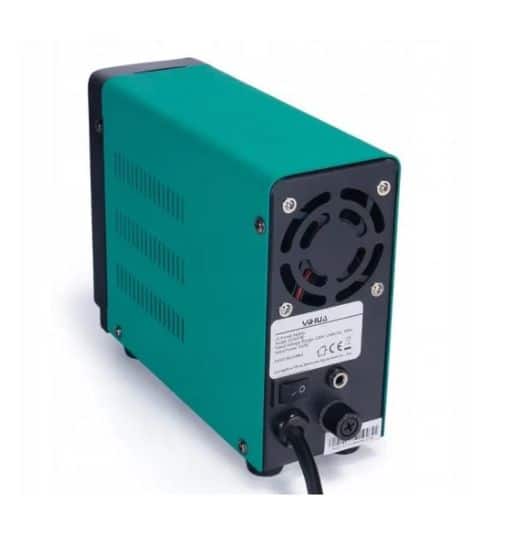

Intelligent Heat Dissipation: Temperature-controlled fan automatically turned on this function to protect the machine, when it detects the temperature of the power supply rise to the certain temperature, it can extend the life of the machine.
Multiple Protections The dc power supply can produce highly regulated voltage with low ripple. Supports sophisticated over-voltage protection, over-current protection, overload protection, over temperature protection, short circuit buzzer alarm.
1. 3 Protection: Short-Circuit/Overcurrent/Overheating
2. It is compact, lightweight, portable, and easy to carry
3. highly efficient with a high power capacity and relatively low noise.
4. 24 hours full-load work
5. Fan cooling function
|MAIN UNIT DIMENSIONS||L195*W70*H157MM ±5MM||L195*W70*H157MM ±5MM|
|OPERATING AMBIENT TEMPERATURE||-10-40℃-/14-104℉||-10-40℃-/14-104℉|
|OUTPUT RANGE VOLTAGE||DC 0-30V||DC 0-30V|
1 X Yihua 3010D Adjustable 30V 10Amp Regulated Dc Power Supply – 300W
