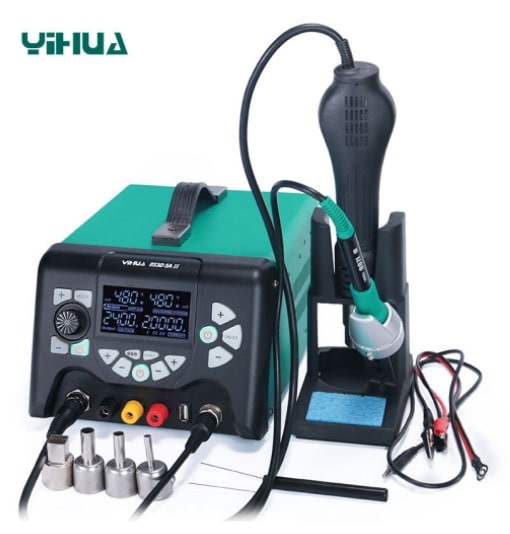

Discover the YIHUA 853D 5A II, a powerful and versatile 3-in-1 Rework Station that combines a 30V 5A DC Power Supply, Hot Air Gun, and Soldering Iron in one compact unit. Designed to meet the demands of professionals and hobbyists alike, this all-in-one solution offers unrivaled convenience and precision
Features:
- Yihua 853D 5A II 3-in-1 station, Hot air gun + Soldering iron + Power supply one station do all deals
- This machine contains three functions the welding table / hot air gun / power supply, you can use one of the functions separately
- Three commonly used temperatures can be pre-set Press the three-stage memory conversion key to switch CH1, CH2, and, CH3 channel
- Newly upgraded nozzles, easy plug-pull
- LCD display screen, master all storage and specification
- 5V USB for Phone charge/connect USB lamp
- Cool/hot air can one-button conversion
- Extend the lifespan of the heating element, save energy, and protect the environment
- Temperature correction, more accurate temperature for your soldering
- Three preset channels, convenient fast, save time considerate
- Long service life, brushless fan, safety efficient auto start-stop technology
Specification:
- Model Number: 853D 5A II
- Rated Power: 970W
- Main Unit Size: 250*190*137mm
- Operating Ambient Temp: 0~40℃/32~104℉
- Airflow: Brushless Motor with smooth airflow
- Airflow volume: ≤120L/min
- Hot air Temperature Range: 100~480℃/212~896℉
- Soldering Iron Temperature Range: 200~480℃/392~896℉
- DC Power Supply Output Voltage: DC0~30V±5%
- Output Current: 0~5A(Adjustable)
- Line Regulation: <0.067%±2mV
- Ripple & Noise: Vrms<0.1%
- Voltage Setting Accuracy: 0.1V
- Current setting Accuracy: 0.01A
- Voltage Display Accuracy: <0.6%±20mV
- Current Display Accuracy: <0.6%±0.2mA
Package includes:
- 1 x Main Machine
- 1 x Soldering Iron Handle
- 1 x Hot Air Gun Handle
- 1 x 2-in-1 Handle Holder
- 1 x Soldering Iron Head
- 4 x Nozzle
- 1 x Test Lead
- 1 x Power Cord
