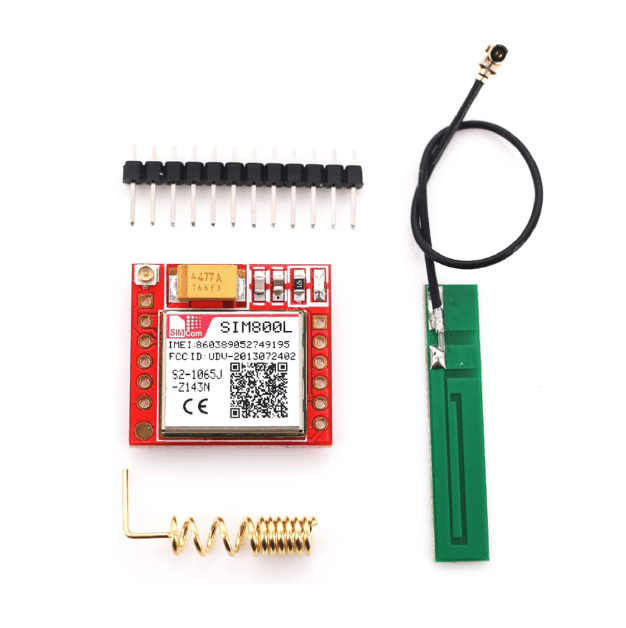

SIM800L GPRS GSM Module Core Board Quad-band TTL Serial Port with the antenna

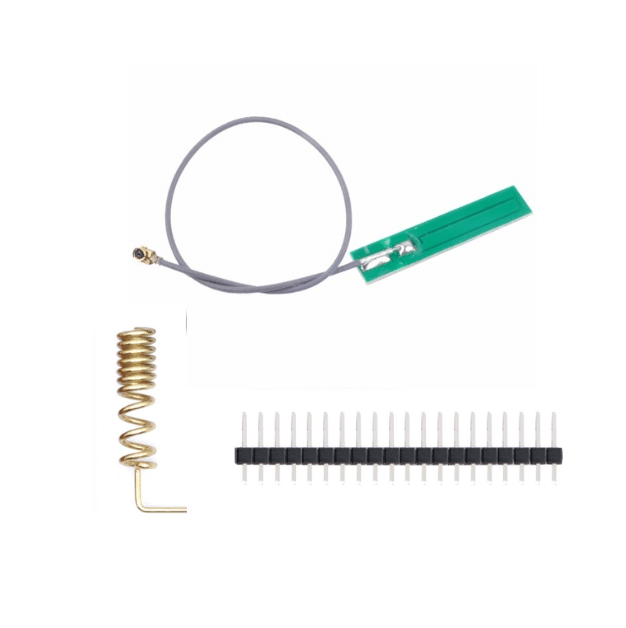

This is the Small SIM800L GPRS GSM Module Micro SIM Card Core Board with a Quad-band TTL Serial Port and antenna. This module includes two antennas. The SIM800L GSM/GPRS module is a miniature GSM modem, which can be integrated into a wide range of IoT projects. You can use this module to accomplish almost anything a normal cell phone can: send SMS text messages, make or receive phone calls, connect to the internet through GPRS, TCP/IP, and more! To top it off, the module supports quad-band GSM/GPRS networks, meaning it works almost anywhere in the world. The first antenna is made of wire (which solders directly to the NET pin on the PCB) – very useful in narrow places. The second antenna is a PCB antenna with double-sided tape and an attached pigtail cable with an IPX connector. This one has better performance and allows you to put your module inside a metal case, as long as the antenna is outside.

Caution: Use a resistor divider circuit before interfacing it with an Arduino to avoid damaging the module.

Technical Specifications:

• Module: SIM800L
• Network: Quad-band 850/900/1800/1900 MHz
• SIM Card: MicroSIM
• Interface: TTL Serial Port (3.3V and 5V compatible)
• Antenna: Onboard PCB antenna
• Power Supply: 3.7V to 4.2V DC
• Current Consumption: Sleep mode < 1mA, idle mode ~7mA, transmission ~200mA
• Data Rates: GPRS multi-slot class 12, up to 85.6 kbps (downlink)
• Dimensions: Extremely compact for space-constrained applications
• Operating Temperature Range: -40°C to +85°C

Features:

• Smallest Form Factor: Extremely compact design for integration into space-constrained projects
• Quad-Band Support: Compatible with global GSM/GPRS networks
• MicroSIM Card Slot: Supports MicroSIM cards for cellular connectivity
• TTL Serial Communication: Easy interface with microcontrollers and other devices
• Onboard PCB Antenna: Provides reliable signal reception and transmission
• Versatile Power Supply: Operates efficiently between 3.7V and 4.2V DC
• Low Power Consumption: Efficient design for battery-powered applications

Applications:

• IoT (Internet of Things) devices
• Remote data logging
• SMS and voice communication
• GPS tracking systems
• Home automation
• Security systems
• Wireless data transmission projects

Incorporate the Smallest SIM800L GPRS GSM Module into your projects for reliable and efficient cellular communication, providing robust performance in a compact and easy-to-integrate design.
