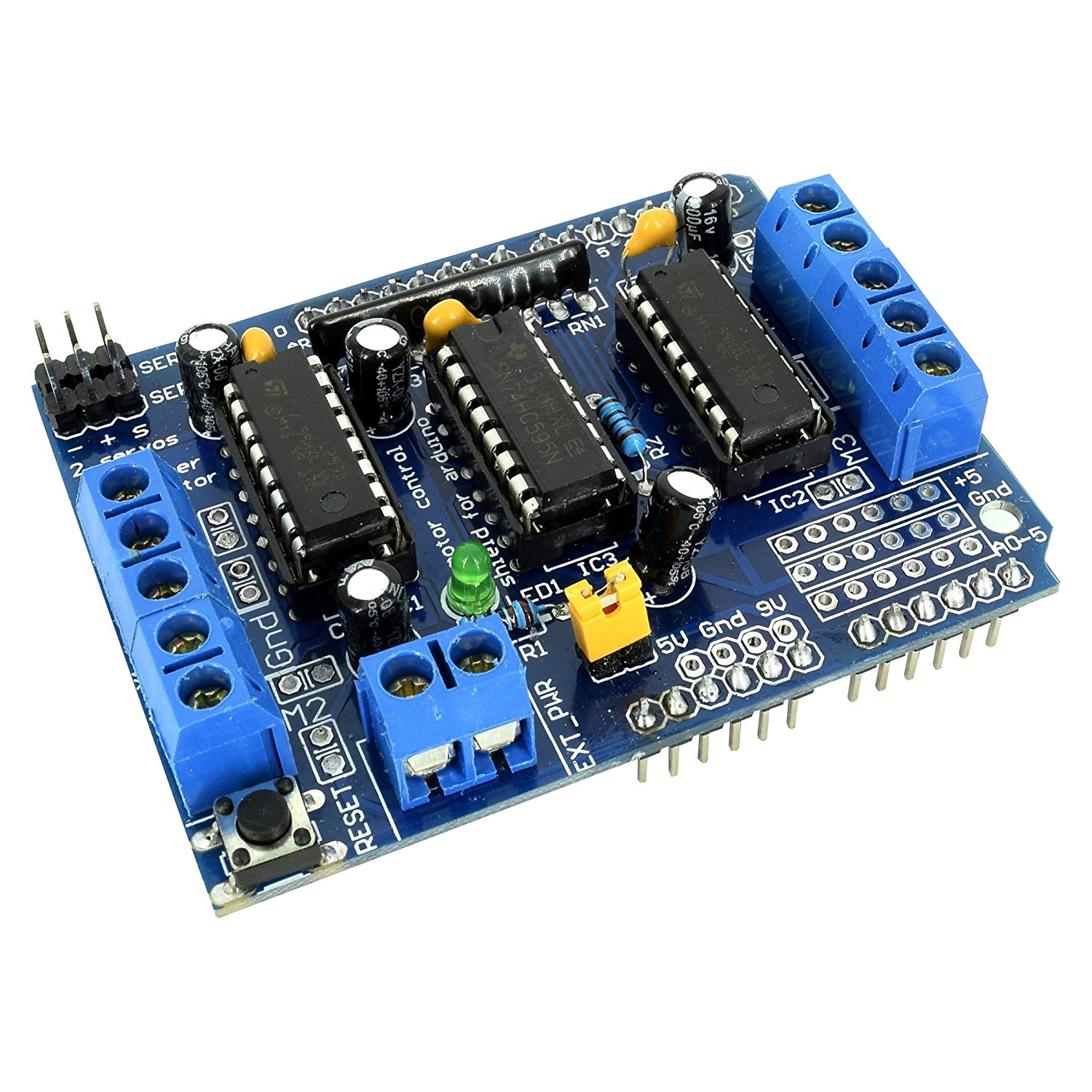

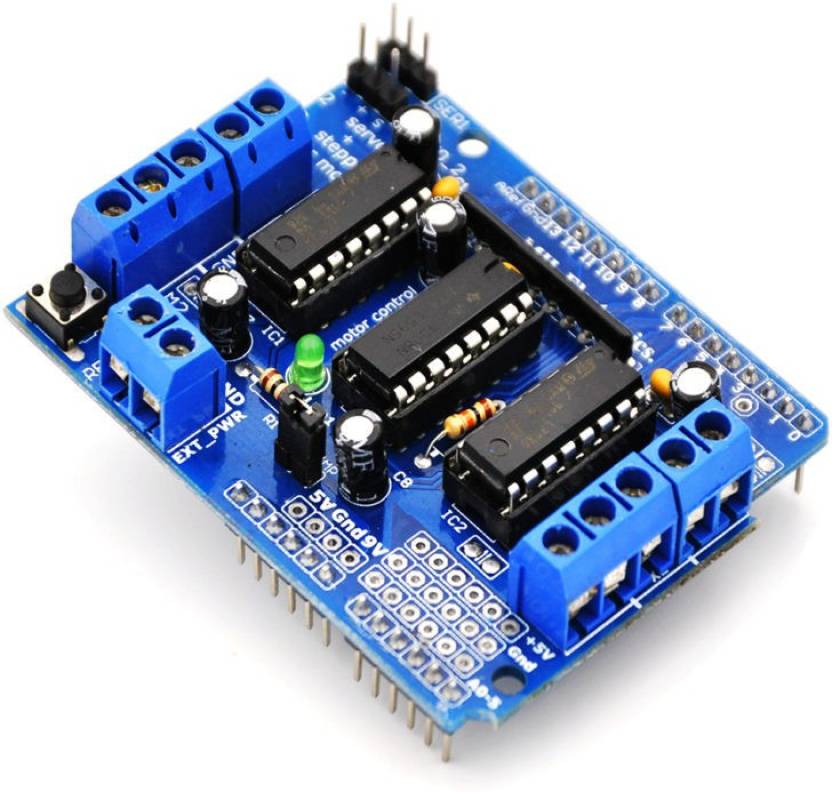

L293D Motor Driver is a monolithic integrated, high voltage, high current, 4-channel driver. Basically this means using this chip you can use DC motors and power supplies of up to 36 Volts, that’s some pretty big motors and the chip can supply a maximum current of 600mA per channel, the L293D chip is also what’s known as a type of H-Bridge. The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.
Technical Details:
- 2 interface for 5V Servo connected to For Arduino’s high-resolution dedicated timer – no jitter.
- Can drive 4 DC motors or 2 stepper motors or 2 Servo.
- Up to 4 bi-directional DC motors with individual 8-bit speed selection
- Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
- 4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 16V DC
– Pull-down resistors keep motors disabled during power-up
– reset button
– 2 external terminal power interface, for separate logic/motor supplies
– Tested compatible for Arduino Mega, Diecimila & Duemilanove
Package includes
1x L293D Stepper Motor Driver
