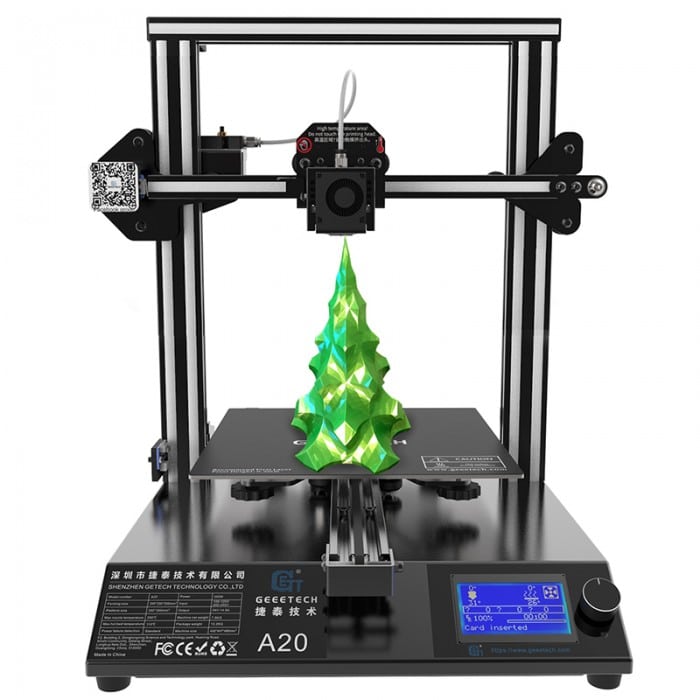

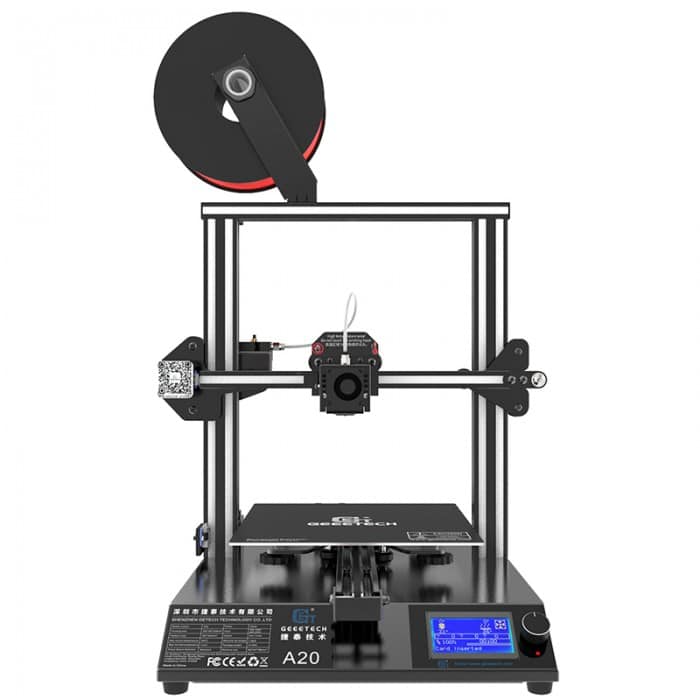

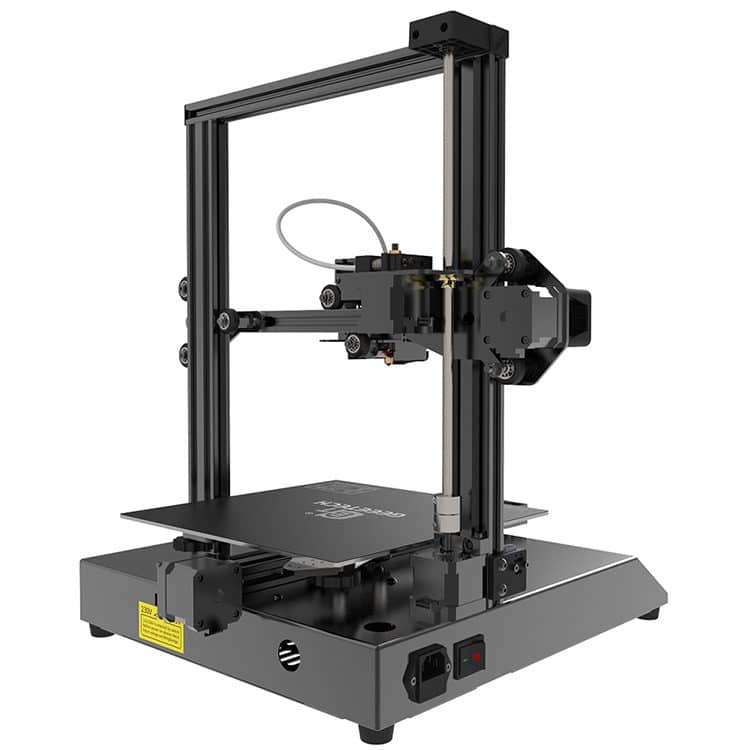

Geeetech A20 3D printer is designed to be reliable, cost-effective, and easy to assemble. Running stably, it delivers quality prints and provides you with a satisfactory printing experience.
Keeping Prusa I3 3D printers’ gantry structure, its modularized design provides you with an easier assembly experience. The electronic parts are integrated into its bottom frame, making A20 steady and enhancing its print results.
It comes with a filament detector sensor.
Printing parameters
Printing technology: FDM
Build volume: 250*250*250 mm ;
Printing accuracy: 0.1mm
Positioning precision: X/Y：0.011mm. Z： 0.0025mm
Printing speed: 180 mm/s (max)
Filament diameter: 1.75mm
Nozzle diameter: 0.4mm
Filament: ABS / PLA /wood-polymer/PVA/HIPS/PETG, etc.
Temp:
Max temp for hotbed: 100℃
Max temp for extruder: 250℃
Software resources
Operating system: Windows, MAC, Linux
Control software: EasyPrint 3D, Repetier-Host, Simplify 3D, Cura, Slic3r, etc.
Remote App: EasyPrint 3D App (with an optional 3D WiFi module)
File format: .STL, G.code
Electrical
Power supply: Input: 110V/220V
Output: DC 24V/15A
Connectivity: Wi-Fi (with an optional 3D WiFi module), USB cable,
SD card (support stand-alone printing)
Display screen: LCD 12864
Mechanical:
Frame: Aluminum profile
Build Platform: Aluminum heatbed+ plastic sticker
XY Rods: Wear-resistant aluminum profile
Z axis: Lead screw
Stepper Motors: 1.8°step angle with 1/16 micro-stepping
Physical Dimensions & Weight
Machine Dimension: 442 x 447 x 480mm³
Shipping box Dimension: 510 x 495 x 295mm³
Machine Net weight: 7.8kg
Machine Gross weight: 10.2 kg
