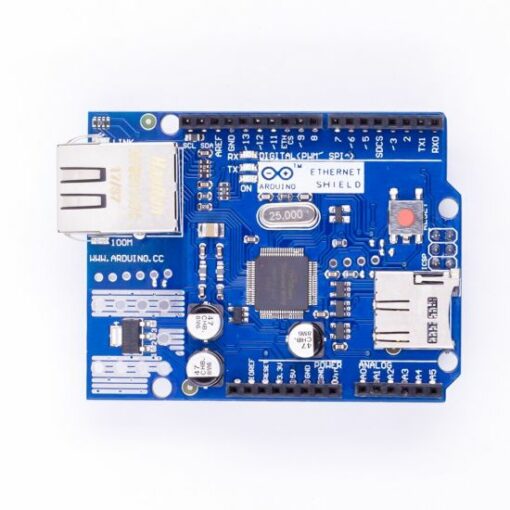

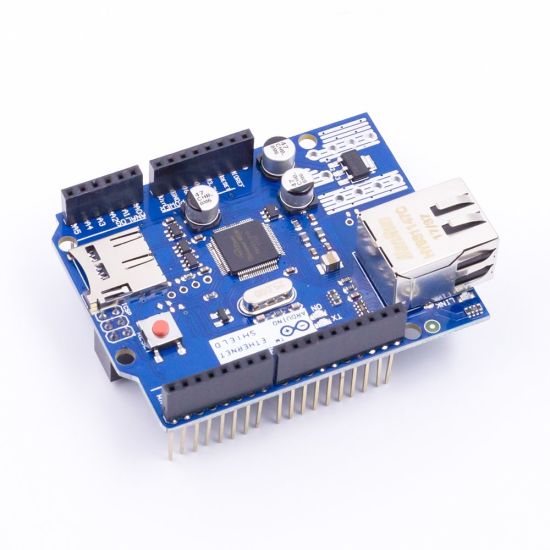

Ethernet W5100 R3 Ethernet & SD Shield

The Arduino Ethernet Shield allows an Arduino board to connect to the internet. It is based on the Wiznet W5100 ethernet chip. The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP. The Ethernet W5100 Shield Network Expansion Board w/ Micro SD Card Slot supports up to four simultaneous socket connections.

Specification

1. Requires an Arduino board (not included)Operating voltage 5V (supplied from the Arduino Board)
2. Ethernet Controller: W5100 with internal 16K buffer
3. Connection speed: 10/100Mb
4. Connection with Arduino on SPI port

Tech specs

1. Based on the W5100Based on the Wiznet W5100 allows an Arduino board to connect to the internet.
2. Stackable Design, can directly be supported by for Arduino’s official Ethernet Library.
3. Supports up to four simultaneous socket connections
4. Can be used to store files for serving over the network.
5. Compatible with the for Arduino Duemilanove (168 or 328), Uno as well as Mega (1280/2560).
6. Can be accessed using the Mini SD TF library.
7. The current shield has a Power over Ethernet (PoE) module designed to extract power from a conventional twisted-pair Category 5 Ethernet cable.
8. IEEE802.3af compliant
9. Low output ripple and noise (100mVpp)
10. Overload and short-circuit protection
11. 1500V isolation (input to output)

Package Include:

1x ethernet W5100 Shield Network Expansion Board
