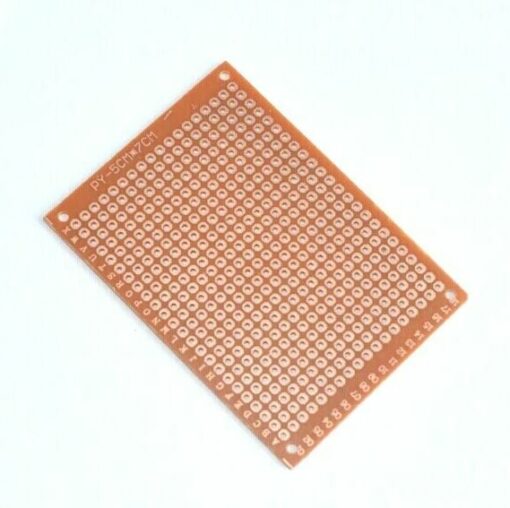

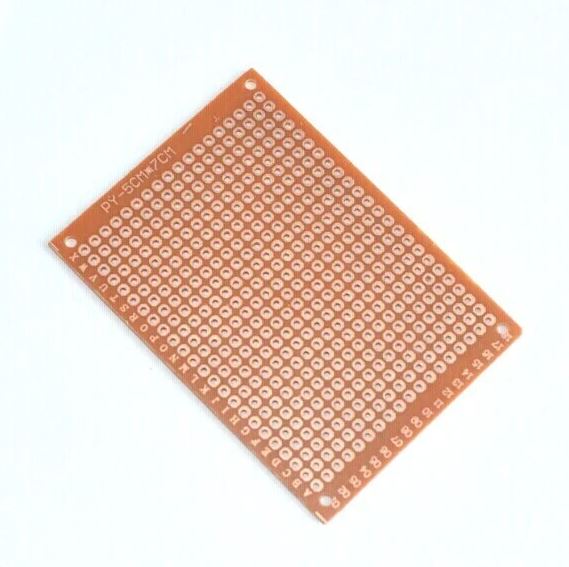

Single Sided Dotted PCB Board 5x7cm Brown

The Single Sided PCB Board 5x7cm is a high-quality prototyping board ideal for developing and testing electronic circuits. This PCB features a single copper layer on one side and an insulating brown phenolic or fiberglass substrate on the other, making it easy to solder components and create durable circuits. Its compact 5x7cm size is perfect for small to medium-sized projects, providing ample space for various components and connections.

Technical Specifications:

• Type: Single Sided PCB
• Size: 5x7cm
• Material: Phenolic or Fiberglass substrate
• Copper Thickness: Typically 1oz (35µm)
• Color: Brown
• Drill Hole Diameter: 1.0mm (typical)
• Hole Pitch: 2.54mm (standard)
• Grid Layout: Uniform grid layout for easy component placement
• Surface Finish: Tin-plated or bare copper for easy soldering

Features:

• High-Quality Material: Made from durable phenolic or fiberglass substrate for long-lasting use.
• Single Sided: Features a single copper layer on one side, simplifying the soldering process.
• Compact Size: 5x7cm size is perfect for small to medium-sized electronic projects.
• Standard Hole Pitch: 2.54mm grid layout makes it easy to place and solder components.
• Easy to Use: Ideal for prototyping and testing circuit designs.
• Versatile Application: Suitable for a wide range of electronic projects and DIY applications.

Applications:

• Prototyping and testing electronic circuits
• DIY electronics projects
• Small to medium-sized circuit designs
• Educational and hobbyist projects
• Custom electronic devices and gadgets

Usage Tips:

1. Component Placement: Arrange and place your components on the PCB according to your circuit design. Ensure the pins align with the grid layout.
2. Soldering: Use a soldering iron to solder the component leads to the copper pads. Ensure proper solder joints for reliable connections.
3. Trimming Leads: After soldering, trim any excess component leads to prevent short circuits.
4. Wiring: Use insulated wires to make connections between components if needed. Route the wires neatly to avoid clutter.
5. Testing: Once your circuit is complete, carefully inspect all connections and test your circuit for proper functionality.

The Single Sided PCB Board 5x7cm Brown is an essential tool for any electronics enthusiast, providing a reliable and easy-to-use platform for developing and testing electronic circuits.

Package includes:

• 1x Single Sided Dotted PCB Board 5x7cm Brown
