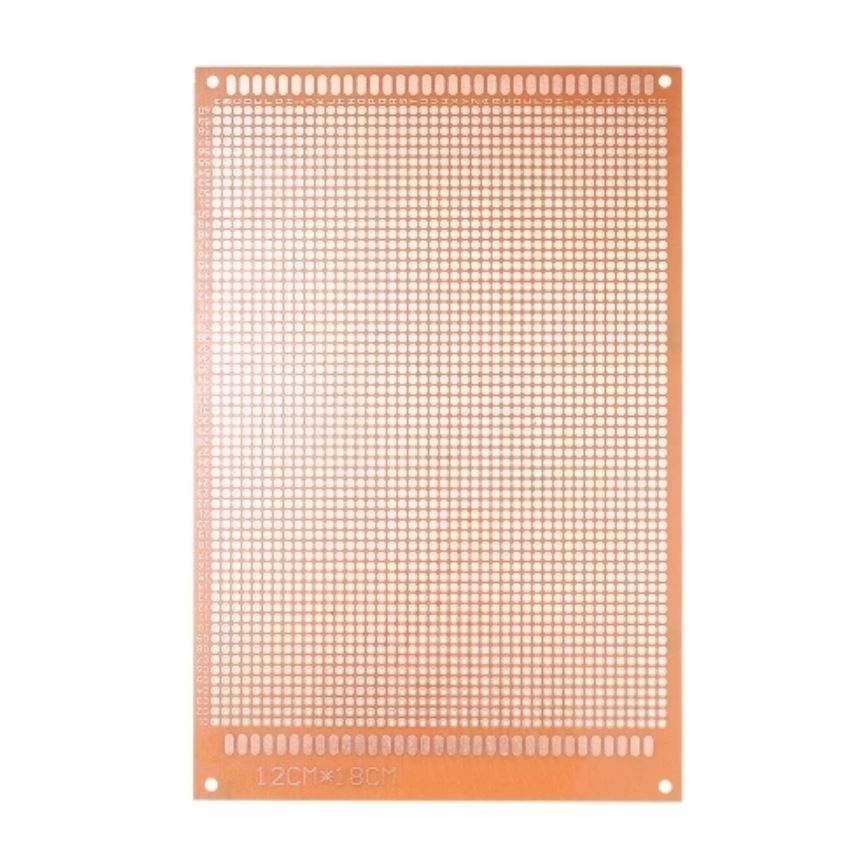

Single Sided Dotted PCB Board 12x18cm Brown

The Single Sided Dotted PCB Board 12x18cm is a versatile and high-quality prototyping board designed for developing and testing electronic circuits. This board features a single copper layer on one side with a dotted grid layout, making it easy to solder components and create durable connections. Its large 12x18cm size provides ample space for complex circuits and multiple components, making it ideal for both hobbyist and professional projects.

Technical Specifications:

• Type: Single Sided Dotted PCB
• Size: 12x18cm
• Material: Phenolic or Fiberglass substrate
• Copper Thickness: Typically 1oz (35µm)
• Color: Brown
• Drill Hole Diameter: 1.0mm (typical)
• Hole Pitch: 2.54mm (standard)
• Grid Layout: Uniform dotted grid layout for easy component placement
• Surface Finish: Tin-plated or bare copper for easy soldering

Features:

• High-Quality Material: Constructed from durable phenolic or fiberglass substrate for longevity.
• Single Sided: Features a single copper layer on one side, simplifying the soldering process.
• Large Size: 12x18cm size provides ample space for complex circuits and multiple components.
• Standard Hole Pitch: 2.54mm grid layout makes it easy to place and solder components.
• Easy to Use: Ideal for prototyping and testing circuit designs.
• Versatile Application: Suitable for a wide range of electronic projects and DIY applications.

Applications:

• Prototyping and testing electronic circuits
• DIY electronics projects
• Large and complex circuit designs
• Educational and hobbyist projects
• Custom electronic devices and gadgets

Usage Tips:

1. Component Placement: Arrange and place your components on the PCB according to your circuit design. Ensure the pins align with the grid layout.
2. Soldering: Use a soldering iron to solder the component leads to the copper pads. Ensure proper solder joints for reliable connections.
3. Trimming Leads: After soldering, trim any excess component leads to prevent short circuits.
4. Wiring: Use insulated wires to make connections between components if needed. Route the wires neatly to avoid clutter.
5. Testing: Once your circuit is complete, carefully inspect all connections and test your circuit for proper functionality.

The Single Sided Dotted PCB Board 12x18cm Brown is an essential tool for any electronics enthusiast, providing a reliable and easy-to-use platform for developing and testing electronic circuits, especially those that require more space and complexity.

Package includes:

• 1x Single Sided Dotted PCB Board 12x18cm Brown
