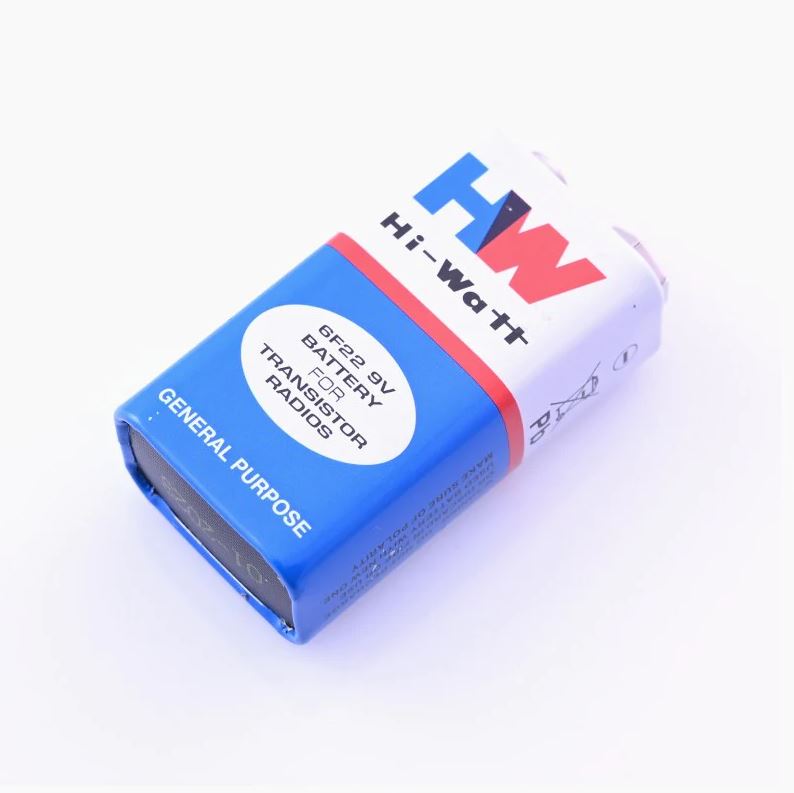

Hi-Watt 9V Battery is the most commonly used and portable 9V battery. It is non-rechargeable and is a high capacity and low-cost solution for many electronic devices. It is based on Zinc Carbon Chemistry and can be used easily replaced if discharged just like any standard AA and AAA batteries. The battery can be used to power LEDs, Toys, Flashlight and Torch, electronic equipment like multimeter, wall clocks, or other devices with a 9V system. A battery snap connector is generally used to connect it with a breadboard.
SPECIFICATIONS
- Nominal Voltage(V): 9V
- Battery Type: Zinc Carbon battery
- Dimension: 26.5mm x 48.5mm x 17.5mm
- System: Zinc Carbon
- Discharge Resistance (Ohms): 620
- Cut-off Voltage(V): 5.4
- Discharge Tie: 270Hm, 9 Hrs
- Jacket: Metal
- Operating Temperature Range (deg. C): -20 to +85
