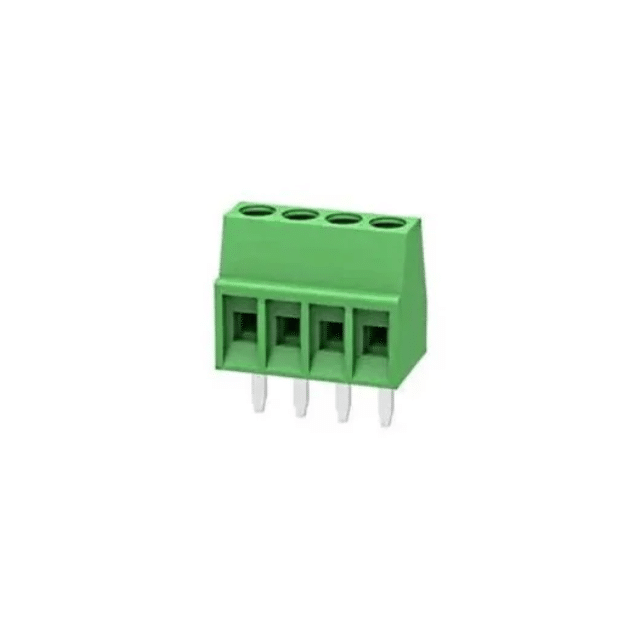

4 Pin Terminal Block (KF128)

The 4 Pin Plug-in Screw Terminal Connectors (KF128) are designed for secure and reliable electronics connections in various applications. With a pitch of 5.08mm, these connectors provide easy installation and maintenance, making them ideal for use in industrial control, instrumentation, and other electronic projects. The screw terminal design ensures a firm connection, while the plug-in feature allows for quick and convenient disconnection.

Technical Specifications:

• Connector Type: 4 Pin Plug-in Screw Terminal Connector
• Model: KF128
• Pitch: 5.08mm
• Number of Pins: 4
• Terminal Type: Screw terminal
• Mounting Style: PCB mount
• Rated Voltage: 300V
• Rated Current: 16A
• Wire Range: 26-12 AWG
• Insulation Material: Polyamide (PA66), UL94V-0
• Contact Material: Phosphor bronze, tin-plated
• Operating Temperature Range: -40°C to +105°C

Applications:

• Industrial control systems
• Instrumentation
• Power supplies
• Communication equipment
• Lighting systems

Ensure reliable and efficient electrical connections with our 4 Pin Plug-in Screw Terminal Connectors (KF128), featuring a 5.08mm pitch for easy integration into your electronic projects.

Package Includes:

1 x 4 Pin Terminal Block (KF128)
