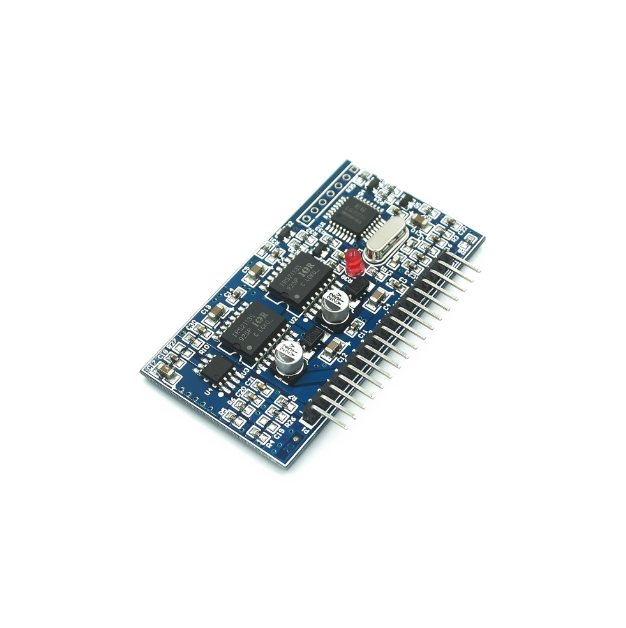

Pure Sine Wave Inverter Driver Board EGS002 EG8010 With Display Screen

The Pure Sine Wave Inverter Driver Board EGS002 is a high-performance driver module designed to convert DC power into a stable and efficient pure sine wave AC output. Utilizing the advanced EG8010 chip and IR2110 driver, this module ensures smooth and reliable operation, making it ideal for various power conversion applications.

Key Features:

• Advanced EG8010 Chip: The EG8010 digital sine wave SPWM controller provides precise and stable sine wave output, ensuring high efficiency and low harmonic distortion.
• IR2110 Driver: The IR2110 MOSFET driver enhances performance and reliability, capable of handling high-power applications with ease.

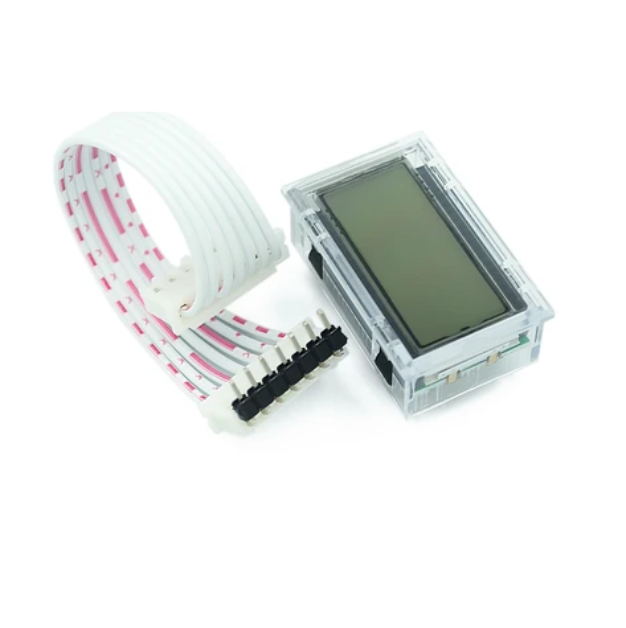

• Integrated Display Screen: Equipped with a display screen for real-time monitoring and easy configuration of key parameters, allowing for better control and management of the inverter system.
• Pure Sine Wave Output: Produces a pure sine wave output, ideal for sensitive electronic devices that require clean and stable power.
• Comprehensive Protection: Includes over-voltage, under-voltage, over-current, and short-circuit protection to ensure the safety and longevity of the connected devices.
• Versatile Applications: Suitable for use in solar power systems, uninterruptible power supplies (UPS), and other renewable energy applications.

Specifications:

• Model: EGS002 Pure Sine Wave Inverter Driver Board
• Controller Chip: EG8010
• Driver Chip: IR2110
• Input Voltage: 12V, 24V, 48V (model dependent, specify when ordering)
• Output Voltage: Pure sine wave AC output (110V or 220V, model dependent)
• Frequency: 50Hz or 60Hz (selectable)
• Efficiency: High efficiency with low harmonic distortion
• Display Screen: Integrated screen for real-time monitoring and parameter configuration
• Protection Features: Over-voltage, under-voltage, over-current, short-circuit protection
• Dimensions: Compact design for easy integration

Applications:

• Solar Power Systems: Convert DC power from solar panels to AC power for home or industrial use.
• Uninterruptible Power Supplies (UPS): Provide stable power backup for critical devices and systems.
• Renewable Energy Projects: Ideal for wind, hydro, and other renewable energy systems requiring efficient power conversion.
• Off-Grid Power Systems: Use in off-grid setups to provide reliable AC power in remote locations.
• DIY Power Projects: Perfect for hobbyists and engineers working on custom power solutions and inverter designs.

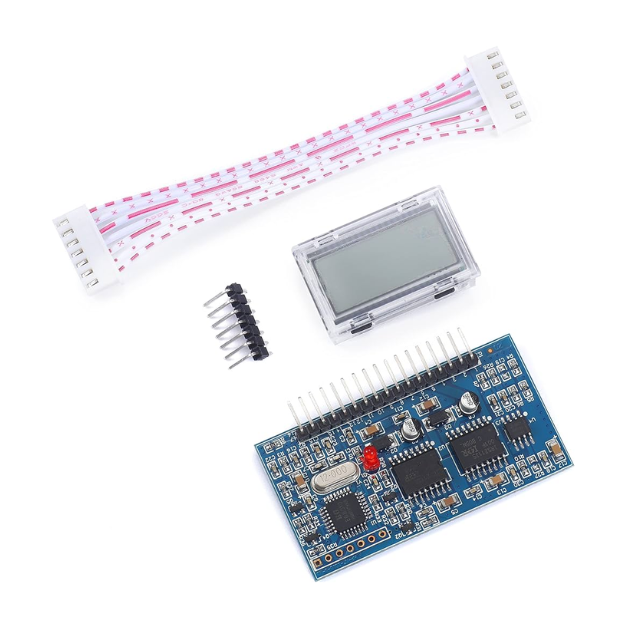

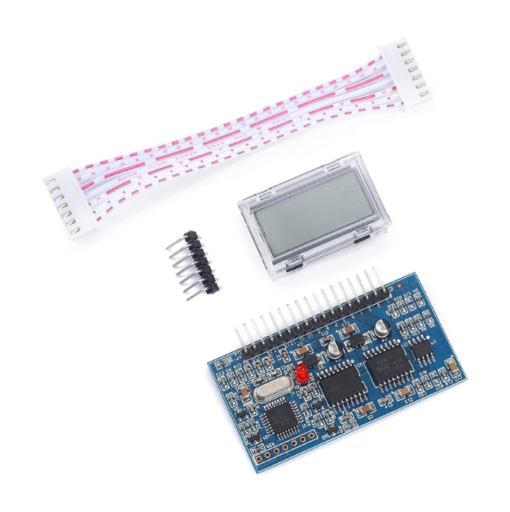

Package Includes:

• 1 x EGS002 Pure Sine Wave Inverter Driver Board
• 1 x Display Screen Module
• 1 x User Manual

The Pure Sine Wave Inverter Driver Board EGS002 “EG8010 + IR2110” Drive Module with Display Screen is a robust and versatile solution for all your power conversion needs. With its advanced features and reliable performance, this driver board ensures efficient and stable operation, making it an excellent choice for both professional and DIY applications
