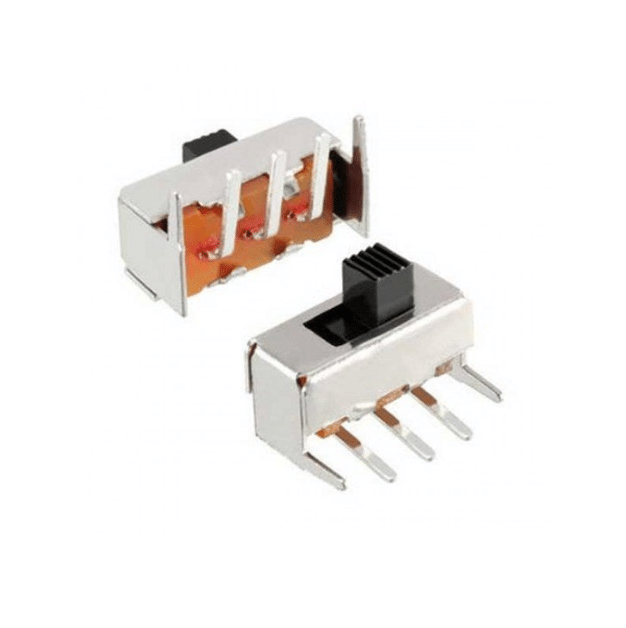

3 Pin 2 Position SPDT Slide Switch ON-ON (Right Angle)

The 3 Pin 2 Position SPDT (Single Pole Double Throw) slide switch is a reliable and versatile component for various electronic applications. Designed with a right-angle configuration, this switch allows for easy PCB mounting and optimal space utilization. It features an ON-ON configuration, enabling it to connect a common terminal to one of two other terminals. This switch is ideal for toggling between two circuits or states in a compact and efficient manner.

Technical Specifications:

• Type: SPDT Slide Switch
• Positions: 2-position (ON-ON)
• Pins: 3 pins
• Mounting Style: Right-angle PCB mount
• Contact Configuration: Single Pole Double Throw (SPDT)
• Electrical Rating: 0.3A at 50V DC
• Contact Resistance: ≤ 30mΩ
• Insulation Resistance: ≥ 100MΩ
• Actuation Force: 200-400g
• Body Material: Durable plastic with metal contacts
• Operating Temperature Range: -20°C to +85°C

Applications:

• Electronic circuits
• Signal switching
• Mode selection
• Power routing
• Small electronic devices

Upgrade your projects with our 3 Pin 2 Position SPDT Slide Switch, offering dependable performance and straightforward integration for seamless operation.

Package Include:

1 x 3 Pin 2 Position SPDT Slide Switch ON-ON (Right Angle)
