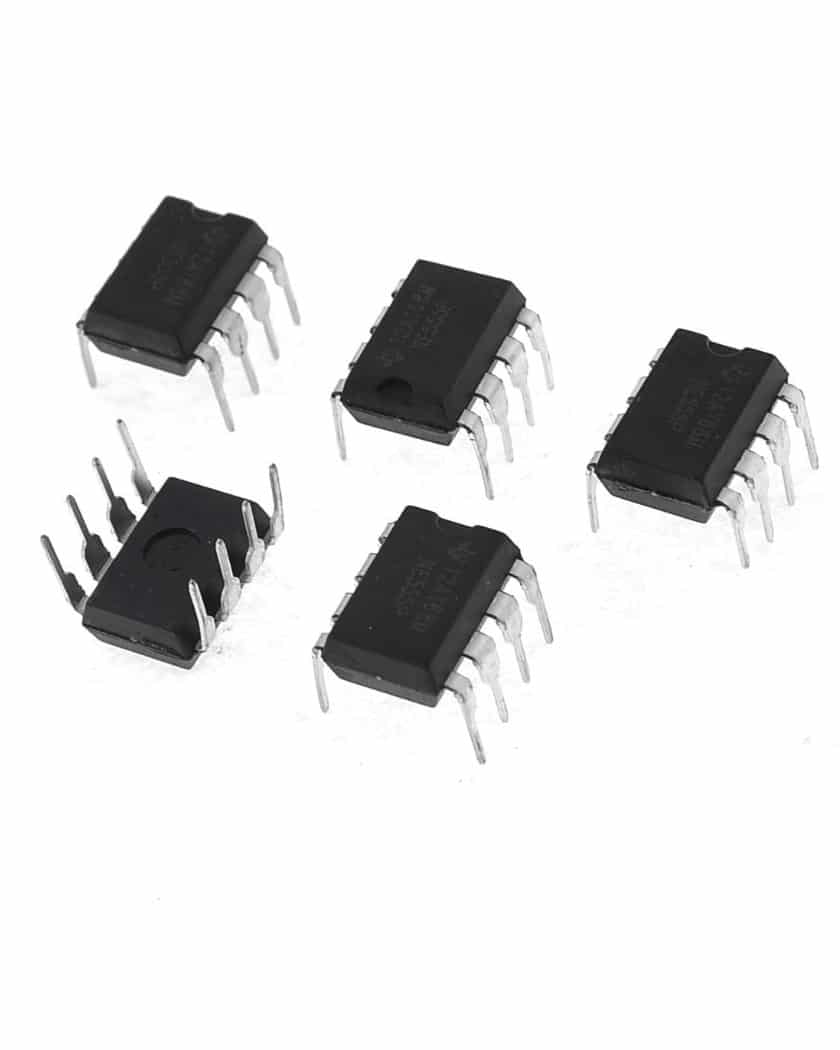

NE555 Timer IC 5 per pack

This NE555 timing circuit is a highly stable controller capable of producing accurate time delays or oscillation. In the time-delay or mono-stable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the astable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor. The circuit may be triggered and reset on falling waveforms, and the output structure can source or sink up to 200mA.

Features of NE555 Timer IC

1. Timing From Microseconds to Hours
2. Astable or Monostable Operation
3. Adjustable Duty Cycle
4. TTL-Compatible Output Can Sink or Source Up to 200 mA

Characteristics of the NE555 Timer IC

1. Supply voltage: 4.5- 16V
2. Operating Temperature : 0°C ~ 70°C
3. Current – Supply: 10mA
4. Frequency: 100kHz
