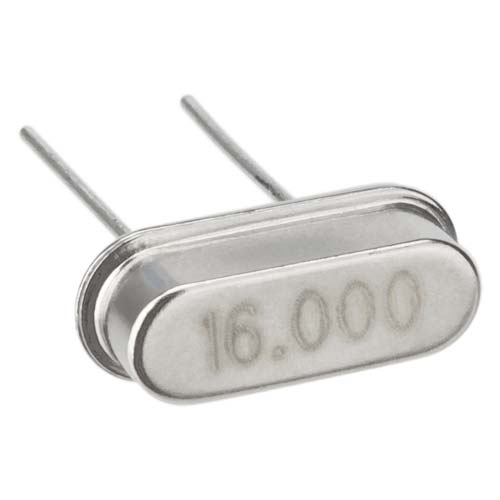

16Mhz Crystal oscillator

Standard frequency crystals – use these crystals to provide a clock input to your microprocessor. Rated at 22pF capacitance and +/- 20ppm stability. Low profile HC49/US Package.

Features:

• Resistance welded type crystal units.
• High-frequency pull ability and low equivalent series resistance.
• Lower cost and high mass production capacity.
• The best choice of PC, STB, LCDM, and Cable Modem.
• RoHS Compliant / Pb Free.
• Package: DIP HC-49S
• Frequency: 16 Mhz
• Frequency Tolerance(at 25 ): ±20 ppm
• Frequency Stability Over Operating Temperature Range: ±20 ppm
• Operating Temperature Range: -10 ~ + 60℃
• Shunt Capacitance(CO): 22pF Max.
• Drive Level: 1 ~ 500 μW (100μW typical)
• Storage Temperature Range: -40 ~ +85 ℃

Package includes:

• 1 x Crystal 16Mhz(HC-49/US TH)
