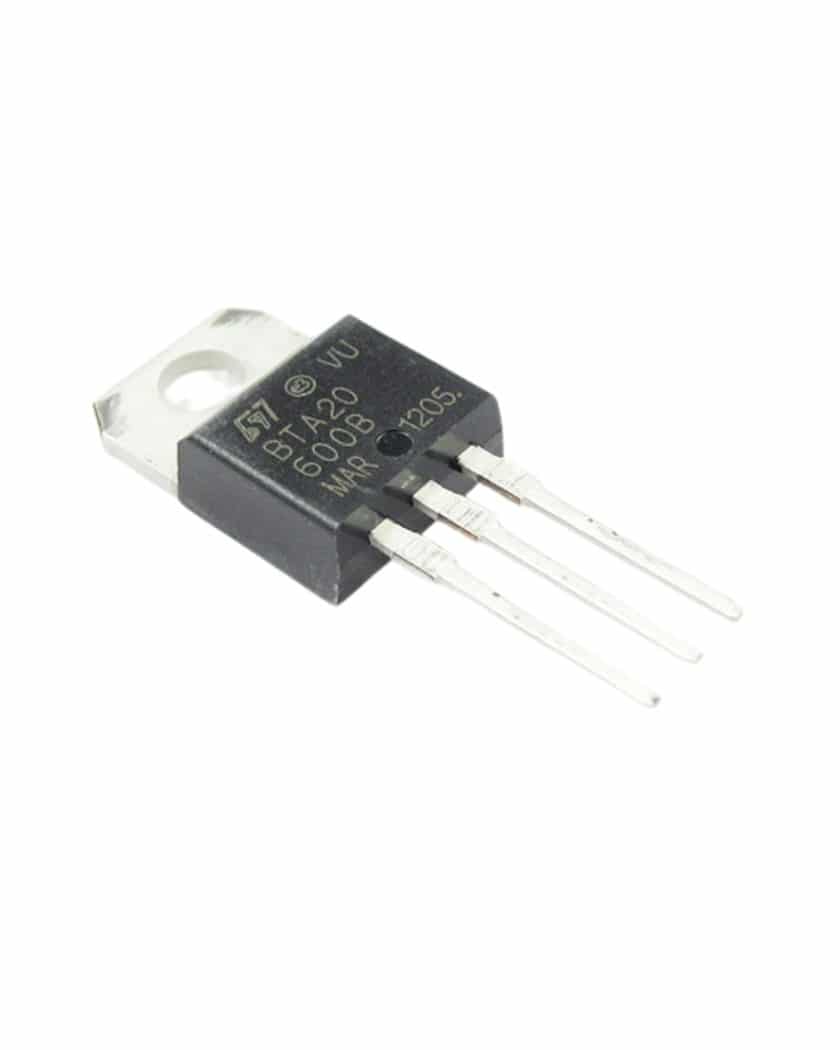

BTA 20 600B Triac

The BTA20-600B Triac is a high-performance, high-current triac designed for efficient AC switching and phase control applications. Capable of handling up to 20A and 600V, this robust component is perfect for use in light dimmers, motor speed controllers, and heater controls. Housed in a durable TO-220 package, the BTA20-600B ensures reliable performance and easy integration into your electronic projects.

Technical Specifications:

• Model: BTA20-600B
• Package: TO-220
• Repetitive Peak Off-State Voltage (Vdrm): 600V
• RMS On-State Current (IT(RMS)): 20A
• Non-Repetitive Surge Peak On-State Current (ITSM): 210A (10ms single half-sine wave)
• Gate Trigger Current (Igt): 50mA (max)
• Gate Trigger Voltage (Vgt): 1.3V (max)
• Holding Current (Ih): 50mA (max)
• On-State Voltage Drop (Vtm): 1.5V (max) at IT(RMS)
• Critical Rate of Rise of On-State Current (di/dt): 50A/µs (max)
• Operating Temperature Range: -40°C to +125°C

Features:

• High Current Capacity: Supports continuous RMS on-state current up to 20A.
• High Voltage Rating: Withstands repetitive peak off-state voltages up to 600V.
• Robust Design: High surge current capability for reliable performance.
• Sensitive Gate: Low gate trigger current for easy control by microcontrollers and other low-power devices.
• Versatile Applications: Suitable for light dimmers, motor speed controllers, heater controls, and more.
• Easy Integration: TO-220 package for straightforward mounting and reliable integration into your projects.

Upgrade your AC switching and control applications with the BTA20-600B Triac, offering robust performance and easy integration into various electronic projects.

Package includes:

• 1x BTA 20 600B Triac
