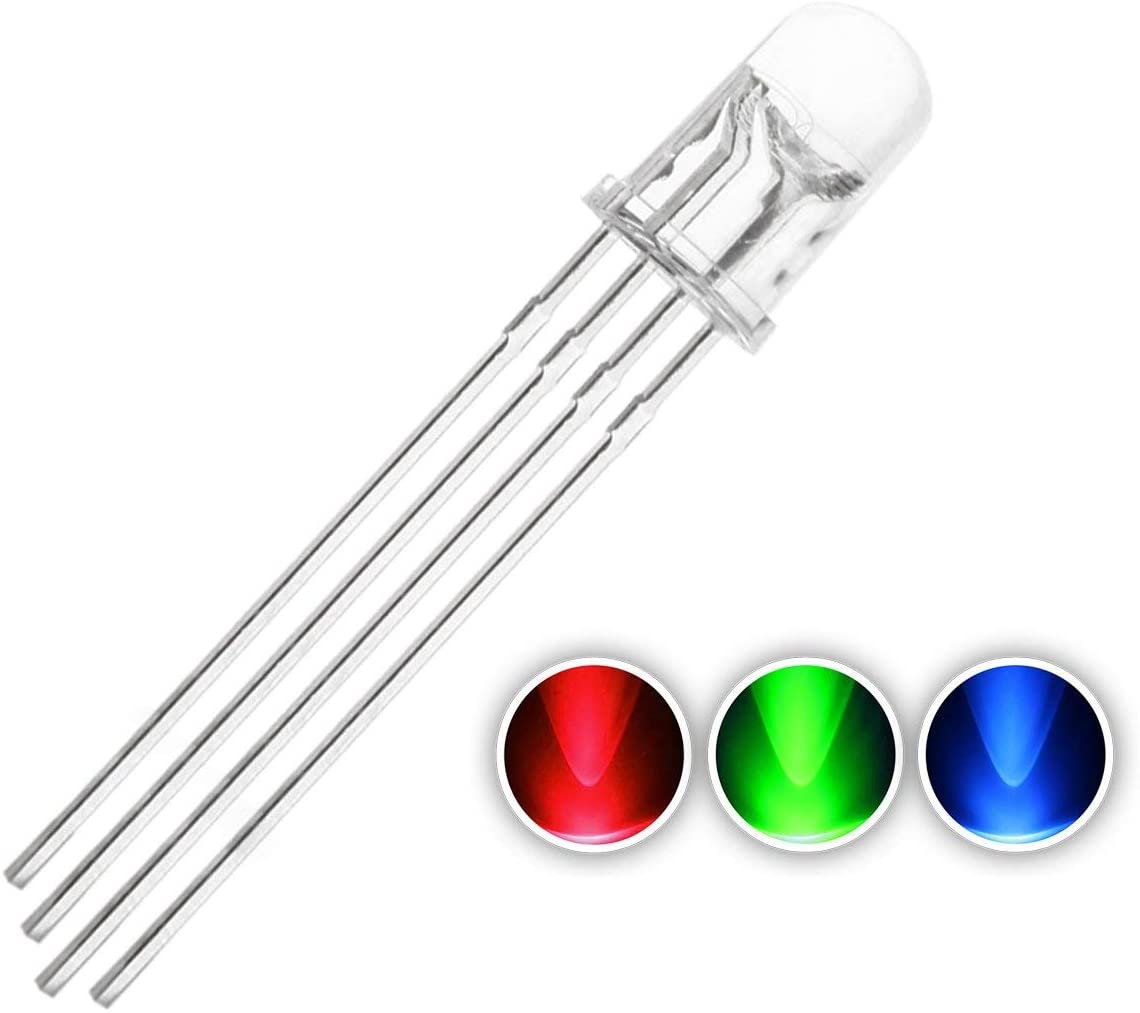

LED RGB 5mm 4 Pins

LED RGB 5mm 4 Pins is Tri-color LEDs with red, green, and blue emitters, in general using a four-wire connection with one common lead (anode or cathode). These LEDs can have either common positive or common negative leads. Others, however, have only two leads (positive and negative) and have a built-in a tiny electronic control unit.

Technical details

• Red Vf: 1.8 to 2.1V
• Green Vf: 3.0 to 3.2V
• Blue Vf: 3.0 to 3.2V
• Red color: 620-625 nm
• Green color: 520-525 nm
• Blue color: 465-470 nm
• Red brightness @ ~20mA: 600-800 mcd
• Blue brightness @ ~20mA: 800-1000 mcd
• Green brightness @ ~20mA: 1500-2000mcd

package includes

1 x LED RGB 5mm 4 Pins
