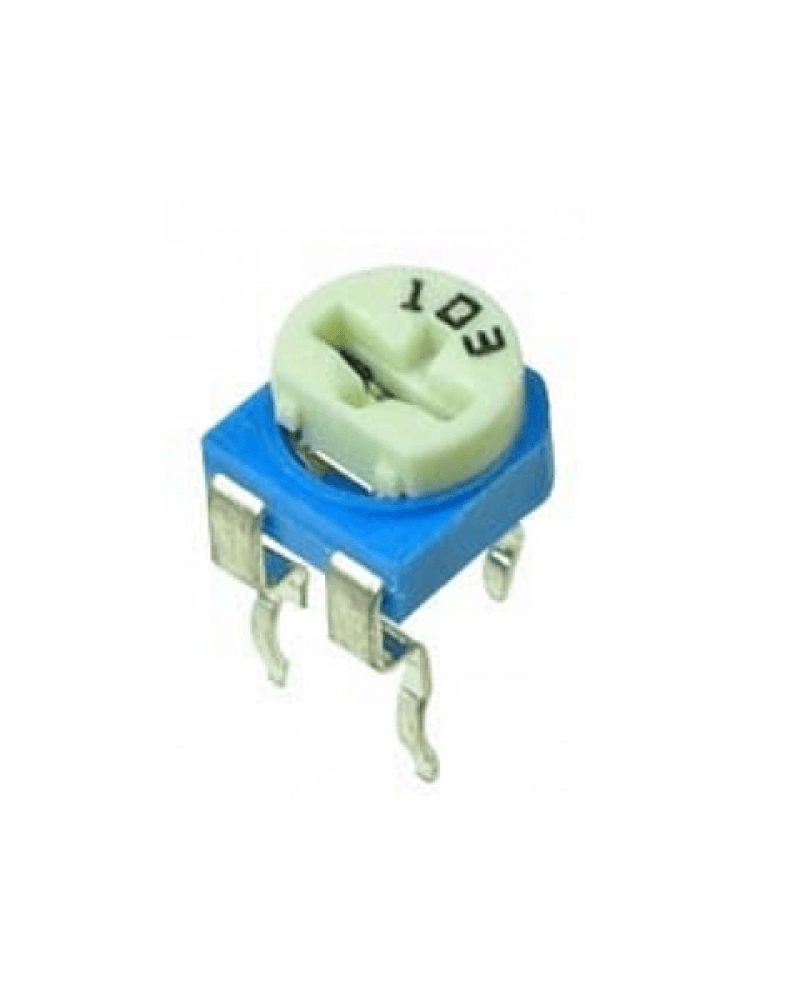

10KΩ Variable Resistor
₵0.60
Preset 10K Ω (ohm) (Variable Resistor) Cermet preset is a compact variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminals varies as the preset is rotated. Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated.
1040 in stock
Preset 10K Ω (ohm) (Variable Resistor) Cermet preset is a compact variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminals varies as the preset is rotated. Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated.
Specifications:
- Track Resistance: 10Kohm
- of Turns: 1
- Resistance Tolerance: ± 10%
- Temperature Coefficient: ± 100ppm/°C
- Potentiometer Mounting: Through Hole
- Adjustment Type: Top
- Contact Resistance Variation +: 1%
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.5mm
- Operating Temperature Range: -55°C to +125°C
- Resistance: 10Kohm
- Resistor Element Material: Variable Rotary Cermet
Package Includes
10k Ω (Ohm) (Variable Resistance)
