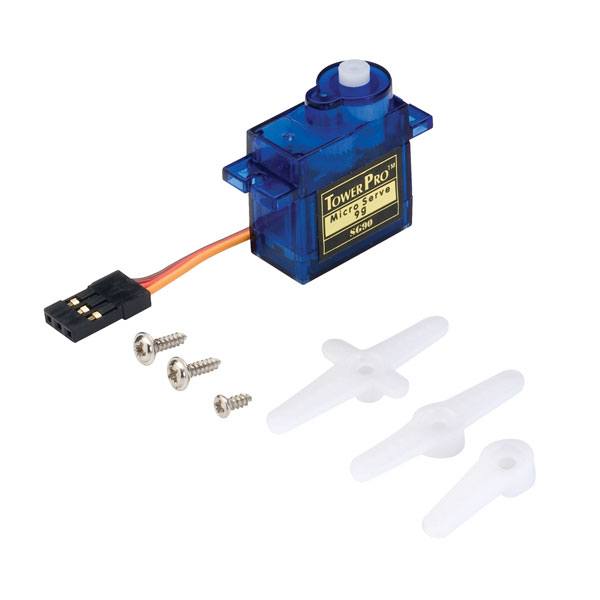

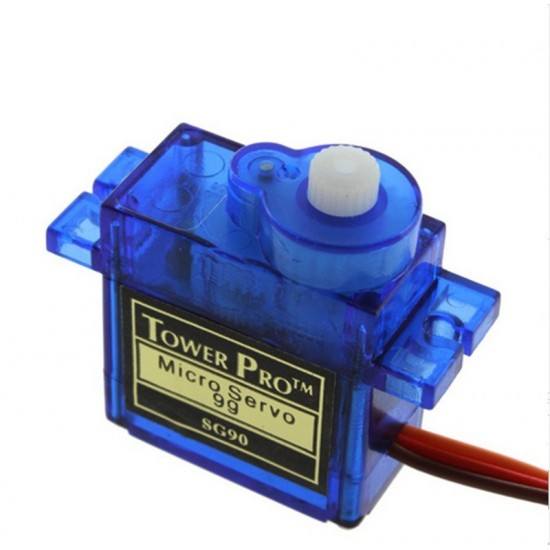

SG90 Servo Motor is the most popular 9g servo in the world of robotics and drones, SG90 digital servo is the new version of SG90 anaglo servo.
Specifications:
| Model: | SG90 Servo Motor |
| Control System: | PPM |
| Working Frequence: | 1520μs / 50hz |
| (RX) Required Pulse: | 3.3 ~ 5 Volt Peak to Peak Square Wave |
| Operating Voltage: | 4.8 ~ 6 V DC Volts |
| Operating Speed (4.8v): | 0.15 Sec/60 Degrees |
| Operating Speed (6v) | 0.12 Sec/60 Degrees |
| Stall Torque (4.8v): | 1.3kg/cm |
| Stall Torque (6v): | 1.5kg/cm |
| Motor Type: | Brushed DC Motor |
| Gear Type: | Plastic Gears |
| Case Material: | Plastic |
| Programmable: | NO |
| Connector Wire Length: | 24.0cm (9.4 inch) |
| Dimensions: | 23 x 11.5 x 24mm |
| Weight: | 9 grams |
