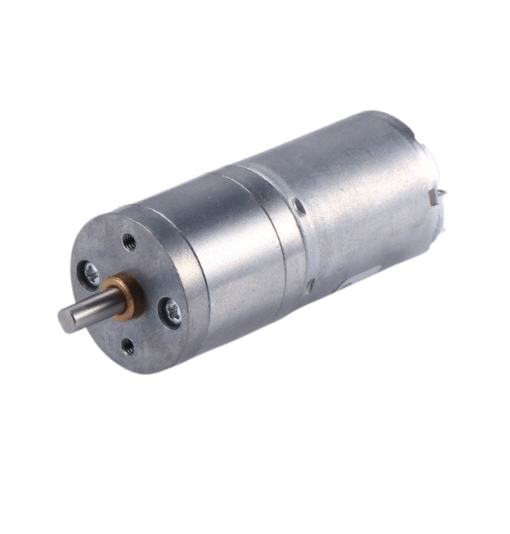

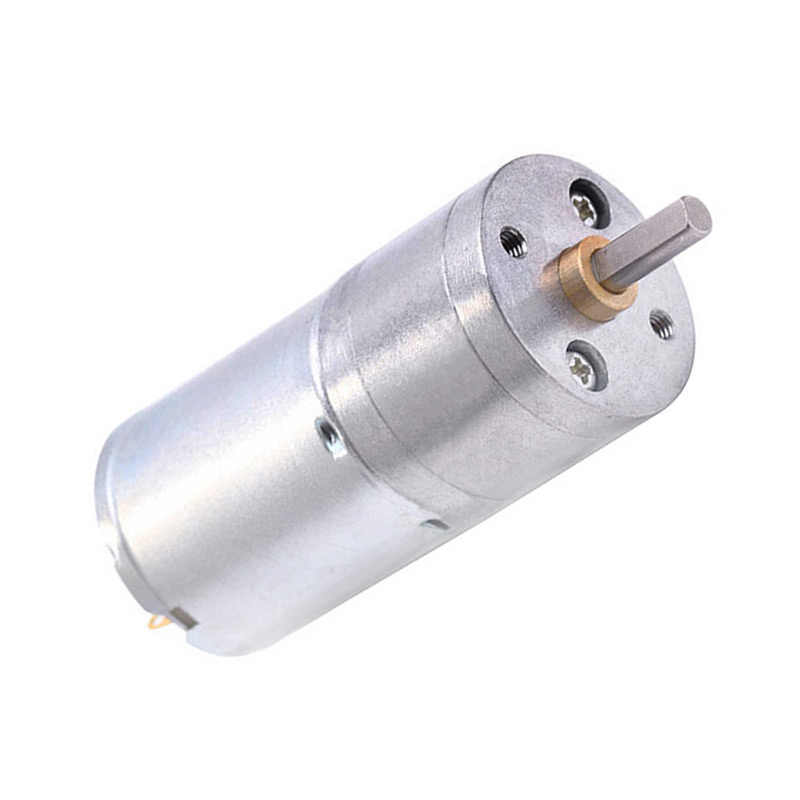

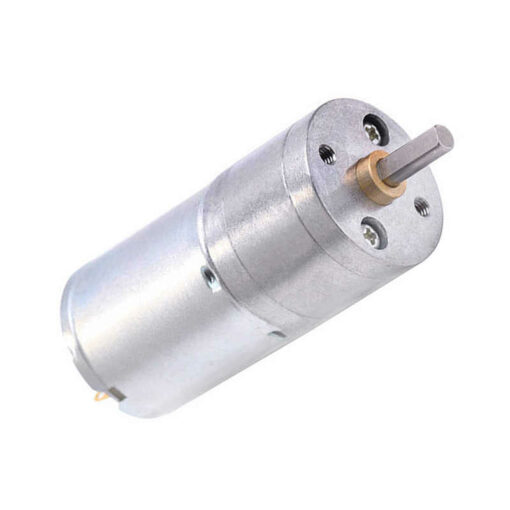

Gear Motor 9V 77rpm
₵109.00
Geared DC motors can be defined as an extension of DC motor. A geared DC Motor has a gear assembly attached to the motor. The speed of the motor is counted in terms of rotations of the shaft per minute and is termed as RPM. The gear assembly helps in increasing the torque and reducing the speed. Using the correct combination of gears in a gear motor, its speed can be reduced to any desirable figure. This concept where gears reduce the speed of the vehicle but increase its torque is known as gear
110 in stock
🚚 Nationwide Delivery 💳 Secure Payment (MTN, Vodafone, Visa) 🧰 100% Original ComponentsGeared DC motors can be defined as an extension of DC motor. A geared DC Motor has a gear assembly attached to the motor. The speed of the motor is counted in terms of rotations of the shaft per minute and is termed as RPM. The gear assembly helps in increasing the torque and reducing the speed. Using the correct combination of gears in a gear motor, its speed can be reduced to any desirable figure. This concept where gears reduce the speed of the vehicle but increase its torque is known as gear reduction.
Technical Specifications
- 1. Operating voltage: between 3 V and 9 V
- 2. Nominal voltage: 6 V
- 3. The free-run speed at 6 V: 77 RPM
- 4. Free-run current at 6 V: 80 mA
- 5. Stall current at 6V: 900 mA
- 6. Stall torque at 6V: 10 kg-cm
- 7. Gear ratio: 1:78
- 8. Reductor size: 23 mm
- 9. Weight: 90 g
Package Includes:
- 1. High-Quality High Torque Metal Gear 3-9V DC Gear Motor 77rpm/min
