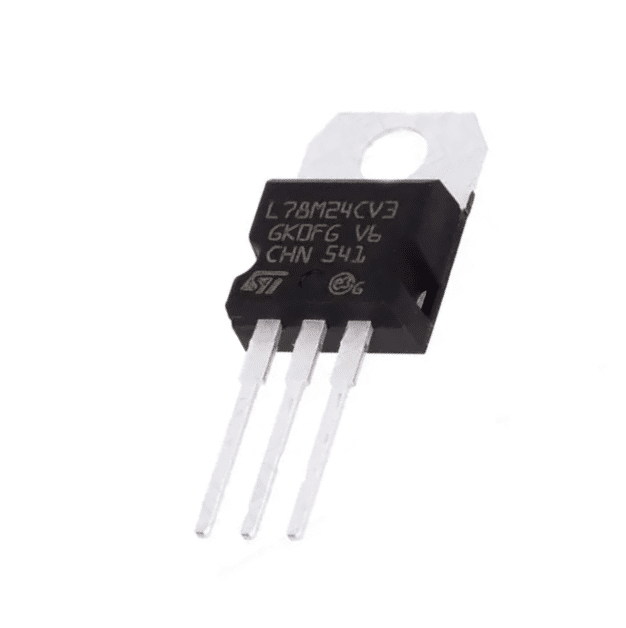

LM7824 Voltage Regulator – 24V Fixed Output

The LM7824 is a reliable and efficient linear voltage regulator designed to provide a stable 24V output. This regulator is capable of delivering up to 1.5A of current with excellent line and load regulation. It is ideal for a wide range of applications, including power supplies, industrial equipment, and other electronic devices that require a consistent 24V power source.

Technical Specifications:

• Model: LM7824
• Output Voltage: 24V (fixed)
• Output Current: 1.5A (max)
• Input Voltage: 26.5V to 40V
• Line Regulation: 0.01%/V (typical)
• Load Regulation: 0.1% (typical)
• Dropout Voltage: 2V (typical)
• Temperature Range: 0°C to +125°C
• Package Type: TO-220

Features:

• Fixed Output Voltage: Provides a stable 24V output.
• High Current Capability: Delivers up to 1.5A of output current.
• Excellent Regulation: Maintains a stable output voltage under varying input and load conditions.
• Thermal Overload Protection: Shuts down the regulator if the internal temperature exceeds safe limits.
• Short-Circuit Protection: Protects against output short circuits.
• Safe Operating Area Protection: Ensures reliable operation under all conditions.

Applications:

• Power supplies
• Industrial equipment
• Fixed voltage power sources
• Electronic devices requiring a stable 24V supply
• Battery chargers
• Communication equipment

The LM7824 Voltage Regulator is a robust and efficient solution for providing a stable 24V power supply in various electronic applications. Its dependable performance and protective features make it an essential component for your power regulation needs.

Package includes:

• 1x LM7824 Voltage Regulator – 24V Fixed Output
