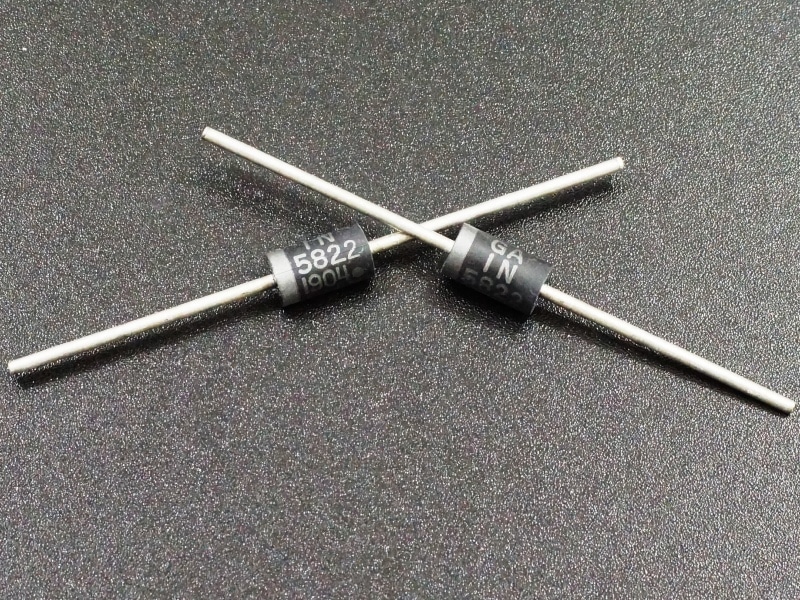

1N5822 Schottky Diode 5pcs per pack

Schottky diodes have very low forward drop voltage V_{F, making} them ideal for fast switching applications at lower current ratings. 1N5822 has a forward voltage drop of a minimum of 0.525 V, requiring a 0.525 V to conduct in a forward-biased direction. The 1N5822 has a maximum average forward rectified current IF_(AV) of 3A. The maximum repetitive peak reverse voltage V_RRM for 1N5822 is 40V.

Applications of 1N5822

• Low voltage high-frequency inverters
• Freewheeling
• Dc/dc converters
• detect signals
• Polarity protection applications
• radio frequency (RF) applications
• logic circuits, due to fast switching
• Schottky diodes are used in switched-mode power supplies

1N5822 Specifications

• IF_(AV) 3.0 A
• V_RRM 20 V, 30 V, 40 V
• IF_SM 80 A
• V_F 0.475 V, 0.500 V, 0.525 V
• TJ _max. 125 °C
• Package DO-201AD
