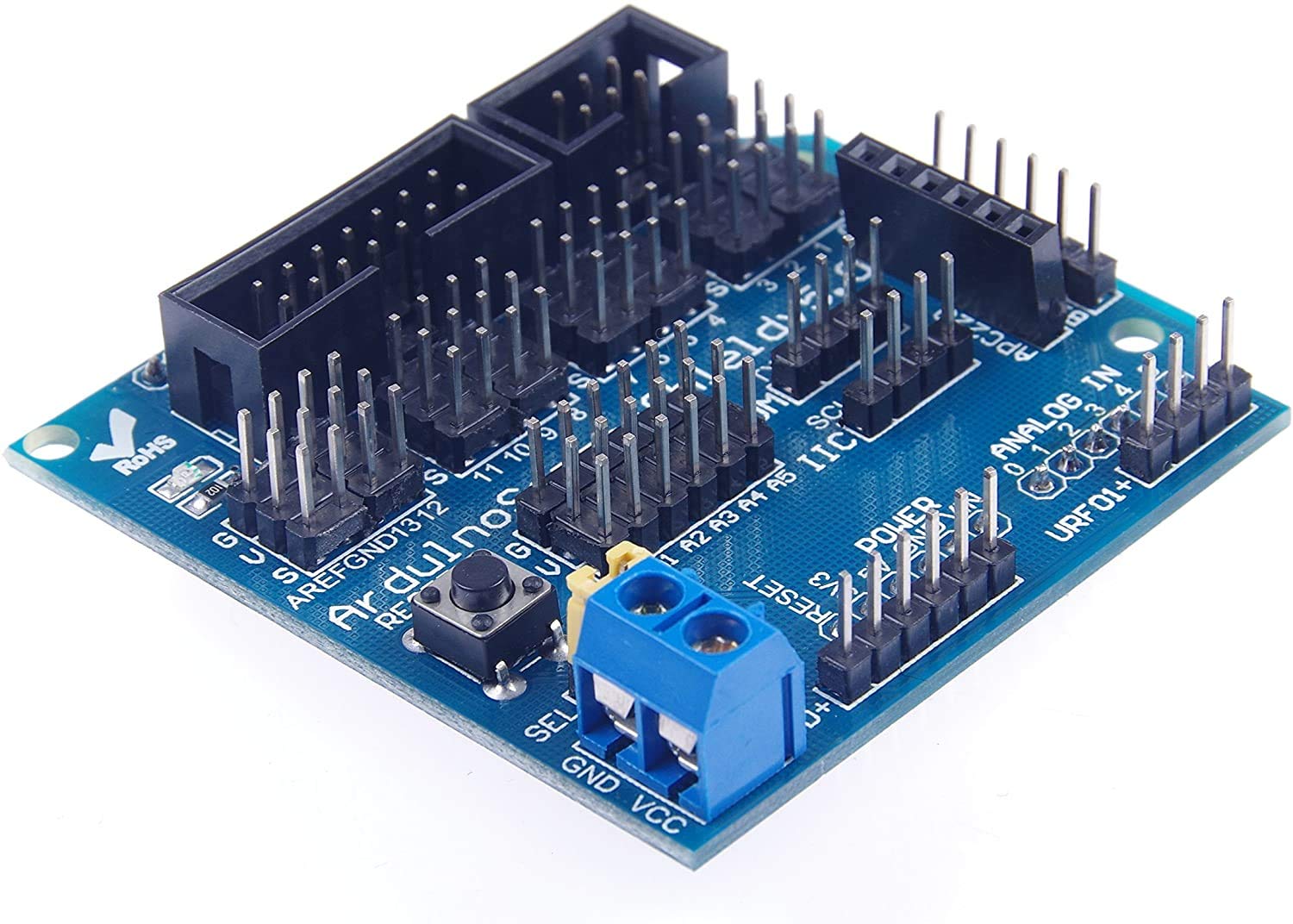

V5.0 Sensor Shield for Arduino Uno R3

The Arduino I/O Expansion Shield provides an easy way to connect sensors, servos and RS485 device to Arduino board. It expands Arduino’s Digital I/O and Analog Input Pins with Power and GND. It also provides separate PWM Pins which are compatible with standard servo connector. Another unique feature is that the I/O shield has a build-in RS485 converter which allows Arduino communicating with RS485 devices. The communication socket provides an extremely easy way to plug a wireless module such as APC220 RF module and DF-Bluetooth module. It has an individual power input for Servos. A servo power jumper allows user to select using external power or internal power to drive the Servos.

Specification:

1. PIN13 LED Pilot
2. Digital IO Ports D0-D13
3. Analog IO Ports A0-A5
4. Reset Button
5. Power In
6. Power LED
7. SD Card Interface
8. Ultrasonic Interface
9. RS232 Interface(TTL)
10. Bluetooth Interface
11. APC220 Interface
12. IIC Interface
13. 12864 LCD Parallel Interface
14. 12864 LCD Serial Interface

Package included: 1 x V5.0 Sensor Shield
