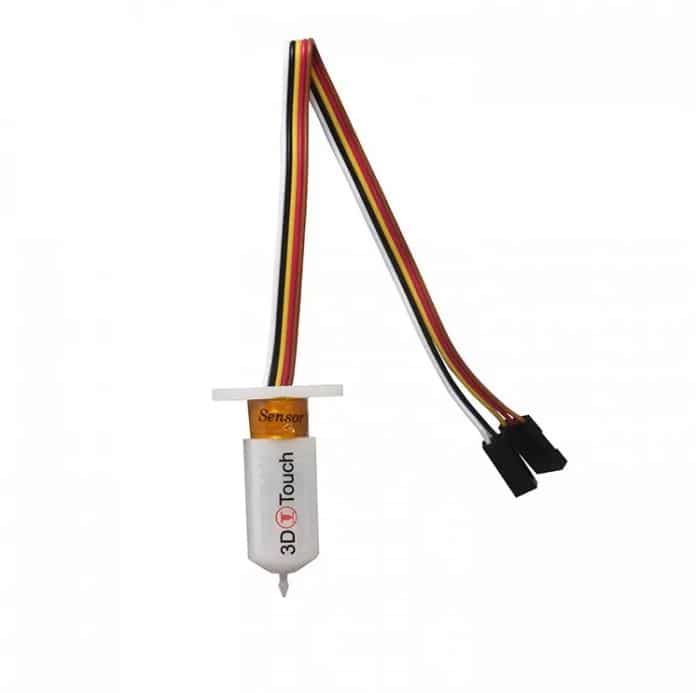

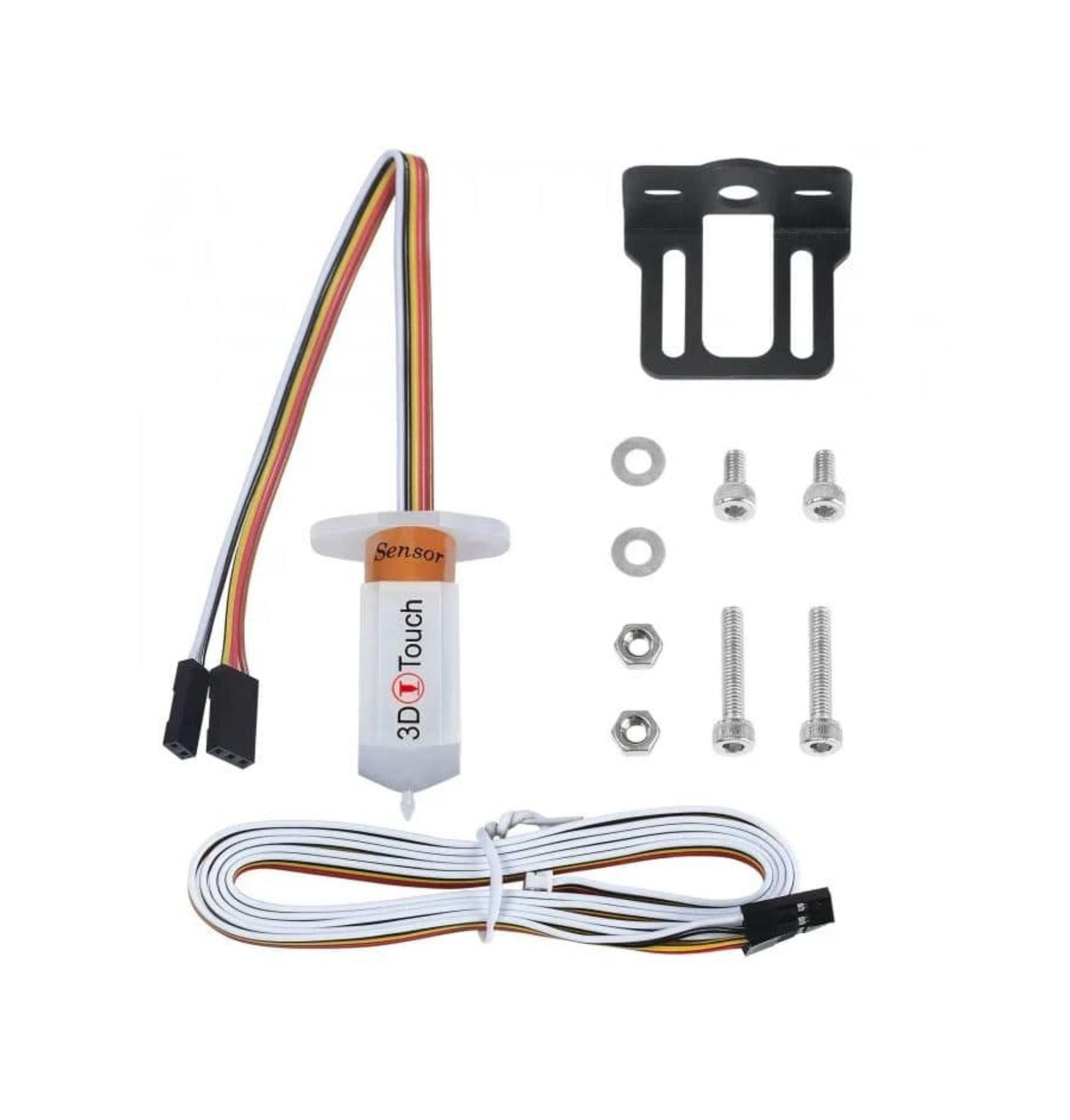

Geeetech 3D Touch V3.2 Auto-Leveling Sensor

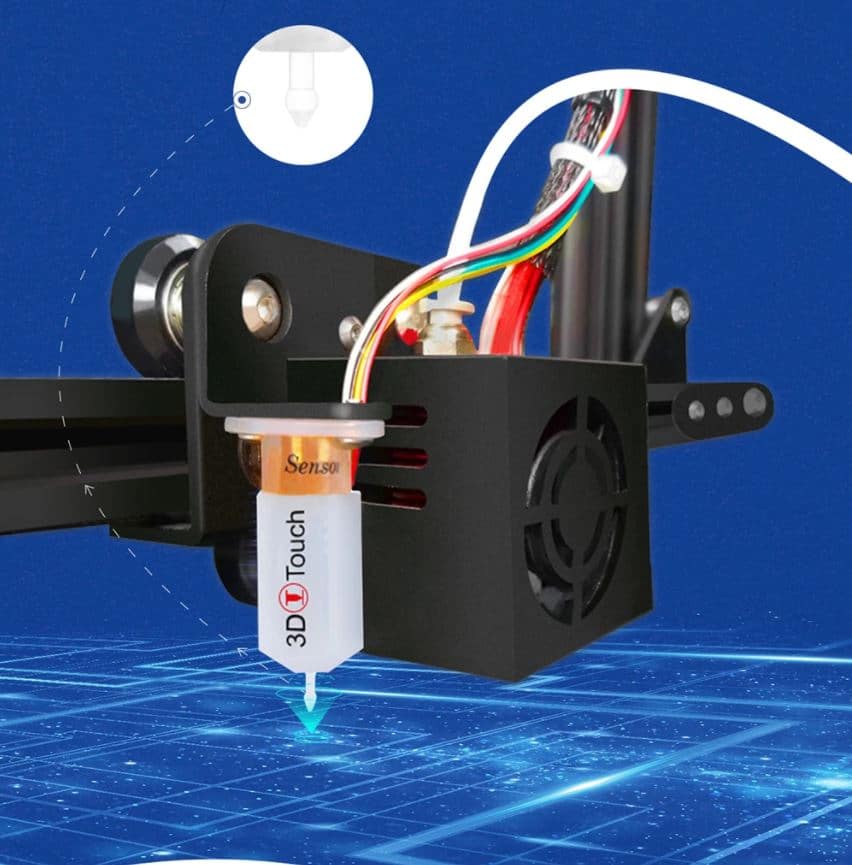

3D Touch V3.2 is the new generation hotbed automatic leveling accessory of FDM 3D printer. Built by the latest technology, it can accurately measure the inclination of the hotbed. It can be used for hotbeds made of glass, wood, metal, etc. Users no longer need to manually level the hotbed, bringing users a simpler and faster hot bed leveling experience, and improving the printing success rate and printing accuracy.

Equipped with new structural design for higher precision, 3D Touch V3.2 can be widely used in various FDM 3D printers, it is a necessary accessory for 3D printers;

Wiring

3-pin: Brown (-, GND), Red (+5V), Orange (control signal)

2-pin: Black (-, GND), White (Z min)

Feature：

• New structural design, higher precision
• High precision, accuracy deviation is 0.005mm
• Suitable for various materials hotbeds
• Automatic detection after power on
• Abnormal alarm
• More stable and reliable
• Intelligent measurement
