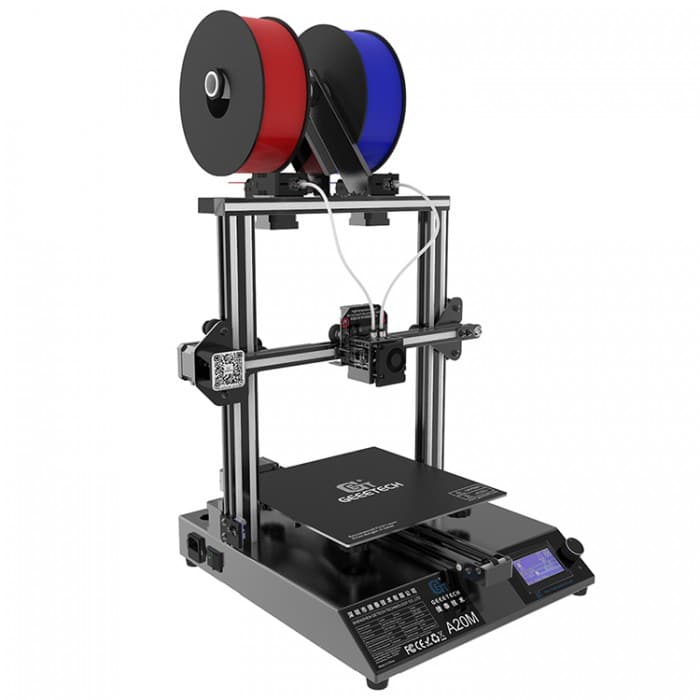

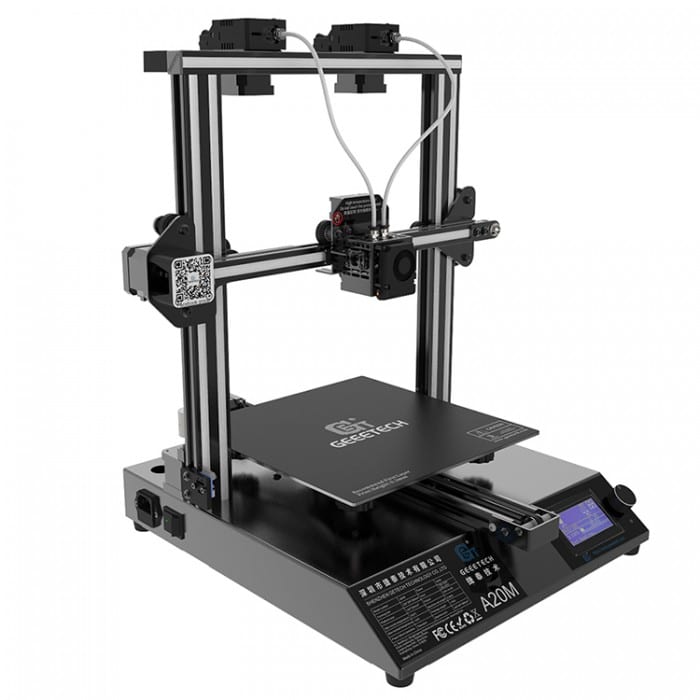

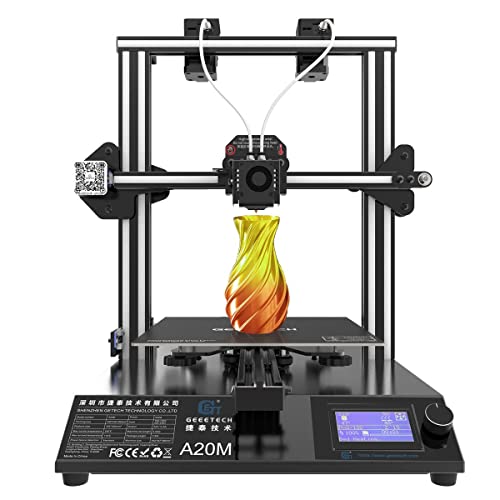

Geeetech A20M 3D printer, adopting open source GT2560 control board, delivers mix-color objects and greatly enriches your 3D printing life. Keeping the good performance of Geeetech’s portfolio of 3D printers, it aims to provide users with quality printout and satisfactory printing experience.
The modularized design makes it easy to build the printer in 3 steps. Its classic blue and black color combo imparts a touch of simplicity and excellence, embodying Geeetech’s commitment to quality products.
With its build volume as 255*255*255mm³and the classic Prusa I3 3D printers’ gantry structure, A20M makes the best of the building platform and enables you to view the printing details in 360°. Printing at the accuracy of 0.1mm, it delivers objects with smooth surface finish, clear angles and strong structure. Besides, A20M comes with filament detector and break-resuming capability, greatly enhancing your 3D printing experience.
Its well-designed extruder greatly reduces the risk of clogging or leaking. A20M extruder cover features 360°ventilation design, greatly enhancing the dissipation of heat and guaranteeing excellent printing quality.
Printing parameters
Printing technology: FDM
Build volume: 255*255*255 mm³
Printing accuracy: 0.1mm
Positioning precision: X/Y：0.011mm. Z： 0.0025mm
Printing speed: 120 mm/s (max)
Filament diameter: 1.75mm
Nozzle diameter: 0.4mm
Filament: ABS / PLA/wood-polymer/PVA/HIPS/PETG, etc.
Temp:
Max temp for hotbed: 100℃
Max temp for extruder: 250℃
Software resources
Operating system: Windows, MAC, Linux
Control software: EasyPrint 3D, Repetier-Host, Simplify 3D, Cura, Slic3r, etc.
Remote App: EasyPrint 3D App (with an optional 3D WiFi module)
File format: .STL, G.code
Electrical
Power supply: Input: 110V/220V
Output: DC 24V/15A
Connectivity: Wi-Fi (with an optional 3D WiFi module), USB cable,
SD card (support stand-alone printing)
Display screen: LCD 12864
Mechanical:
Frame: Aluminum profile
XY Rods: Wear-resistant aluminum profile
Z axis: Lead screw
Stepper Motors: 1.8°step angle with 1/16 micro-stepping
Physical Dimensions & Weight
Machine Dimension: 442 x 447 x 480mm³
Shipping box Dimension: 510 x 495 x305 mm³
Machine Net weight: 8.8kg
Machine Gross weight: 11.0 kg
