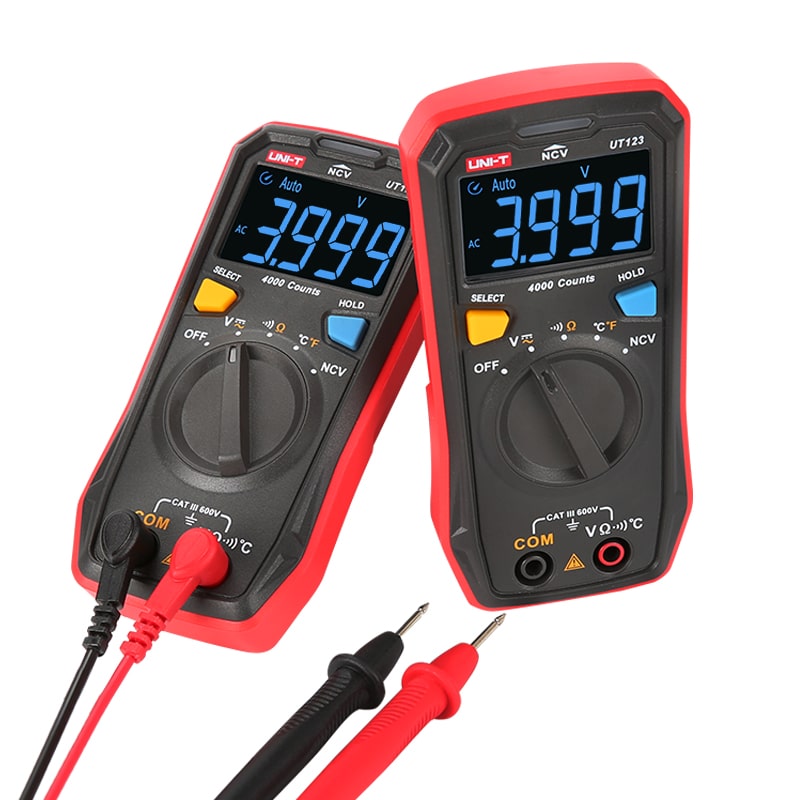

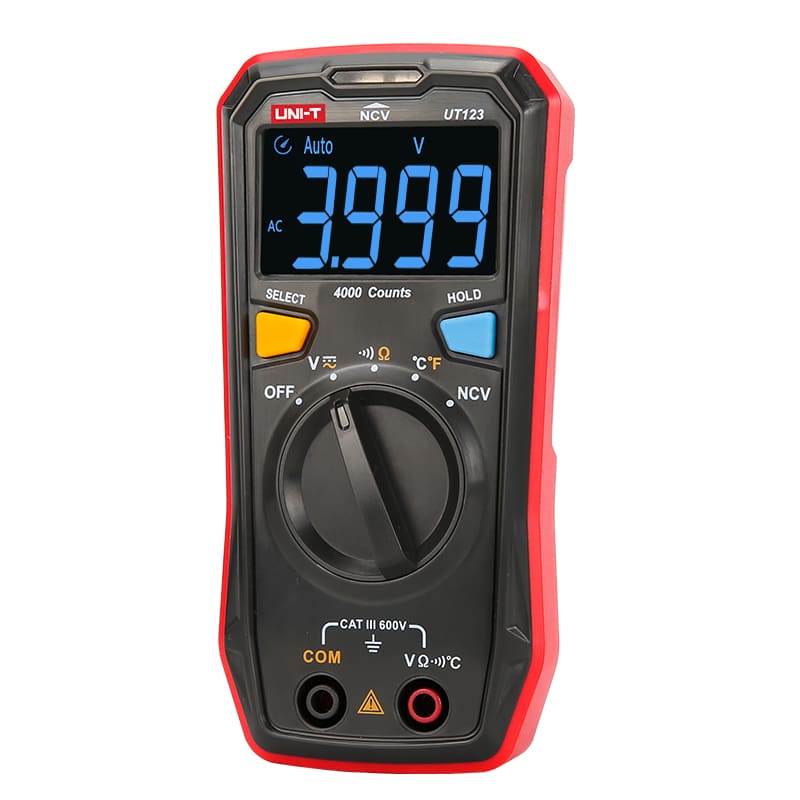

The UT123 is a pocket-sized residential multimeter designed for home use. The compact structure makes it easy to hold in one hand, and the EBTN screen allows users to obtain clear readings at maximum angle, it is also great for working in dark environments.
Features
The UT123 is a pocket-sized residential multimeter designed for home use. The compact structure makes it easy to hold in one hand, and the EBTN screen allows users to obtain clear readings at maximum angle, it is also great for working in dark environments.
*NCV voltage values above are tested at contact distance (0cm) from the test object, it is used for reference only. When meter is at some distance away from test object, NCV indication light may change to the weaker voltage color
Tech. Spec
| Specifications | Range | UT123 |
| DC Voltage | 4V/40V/400V/600V | ±（0.5%＋2） |
| AC Voltage | 4V/40V/400V/600V | ±(1.0%+3) |
| Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/20MΩ | ±(0.8%+2) |
| Temperatue | –40℃～ 300℃/–40℉～ 572℉ | ±4℃ |
| Features | ||
| Display Count | 4000 | |
| Autol Range | √ | |
| NCV | √ | |
| Continuity Test | √ | |
| Acousto-optic indication(NCV/continuity/battery power) | √ | |
| Low Battery Indication | ≤2.7V | √ |
| Data Hold | √ | |
| Auto Power Off | 15Min | √ |
| Operation Temperature | 0℃～40℃ | |
| Safety | CAT III 600V | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 44mm × 26mm | |
| Product color | Red and grey | |
| Product net weight | 130g | |
| Product size | 130mm x 65m x 28mm | |
| Standard accessories | Batteries, Thermocouple | |
| Standard individual packing | Gift Box, Manual | |
| Standard quantity per carton | 60pcs | |
| Standard carton measurement | 480mm x 340mm x 325mm | |
| Standard carton gross weight | 15.5kg | |
Applications:
It can work in dark environment.
