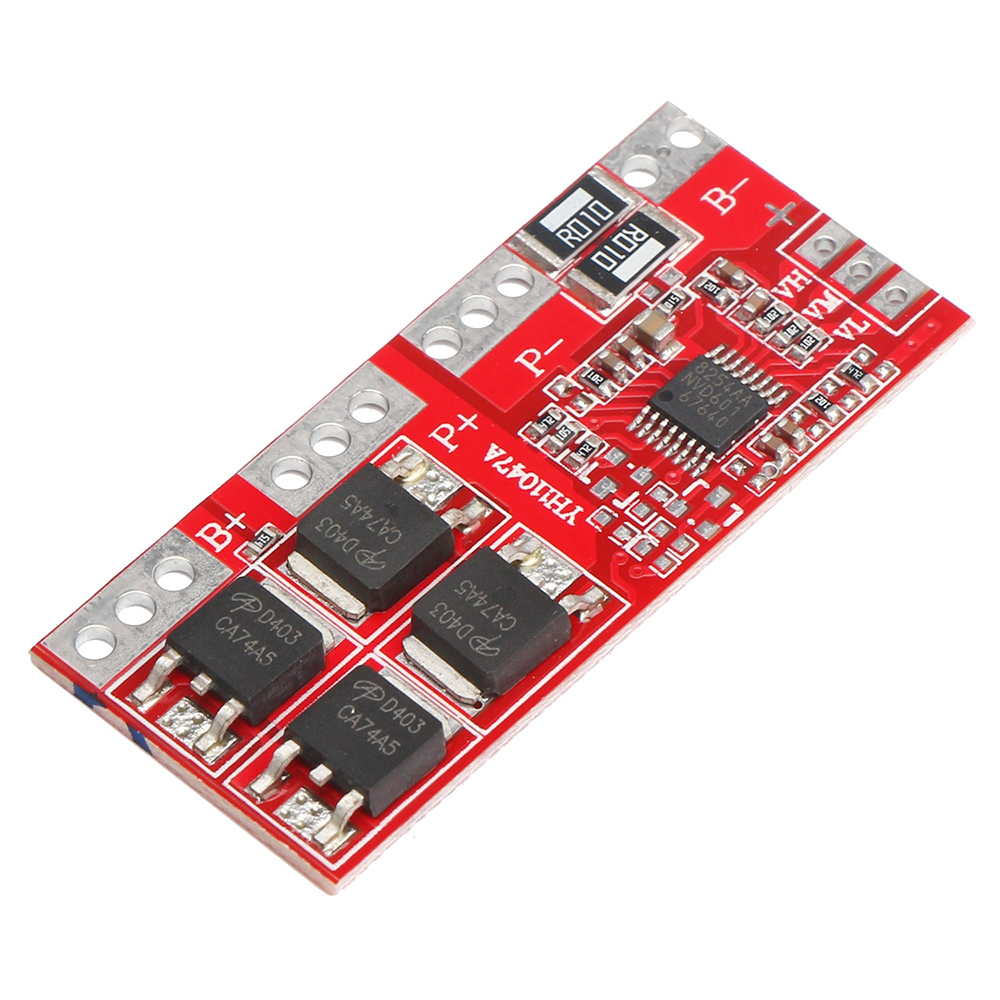

This is a Lithium Battery charger and Protection Board that provides overcharge protection, over-discharge protection, short circuit protection, and over-current protection. It is suitable for a 4-series lithium battery protection board with a voltage of 14.4V/14.8V/16.8V and a high current battery charger with a capacity of 15A.
Technical specification
- Module Name:Â 4-series lithium battery protection board
- Overcharge detection voltage: 4.25 ± 0.025V
- Overcharge release voltage: 4.15 ± 0.05V
- Over-discharge detection voltage: 2.50 ± 0.08V
- Over discharge release voltage: 3.00 ± 0.1V
- Overcurrent current :20~30A
- Working current:Â 15AÂ (natural cooling 10A, 15A if plus heat sink , Max. instantaneous current: 30A)
- Main features: over charge protection, over-discharge protection, short circuit protection, over-current protection.
- Working temperature: -40 to +85 Celsius ( please enhance heat dissipation when ambient temperature is over high)
- Wiring: Welding Output

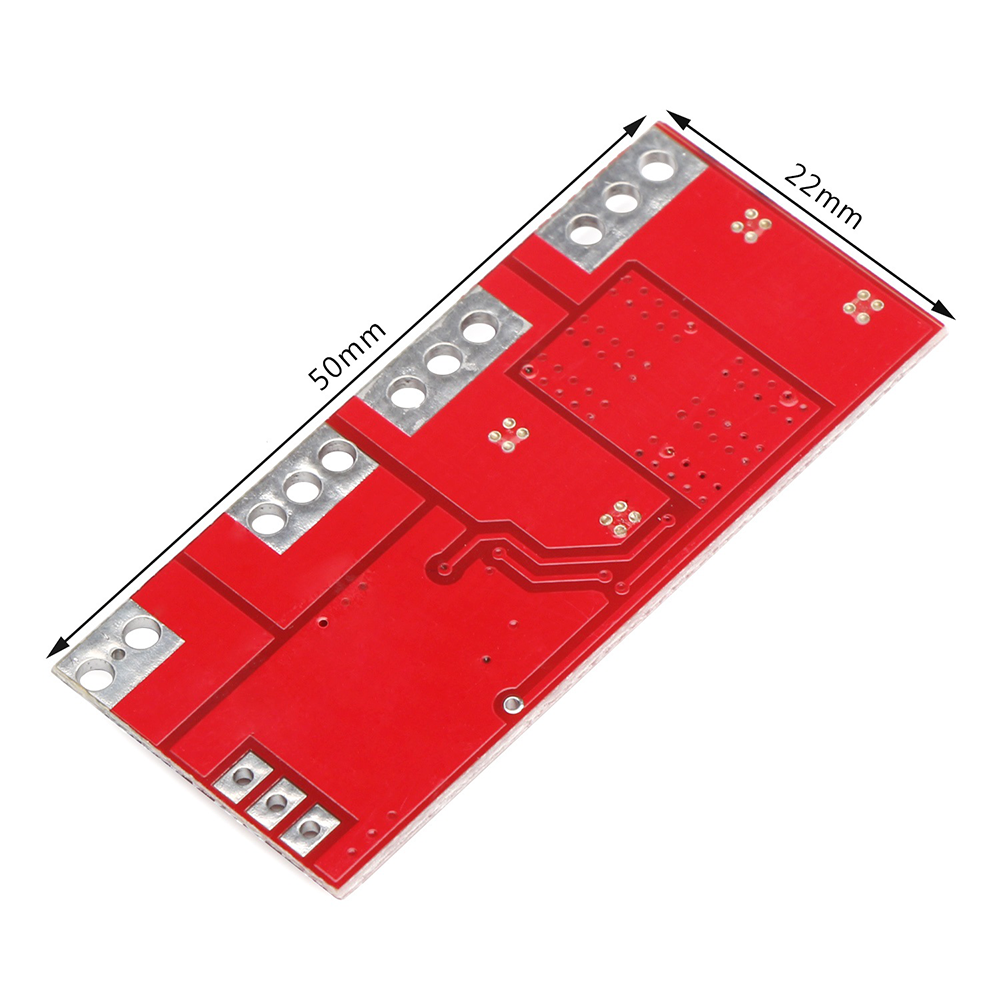

- No part design on the back, can be attached to the heat sink.
Package include:
- 1 x 4 Series Lithium Battery Protection Board 14.8V 16.8V Large Current 30A
