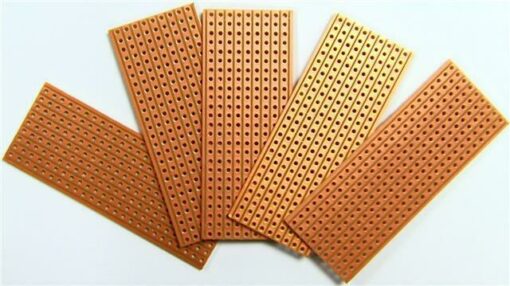

Single Sided Stripboard PCB Board 6.5 x 14.5cm Brown

The Single Sided Stripboard PCB Board 6.5×14.5cm is a versatile and high-quality prototyping board designed for developing and testing electronic circuits. This stripboard features a single copper layer with parallel strips of copper tracks on one side, allowing for easy component placement and soldering. The 6.5×14.5cm size provides ample space for medium-sized projects, making it ideal for both hobbyist and professional use.

Technical Specifications:

• Type: Single Sided Stripboard PCB
• Size: 6.5×14.5cm
• Material: Phenolic or Fiberglass substrate
• Copper Thickness: Typically 1oz (35µm)
• Color: Brown
• Drill Hole Diameter: 1.0mm (typical)
• Hole Pitch: 2.54mm (standard)
• Grid Layout: Parallel copper strips for easy component placement
• Surface Finish: Tin-plated or bare copper for easy soldering

Features:

• High-Quality Material: Made from durable phenolic or fiberglass substrate for long-lasting use.
• Single Sided: Features a single copper layer with parallel strips for straightforward soldering.
• Medium Size: 6.5×14.5cm size is perfect for medium-sized electronic projects.
• Standard Hole Pitch: 2.54mm grid layout makes it easy to place and solder components.
• Easy to Use: Ideal for prototyping and testing circuit designs.
• Versatile Application: Suitable for a wide range of electronic projects and DIY applications.

Applications:

• Prototyping and testing electronic circuits
• DIY electronics projects
• Medium-sized circuit designs
• Educational and hobbyist projects
• Custom electronic devices and gadgets

Usage Tips:

1. Component Placement: Arrange and place your components on the stripboard according to your circuit design. Ensure the pins align with the grid layout.
2. Soldering: Use a soldering iron to solder the component leads to the copper strips. Ensure proper solder joints for reliable connections.
3. Cutting Tracks: Use a track cutter or a drill bit to cut the copper strips where needed to isolate different sections of the circuit.
4. Trimming Leads: After soldering, trim any excess component leads to prevent short circuits.
5. Wiring: Use insulated wires to make connections between components if needed. Route the wires neatly to avoid clutter.
6. Testing: Once your circuit is complete, carefully inspect all connections and test your circuit for proper functionality.

The Single Sided Stripboard PCB Board 6.5×14.5cm Brown is an essential tool for any electronics enthusiast, providing a reliable and easy-to-use platform for developing and testing electronic circuits, especially those that benefit from the flexibility of stripboard layout.

Package includes:

• 1x Single Sided Stripboard PCB Board 6.5 x 14.5cm Brown
