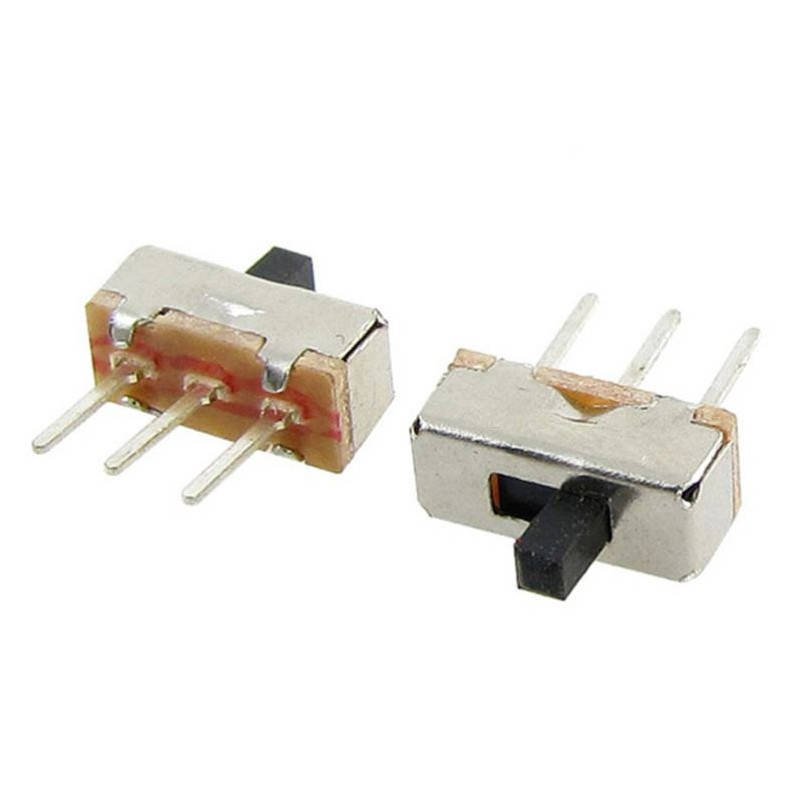

3 Pin Vertical Slide Switch (SS12D00G2)

The SS12D00G2 slide switch is a versatile and compact component ideal for a wide range of electronic applications. Featuring a sleek rectangular body and a smooth sliding mechanism, this switch provides reliable performance for switching between two positions. Its robust construction and easy-to-use design make it perfect for turning devices on and off or toggling between modes in compact electronic devices.

Technical Specifications:

• Model: SS12D00G2
• Type: Slide switch
• Positions: 2-position (ON/OFF)
• Mounting Style: PCB mount
• Terminal Type: Soldering terminals
• Body Material: Durable plastic
• Actuator Type: Metal sliding handle
• Contact Resistance: ≤ 30mΩ
• Insulation Resistance: ≥ 100MΩ
• Operating Temperature Range: -20°C to +85°C
• Electrical Rating: 0.5A at 50V DC

Applications:

• Electronic circuits
• Small electronic devices
• Mode selection
• Power switching

Enhance your electronic projects with the SS12D00G2 slide switch, offering reliable performance and ease of use in a compact form factor.

package include

1 x  3 Pin Vertical Slide Switch (SS12D00G2)
