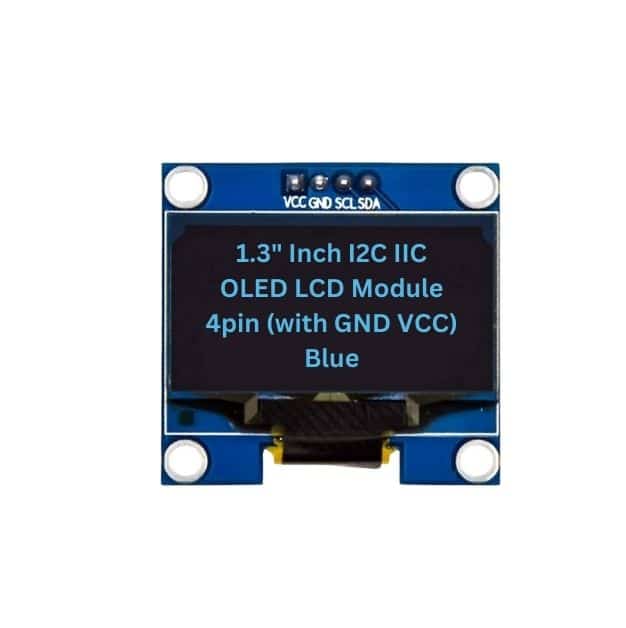

1.3″ Inch I2C IIC OLED LCD Module 4pin- Blue

This 1.3″ I2C OLED Display is an OLED monochrome 128×64 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino.

Technical Details

1. Size: 1.3 inch
2. Resolution: 128 x 64
3. Controlling Chip: SSH1106
4. Driving Voltage: 3.3-5V
5. Operating Temperature: -40~70 celsius
6. Interface Type: IIC
7. Light Color: Blue

Pin mode:

1.GND: Power ground
2.VCC: Power positive
3.SCL: Clock wire
4.SDA: Data wire.+

Package Includes:

1 x 1.3″ Inch I2C IIC OLED LCD Module 4pin- Blue

Oled I2c arduino Uno Circuit diagram

Download the library here https://github.com/winneymj/SH1106/tree/master &  https://github.com/durydevelop/arduino-lib-oled/tree/master/examples
