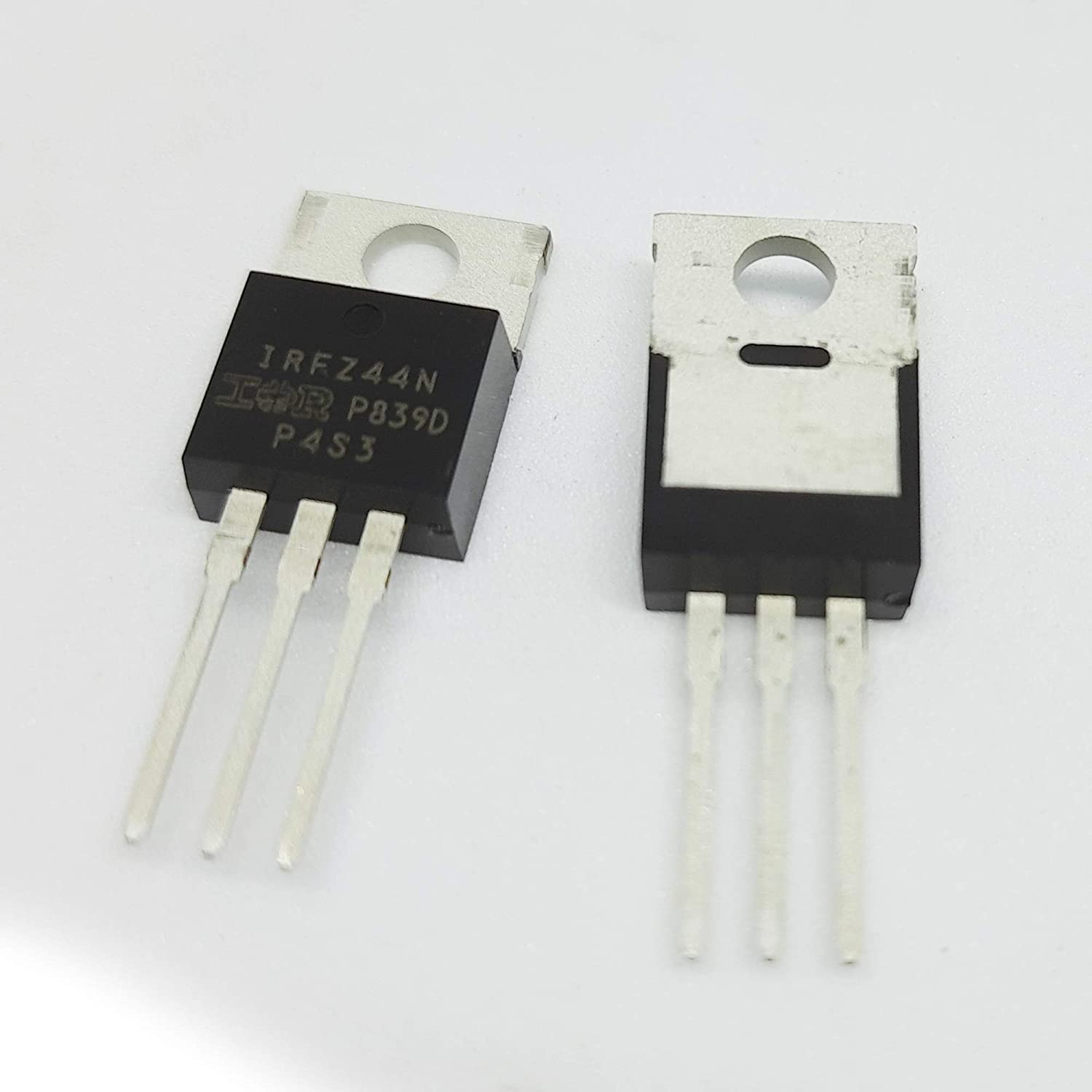

The IRFZ44N is a high-efficiency N-Channel MOSFET designed for high-speed switching and power management applications. This MOSFET is ideal for use in a variety of electronic devices and circuits, including motor controllers, power supplies, and DC-DC converters. With its low on-resistance and high current-carrying capability, the IRFZ44N ensures efficient performance and reliable operation.
Technical Specifications:
- Type: N-Channel MOSFET
- Model: IRFZ44N
- Drain-Source Voltage (Vds): 55V
- Gate-Source Voltage (Vgs): ±20V
- Continuous Drain Current (Id): 49A (at 25°C)
- Pulsed Drain Current (Id, pulse): 160A
- Power Dissipation (Pd): 94W
- Rds(on): 17.5mΩ (at Vgs = 10V, Id = 20A)
- Threshold Voltage (Vgs(th)): 2.0V – 4.0V
- Gate Charge (Qg): 67nC (at Vgs = 10V)
- Operating Temperature Range: -55°C to +175°C
- Package Type: TO-220
Features:
- High Current Capacity: Handles continuous drain current up to 49A.
- Low On-Resistance: Ensures minimal power loss and high efficiency.
- Fast Switching: Suitable for high-speed applications.
- Robust Design: High power dissipation and wide operating temperature range.
- Versatile Applications: Ideal for power management, motor control, and switching circuits.
Applications:
- DC-DC converters
- Motor controllers
- Power supplies
- Battery management systems
- Load switching
- Inverters
Pin Configuration:
- Gate (G): Controls the MOSFET switching.
- Drain (D): Current flows from drain to source when the MOSFET is on.
- Source (S): Current flows out from the source.
Example Circuit:
To use the IRFZ44N MOSFET in a simple switching circuit:
- Connect the Source (S) to the ground of the power supply.
- Connect the Drain (D) to one end of the load (e.g., a motor or LED).
- Connect the other end of the load to the positive power supply.
- Connect the Gate (G) to the output of a microcontroller or a switch through a current-limiting resistor (e.g., 220Ω).
The IRFZ44N MOSFET N-Channel offers a reliable and efficient solution for your high-power switching and control applications, providing robust performance and easy integration into various electronic projects.
Package Includes:
1 x IRFZ44N N-Channel Power MOSFET Transistor
