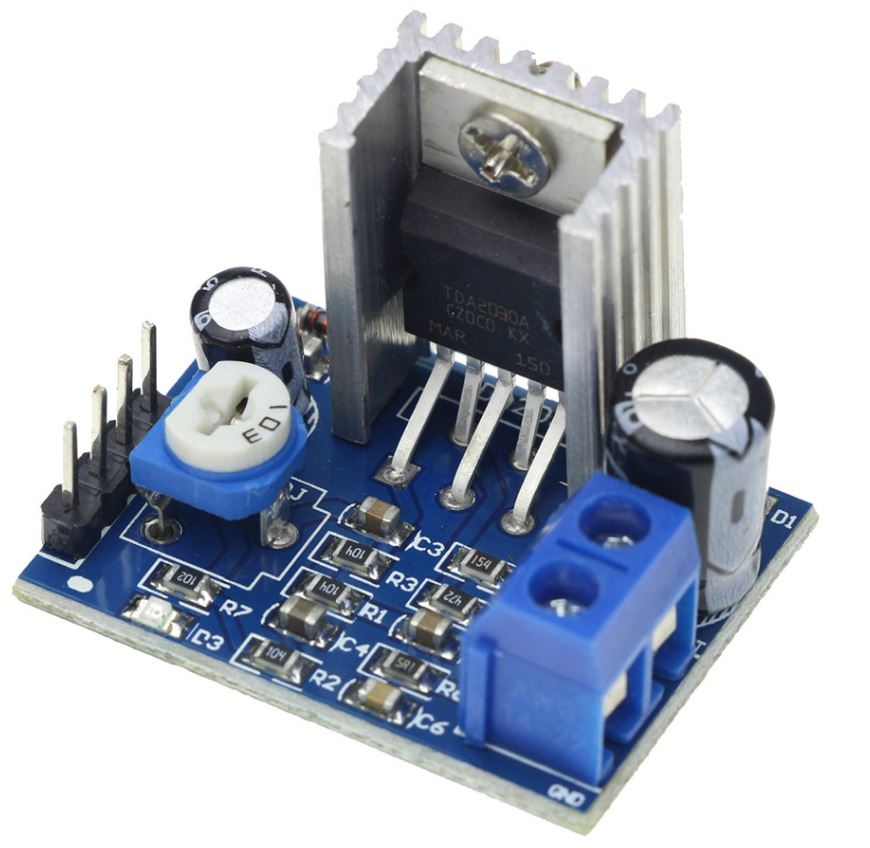

TDA2030 Audio Amplifier Board Module

The TDA2030A Audio Amplifier Board Module is a simple audio amplifier that increases the strength audio signals that pass through it. This audio amplifier amplifies low-power audio signals to a level that is suitable for driving loudspeakers.

Technical Specification:

• Onboard TDA2030A audio power amplifier chip.
• Mono 18 w power amplifier circuit design.
• Socket onboard horn.
• The onboard 10 k adjustable resistance, can adjust the volume of the amplification.
• The onboard power light.
• Chip has lead to the main pin, can directly input audio signal.
• Working voltage: 6 -12 v.
• Board size: 31.6 (mm) x23.2 (mm).

Package Included:
1 x TDA2030 Audio Amplifier Board Module
