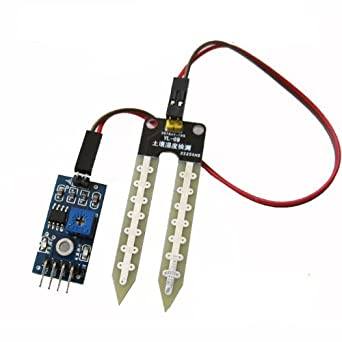

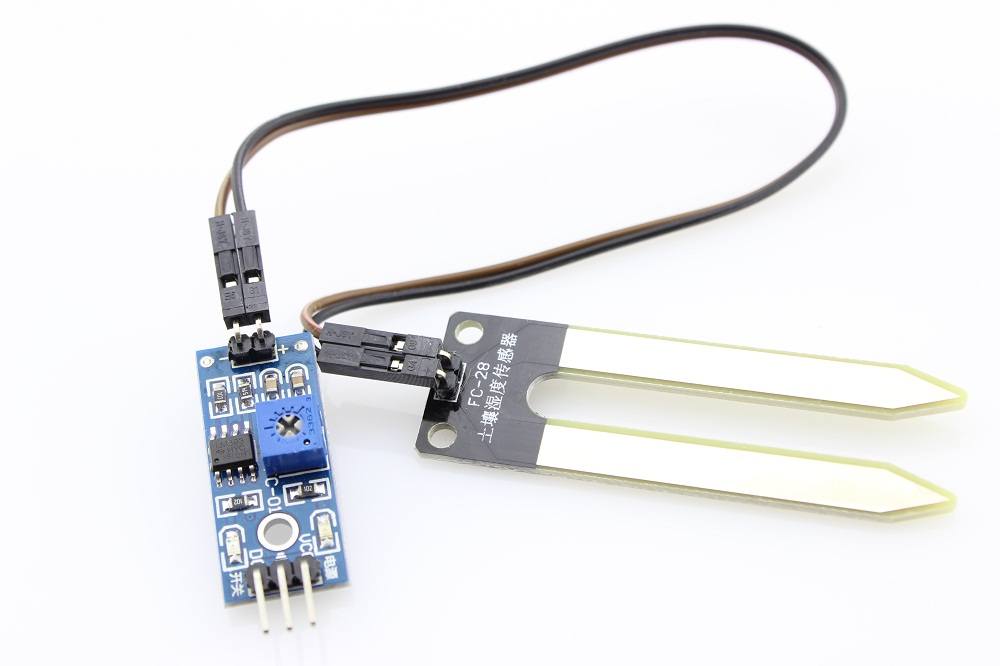

Soil Moisture Sensor Module

The Soil Moisture Sensor Module is an essential tool for monitoring soil moisture levels in gardening and agricultural applications. This sensor helps in determining the moisture content of the soil, allowing for automated irrigation systems or manual watering adjustments to maintain optimal plant health. It is easy to interface with microcontrollers and other control systems, making it ideal for smart gardening, greenhouse automation, and other agricultural projects.

Technical Specifications:

• Operating Voltage: 3.3V to 5V DC
• Output Type: Analog and Digital
• Analog Output: Proportional to the soil moisture level
• Digital Output: Adjustable threshold with potentiometer
• Current Consumption: 15mA (max)
• Probe Material: Corrosion-resistant for longer life
• Module Dimensions: Compact size for easy integration

Pin Configuration:

1. VCC (Power): Connect to the power supply (3.3V to 5V).
2. GND (Ground): Connect to the ground of your power supply.
3. A0 (Analog Output): Outputs a voltage proportional to the soil moisture level.
4. D0 (Digital Output): Outputs HIGH or LOW based on the soil moisture threshold set by the potentiometer.

Features:

• Dual Outputs: Provides both analog and digital outputs for versatile use.
• Adjustable Sensitivity: Onboard potentiometer allows customization of the digital output threshold.
• Corrosion-Resistant Probes: Durable design for longer life and accurate readings.
• Easy to Interface: Standard 4-pin header for straightforward connections to microcontrollers.
• Low Power Consumption: Suitable for battery-powered systems.
• Compact Design: Small form factor for easy integration into various projects.

Applications:

• Automated irrigation systems
• Smart gardening
• Greenhouse automation
• Soil moisture monitoring
• Agricultural research
• DIY electronics projects

Usage Tips:

1. Connecting the Module:
   • Connect the VCC pin to the power supply (3.3V or 5V).
   • Connect the GND pin to the ground of your system.
   • Insert the soil moisture probes into the soil you wish to monitor.
2. Reading the Output:
   • For analog output, connect the A0 pin to an analog input pin on your microcontroller to get a voltage reading proportional to the soil moisture level.
   • For digital output, connect the D0 pin to a digital input pin on your microcontroller to get a HIGH or LOW signal based on the threshold set by the potentiometer.
3. Adjusting Sensitivity:
   • Use the onboard potentiometer to set the moisture threshold for the digital output. Turn the potentiometer until the desired threshold is reached.

The Soil Moisture Sensor Module is a valuable tool for any gardening or agricultural project, providing accurate and reliable soil moisture readings to help maintain optimal plant health. Its easy-to-use design and dual output options make it a versatile component for various automated systems.

Package includes:

• 1x  Soil Hygrometer humidity detection module set
• 6x  Female to female jumper wires
