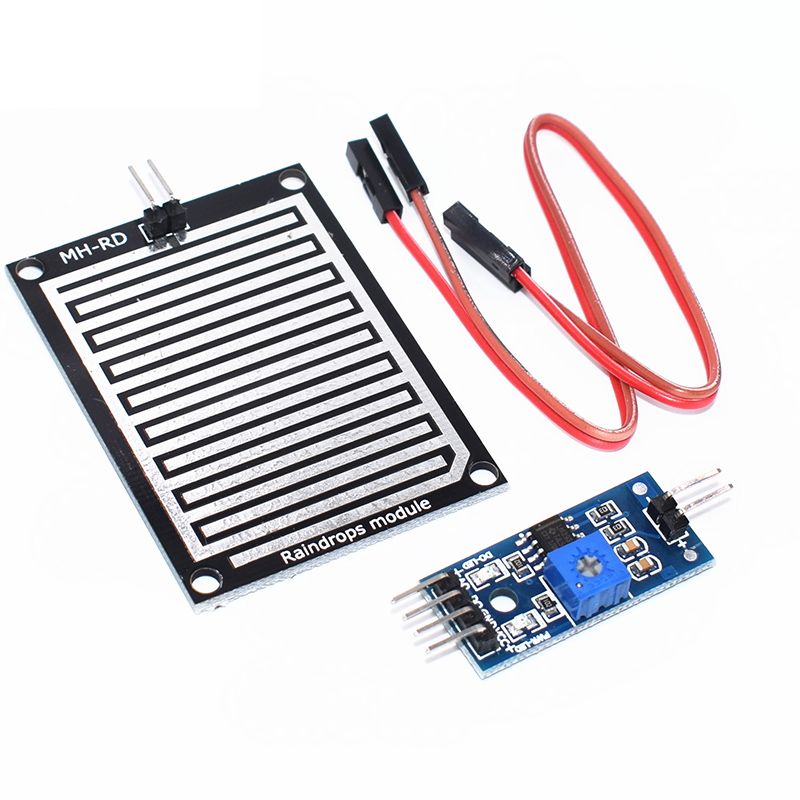

Raindrop sensor module

The raindrop sensor module is used for rain detection. It is also for measuring rainfall intensity. The module includes a rain board and a control board that is separate for more convenience. It has a power indicator LED and an adjustable sensitivity though a potentiometer. The module is based on the LM393 op-amp. It includes a printed circuit board(control board) that “collects” the raindrops. As raindrops are collected on the circuit board, they create paths of parallel resistance that are measured via the op-amp. The lower the resistance (or the more water), the lower the voltage output. Conversely, the less water, the greater the output voltage on the analog pin. A completely dry board, for example, will cause the module to output five volts.

Technical Specifications :

1. Operating voltage: 5V
2. Provide both digital and analog output
3. Adjustable sensitivity
4. Output LED indicator
5. Compatible with Arduino
6. TTL Compatible
7. Bolt holes for easy installation
8. 3.2 cm x 1.4 cm x 1.0 cm

Packages include

1 x The raindrop sensor module set
2 x Female/Female jumper wires
