R307S Fingerprint Identification Module Sensor with Cable 15cm

The R307S Fingerprint Identification Module is a compact and efficient biometric sensor designed for secure fingerprint recognition and identification applications. This module offers high accuracy and speed, making it ideal for various security and access control systems. Equipped with a 15cm cable for easy integration, the R307S module provides reliable performance in a small form factor.

Technical Specifications:

• Model: R307S
• Sensor Type: Optical fingerprint sensor
• Fingerprint Capacity: Up to 1000 fingerprints
• Interface: UART (TTL)
• Baud Rate: 9600 bps (default), adjustable
• Operating Voltage: 3.6V to 6.0V DC
• Current Consumption:
  • Working Current: < 100mA
  • Peak Current: < 150mA
  • Standby Current: < 10uA
• Verification Speed: < 1 second
• False Acceptance Rate (FAR): < 0.001%
• False Rejection Rate (FRR): < 0.1%
• Operating Temperature Range: -20°C to +60°C
• Dimensions: Compact size for easy integration
• Cable Length: 15cm

Features:

• High Accuracy: Ensures precise fingerprint recognition and identification.
• Fast Verification: Quickly verifies fingerprints in less than a second.
• Large Capacity: Stores up to 1000 fingerprints for extensive use.
• Compact Design: Small form factor allows for easy integration into various applications.
• Flexible Interface: UART interface for easy communication with microcontrollers and other devices.
• Low Power Consumption: Efficient operation suitable for battery-powered applications.

Applications:

• Access control systems
• Time and attendance systems
• Security systems
• Safe and lock systems
• Biometric identification projects
• Home automation

How to Use:

1. Connect the Module:
   • Use the included 15cm cable to connect the module to your microcontroller or system.
   • Connect the VCC and GND pins to the power supply (3.6V to 6.0V DC).
   • Connect the TX and RX pins to the corresponding UART pins on your microcontroller.

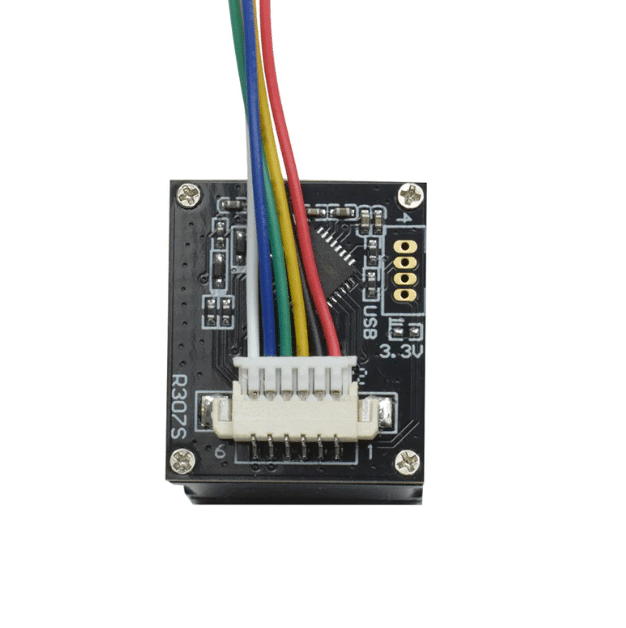

2. • Pin Configuration:

     1. Red wire         – 5V
     2. Black wire      – Ground
     3. Yellow wire    – Pin 2
     4. Green wire     – Pin 3

The R307S Fingerprint Identification Module with a 15cm cable offers a reliable and secure solution for integrating fingerprint recognition into your projects. Whether you’re developing a security system, access control, or a biometric identification application, this module provides the performance and accuracy you need.

Download the library here— https://github.com/adafruit/Adafruit-Fingerprint-Sensor-Library

Package Includes:

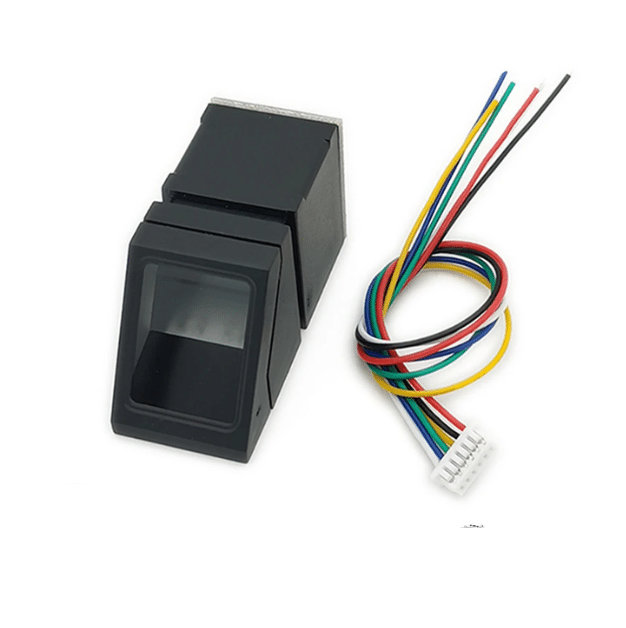

1 x R307S Optical Fingerprint Reader Sensor Module.

1 x 6 pin RMC Connector with wire
