PZEM-004T AC Voltage Current Power Data Acquisition Module

The PZEM-004T AC Multifunction Electric Energy Metering Power Monitor is a comprehensive solution for accurate monitoring and recording of electrical parameters. Designed for both professional and DIY applications, this powerful module measures AC voltage, current, power, and energy consumption, providing detailed insights into your electrical system’s performance. Its compact design and high precision make it ideal for energy management, industrial automation, and home automation projects.

Technical Specifications:

• Voltage Range: 80-260V AC
• Current Range: 0-100A (with external current transformer)
• Power Range: 0-23kW
• Energy Range: 0-9999kWh
• Frequency Range: 45-65Hz
• Communication Interface: TTL
• Baud Rate: 9600 bps
• Accuracy: ±0.5%
• Display: Real-time data output for voltage, current, power, and energy
• Dimensions: Compact and easy to integrate into existing systems
• Operating Temperature Range: -10°C to +50°C
• Power Consumption: Low power consumption for efficient operation

Features:

• High Accuracy: Ensures precise measurement of voltage, current, power, and energy
• Real-Time Monitoring: Provides continuous real-time data for effective monitoring
• Multifunctional: Measures multiple electrical parameters for comprehensive analysis
• Compact Design: Small form factor for easy integration into various applications
• TTL Interface: Simple communication with microcontrollers and other devices
• Wide Range: Suitable for a variety of AC monitoring needs from residential to industrial applications

Applications:

• Energy management systems
• Industrial automation
• Home automation
• Electrical equipment monitoring
• Data logging and analysis

Enhance your energy monitoring capabilities with the PZEM-004T AC Multifunction Electric Energy Metering Power Monitor, offering precise and real-time data for your critical applications.

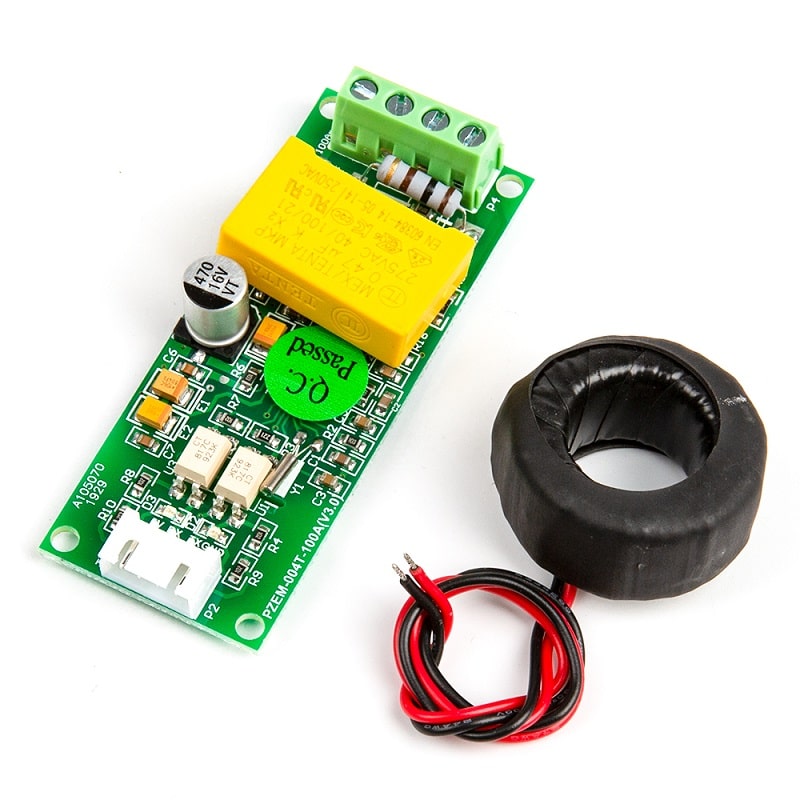

Package Includes:

1 x PZEM-004T Multi-function AC Power Monitor Module

1 x Current Transformer coil
