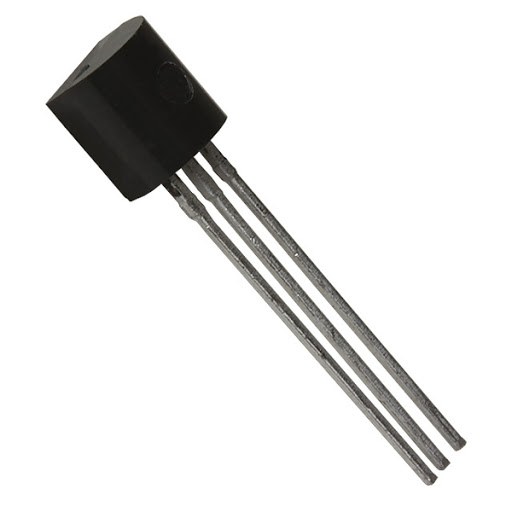

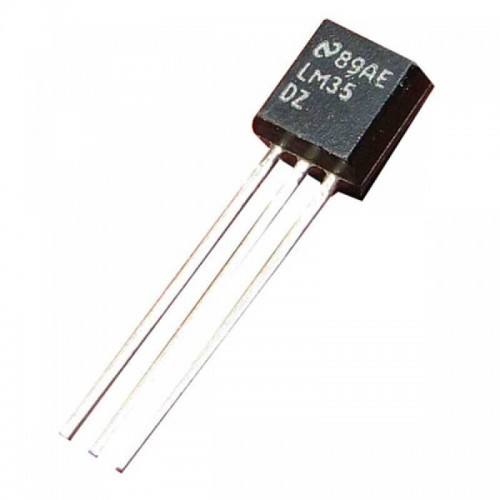

LM35 Temperature Sensor

The LM35 series are precision integrated-circuit temperature sensors, whose output voltage is linearly proportional to the Celsius (Centigrade) temperature. Since it has a Linear + 10.0 mV/°C scale factor it is very easy to calculate temperature value.

The LM35 thus has an advantage over linear temperature sensors calibrated in ° Kelvin, as the user is not required to subtract a large constant voltage from its output to obtain convenient Centigrade scaling. The LM35 does not require any external calibration or trimming to provide typical accuracies of ±1⁄4°C at room temperature and ±3⁄4°C over a full −55 to +150°C temperature range. Low cost is assured by trimming and calibration at the wafer level. The LM35’s low output impedance, a linear output, and precise inherent calibration make interfacing to readout or control circuitry especially easy. It can be used with single power supplies, or with plus and minus supplies. As it draws only 60 μA from its supply, it has very low self-heating, less than 0.1°C in still air.

Technical Details

1. Calibrated directly in ° Celsius (Centigrade)
2. Linear + 10.0 mV/°C scale factor
3. 0.5°C accuracy guarantee (at +25°C)
4. Rated for full −55° to +150°C range
5. Suitable for remote applications
6. Low cost due to wafer-level trimming
7. Operates from 4 to 30 volts
8. Less than 60 μA current drain
9. Low self-heating, 0.08°C in still air
10. Nonlinearity only ±1⁄4°C typical
11. Low impedance output, 0.1 W for 1 mA load

Package includes:

• 1 x LM35 Temperature Sensor
