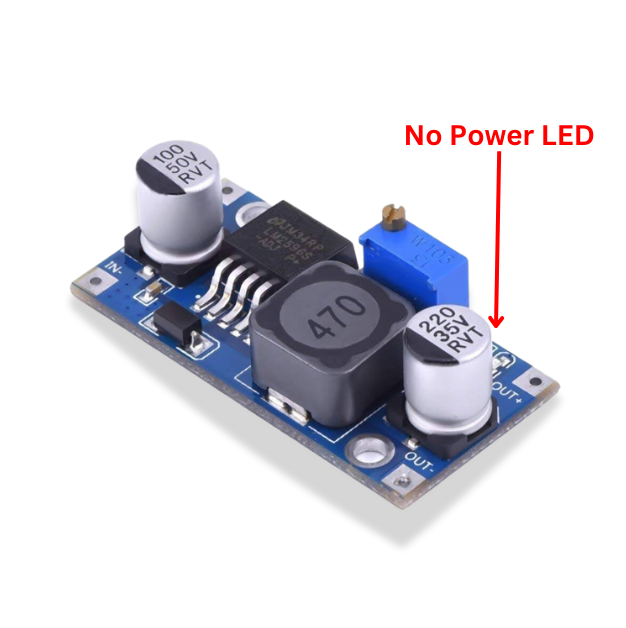

LM2596 LM2596S DC-DC Step- Down Buck Converter Module without SMD LED

The LM2596 LM2596S DC-DC Step-Down Power Supply Module is a highly efficient buck converter designed to reduce higher input voltages to a lower, stable output voltage. This module is based on the popular LM2596 or LM2596S integrated circuit and is known for its reliability, simplicity, and high efficiency. It’s ideal for powering various electronic devices, DIY projects, and embedded systems. This specific version of the module does not include an SMD LED, making it a straightforward, no-frills solution for voltage regulation.

Key Features

• High Efficiency: The module operates with up to 92% efficiency, ensuring minimal power loss during voltage conversion.
• Adjustable Output Voltage: The output voltage can be easily adjusted using the onboard potentiometer, typically from 1.25V to 35V, depending on the input voltage.
• Wide Input Voltage Range: Supports an input voltage range of 4V to 40V, making it versatile for various power sources.
• High Output Current: Capable of delivering up to 3A of continuous current, suitable for a wide range of applications.
• Compact Design: The module is compact, making it easy to integrate into various projects without taking up much space.
• No SMD LED: This version of the module does not include an SMD LED, which simplifies the design and reduces potential sources of power drain, particularly useful in low-power applications.

Specifications

• Input Voltage: 4V to 40V DC
• Output Voltage: Adjustable from 1.25V to 35V DC
• Maximum Output Current: 3A (recommended continuous current: 2A)
• Efficiency: Up to 92% (depending on input/output conditions)
• Switching Frequency: 150 kHz
• Operating Temperature: -40°C to +85°C
• Dimensions: Typically around 45mm x 20mm x 14mm
• Potentiometer: Onboard for easy adjustment of the output voltage

Applications

• Power Supply for Electronics: Ideal for providing a stable, adjustable power supply to various electronic devices and circuits.
• DIY Projects: Perfect for hobbyists who need a reliable power source for their custom electronics or prototypes.
• Embedded Systems: Suitable for use in embedded systems where space and power efficiency are important.
• Battery-Powered Devices: Can be used to step down voltage from batteries to match the requirements of different electronic components.
• LED Drivers: Useful in driving LEDs or other components requiring a specific lower voltage from a higher voltage source.
• Automotive Applications: Can be used to convert car battery voltage to power lower-voltage devices.

Benefits

• Efficient Voltage Regulation: Provides a reliable and efficient means to step down voltage, conserving energy and reducing heat generation.
• Customizable Output: The adjustable output voltage allows you to tailor the power supply to meet the exact needs of your project.
• Simple Integration: The compact design and straightforward operation make it easy to add to your existing projects or designs.
• No Unnecessary Features: The lack of an SMD LED reduces potential power drain, making it ideal for applications where every bit of power counts.
• Versatile Applications: Can be used in a wide range of scenarios, from hobby electronics to professional embedded systems.

Why Choose the LM2596 LM2596S DC-DC Step-Down Power Supply Module (Without SMD LED)?

The LM2596 LM2596S DC-DC Step-Down Power Supply Module is a reliable, efficient, and cost-effective solution for voltage regulation in various electronic projects. Whether you need to power a small device, run a DIY project, or manage power in an embedded system, this module offers the flexibility, efficiency, and simplicity you need. The absence of an SMD LED makes it especially suitable for low-power applications where efficiency is paramount.

Order your LM2596 LM2596S DC-DC Step-Down Power Supply Module (Without SMD LED) today and ensure your projects have the reliable power supply they need!
