LM2596 LM2596S DC-DC Step- Down Buck Converter Module with SMD LED

The LM2596 LM2596S DC-DC Step-Down Power Supply Module is a popular and reliable buck converter designed to reduce higher DC input voltages to a stable, adjustable lower output voltage. This version of the module includes an SMD LED, which serves as a power indicator, providing visual confirmation that the module is powered and functioning. It is an ideal choice for a wide range of electronic applications, including DIY projects, embedded systems, and powering various devices.

Key Features

• High Efficiency: The module operates with up to 92% efficiency, minimizing power loss and heat generation during voltage conversion.
• Adjustable Output Voltage: The output voltage can be easily adjusted from 1.25V to 35V using the onboard potentiometer, allowing for versatile use in different applications.
• Wide Input Voltage Range: Supports an input voltage range of 4V to 40V, making it compatible with various power sources.
• High Output Current: Capable of delivering up to 3A of continuous current (recommended continuous current: 2A), making it suitable for powering a wide range of devices.

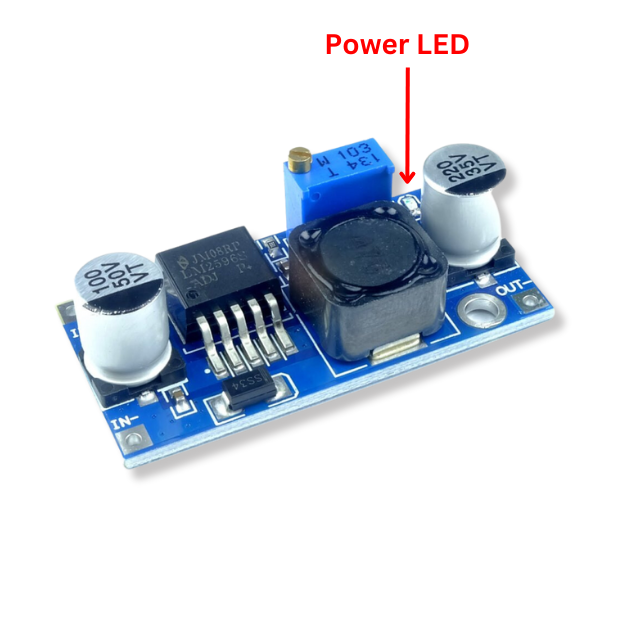

• SMD LED Indicator: The integrated SMD LED serves as a power indicator, giving you a visual cue that the module is operating correctly.
• Compact and Durable Design: The module’s compact form factor allows for easy integration into projects, while the robust design ensures reliable performance.

Specifications

• Input Voltage: 4V to 40V DC
• Output Voltage: Adjustable from 1.25V to 35V DC
• Maximum Output Current: 3A (recommended continuous current: 2A)
• Efficiency: Up to 92% (depending on input/output conditions)
• Switching Frequency: 150 kHz
• Operating Temperature: -40°C to +85°C

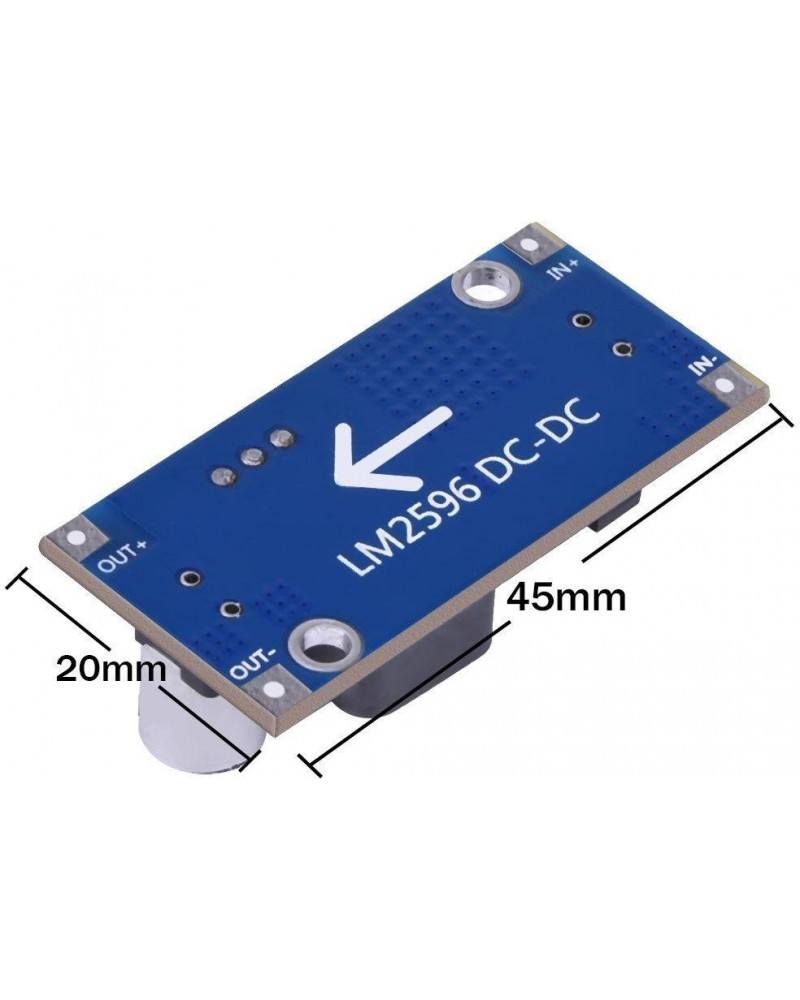

• Dimensions: Typically around 45mm x 20mm x 14mm
• SMD LED: Power indicator LED to show module operation
• Potentiometer: Onboard for easy adjustment of the output voltage

Applications

• Power Supply for Electronics: Ideal for providing a stable, adjustable power supply to various electronic devices and circuits.
• DIY Projects: Perfect for hobbyists who need a reliable power source for their custom electronics or prototypes.
• Embedded Systems: Suitable for use in embedded systems where space and power efficiency are important.
• Battery-Powered Devices: Can be used to step down voltage from batteries to match the requirements of different electronic components.
• LED Drivers: Useful in driving LEDs or other components requiring a specific lower voltage from a higher voltage source.
• Automotive Applications: Can be used to convert car battery voltage to power lower-voltage devices.

Benefits

• Visual Power Confirmation: The SMD LED provides immediate visual feedback, confirming that the module is powered and functioning.
• Efficient Voltage Regulation: Provides a reliable and efficient means to step down voltage, conserving energy and reducing heat generation.
• Customizable Output: The adjustable output voltage allows you to tailor the power supply to meet the exact needs of your project.
• Easy Integration: The compact design and straightforward operation make it easy to add to your existing projects or designs.
• Versatile Applications: Suitable for a wide range of scenarios, from hobby electronics to professional embedded systems.

Why Choose the LM2596 LM2596S DC-DC Step-Down Power Supply Module with SMD LED?

The LM2596 LM2596S DC-DC Step-Down Power Supply Module with SMD LED is an excellent choice for anyone needing a reliable, efficient, and easy-to-use voltage regulator. The added SMD LED provides the convenience of visual power confirmation, making it easier to troubleshoot and verify the operation of your projects. Whether you’re building a DIY gadget, developing an embedded system, or simply need a versatile power supply, this module offers the features, reliability, and performance you need.

Order your LM2596 LM2596S DC-DC Step-Down Power Supply Module with SMD LED today and power your projects with confidence and ease!
