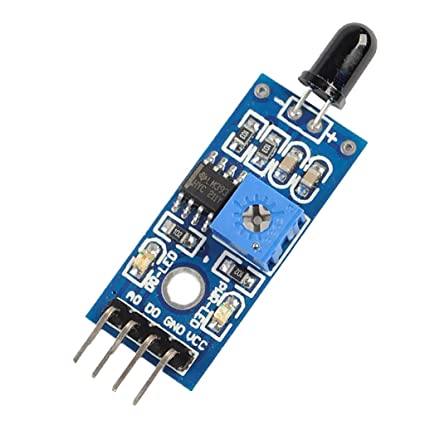

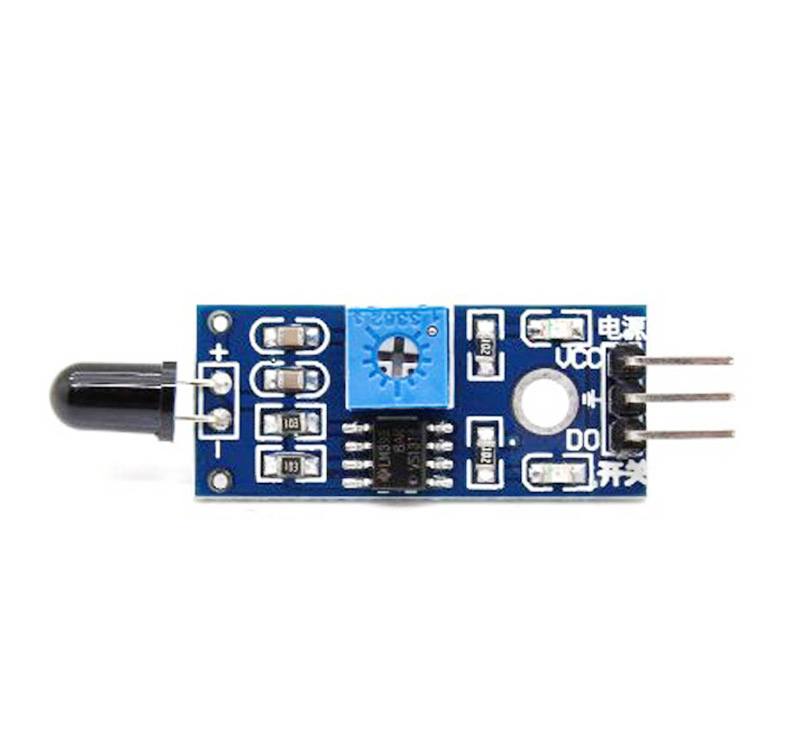

Flame Sensor Module

This Flame Sensor can be used to detect fire sources or other light sources of the wavelength in the range of 760nm – 1100 nm. It is based on the YG1006 sensor which is a high speed and high sensitive NPN silicon phototransistor. Due to its black epoxy, the sensor is sensitive to infrared radiation. The sensor can be a great addition in a fire fighting robot, it can be used as a robot’s eyes to find the fire source. When the sensor detects flame the Signal LED will light up and the D0 pin goes LOW.

Technical Features:

1. High Photo Sensitivity
2. Fast Response Time
3. Sensitivity adjustable

Technical Specification:

1. Working voltage: 3.3v – 5v
2. Detect range: 60 degrees
3. Digital/Analog output
4. On-board LM393 chip

Dimension:: 3.2cm x 1.4cm
