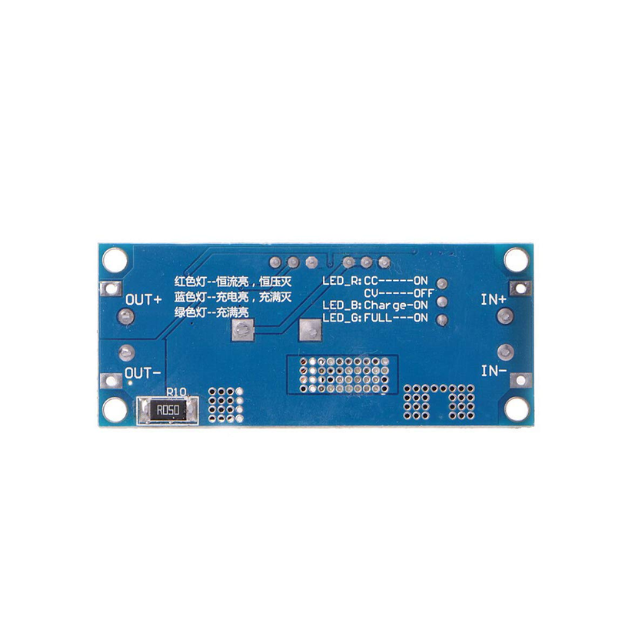

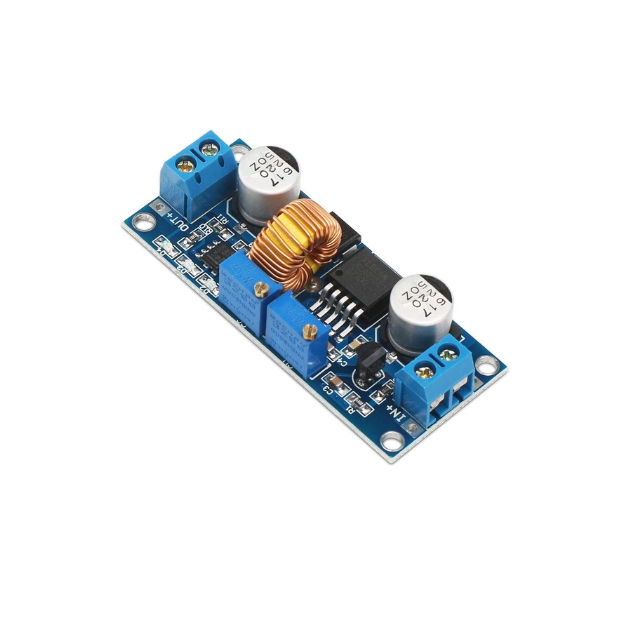

Blue DC-DC XL4015 Adjustable Step-Down Module 5A 75W

The Blue DC-DC XL4015 Adjustable Step-Down Module is a high-efficiency voltage regulator designed to convert higher DC voltages to a lower, stable output voltage. Capable of delivering up to 5A of current and 75W of power, this module is ideal for powering various electronic devices and projects that require a reliable and adjustable DC power supply. Its robust design and compact form factor make it suitable for a wide range of applications, including DIY electronics, battery charging, and embedded systems.

Key Features

• High Power Output: Capable of delivering up to 5A of current and 75W of power, making it suitable for high-current applications.
• Adjustable Output Voltage: Output voltage can be easily adjusted from 1.25V to 36V using the onboard potentiometer, allowing for precise control to meet specific requirements.
• High Efficiency: Utilizes the XL4015 chip to achieve high conversion efficiency, typically up to 92%, minimizing heat generation and power loss.
• Input Voltage Range: Operates with an input voltage range of 8V to 36V DC, offering flexibility for various power sources.
• Compact Design: Small and lightweight, making it easy to integrate into a wide range of projects and devices.
• Overcurrent and Thermal Protection: Built-in protection features safeguard the module and connected devices from overcurrent and overheating.
• Blue PCB: The module’s blue PCB adds a visually appealing touch to your project.

Specifications

• Input Voltage: 8V to 36V DC
• Output Voltage: Adjustable from 1.25V to 36V DC
• Output Current: Up to 5A (max)
• Power Output: Up to 75W (max)
• Efficiency: Up to 92% (depending on input/output conditions)
• Switching Frequency: 180kHz
• Operating Temperature: -40°C to +85°C

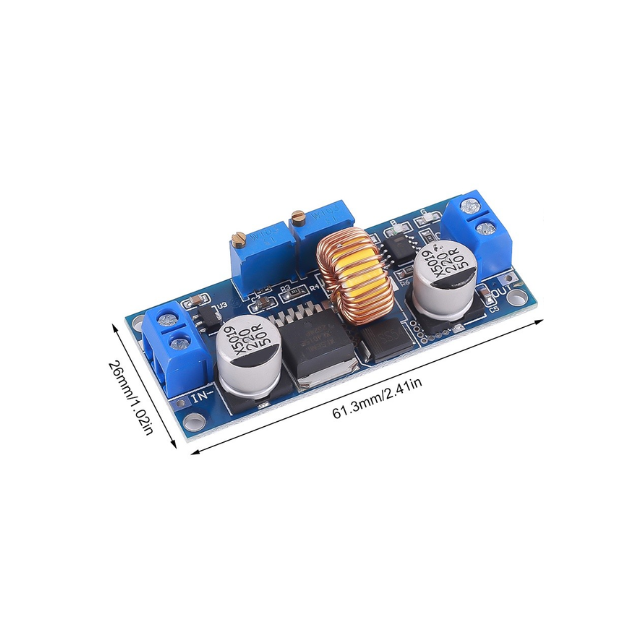

• Dimensions: Typically around 51mm x 26mm x 14mm
• Color: Blue PCB

Applications

• Power Supplies: Ideal for creating custom DC power supplies with adjustable voltage for various electronic devices.
• Battery Charging: Suitable for charging batteries with specific voltage requirements, ensuring safe and efficient charging.
• LED Drivers: Can be used to drive LED lights with adjustable brightness control.
• Embedded Systems: Provides stable power to embedded systems and microcontroller projects, such as Arduino and Raspberry Pi.
• DIY Electronics: Perfect for hobbyists and makers building custom electronics or modifying existing devices.
• Automotive: Suitable for use in automotive applications where converting higher battery voltage to a lower, stable voltage is necessary.

Benefits

• Flexibility: Adjustable output voltage makes it suitable for a wide range of applications and devices.
• High Efficiency: Maximizes energy use with minimal heat generation, making it ideal for long-term use in power-sensitive applications.
• Robust Protection: Built-in overcurrent and thermal protection features ensure safe and reliable operation.
• Ease of Integration: Compact size and simple wiring make it easy to incorporate into new or existing projects.
• Aesthetic Appeal: The blue PCB adds a stylish element to your electronic projects.

Why Choose the Blue DC-DC XL4015 Adjustable Step-Down Module 5A 75W?

The Blue DC-DC XL4015 Adjustable Step-Down Module is an essential component for anyone needing a reliable, high-power DC voltage regulator. Whether you’re building a custom power supply, charging batteries, or powering an embedded system, this module offers the flexibility, efficiency, and protection you need. Its adjustable output voltage, high current capability, and compact design make it a versatile choice for a wide range of applications.

Order your Blue DC-DC XL4015 Adjustable Step-Down Module today and power your projects with confidence and efficiency!
