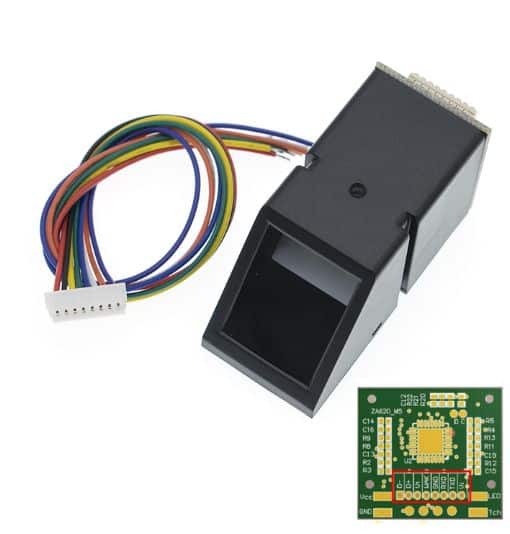

AS608 Optical Fingerprint Module

1. Sensor Type: Optical fingerprint sensor
2. Image Resolution: 508 DPI (dots per inch)
3. Fingerprint Template Storage: Up to 200 templates
4. Fingerprint Matching Speed: <1 second
5. False Acceptance Rate (FAR): <0.001% (1 in 100,000)
6. False Rejection Rate (FRR): <1%
7. Sensor Area: 16.4 mm x 18.0 mm
8. Operating Voltage: 3.3V DC
9. Operating Current: <100mA (typical)
10. Interface: UART (Universal Asynchronous Receiver-Transmitter)
11. Communication Baud Rate: Configurable up to 115200 bps
12. Operating Temperature: -20°C to 60°C (-4°F to 140°F)
13. Storage Temperature: -40°C to 85°C (-40°F to 185°F)
14. Fingerprint Image Capture Time: <0.5 seconds
15. Template Update Time: <0.5 seconds
16. Dimensions: Varies by specific module, but typically compact and suitable for integration
17. Enrollment and Verification Methods: 1:1 (one-to-one) and 1:N (one-to-many)
18. Power Consumption: Varies depending on usage and power management settings
19. Compatibility: Typically compatible with various microcontroller platforms and development environments
20. Additional Features: Often includes features such as live finger detection, anti-spoofing measures, and customizable security settings.

Please note that specific technical specifications may vary depending on the manufacturer and model of the AS608 Fingerprint Module, so it’s essential to refer to the datasheet or documentation provided by the manufacturer for precise details when working with this module.
