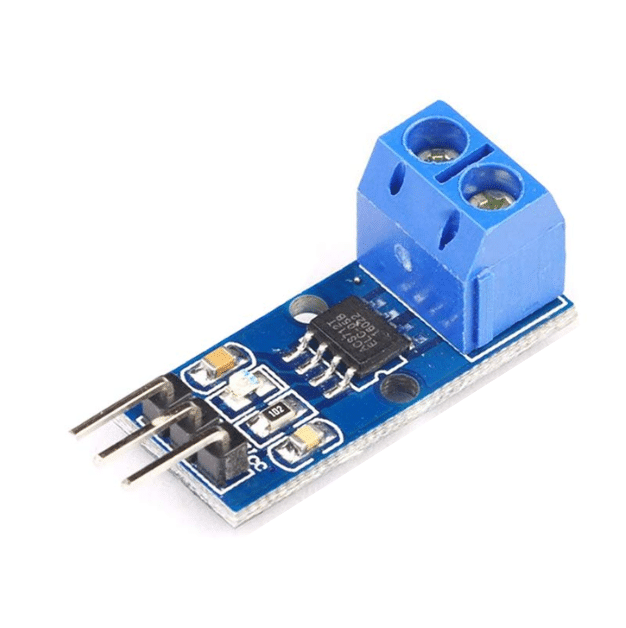

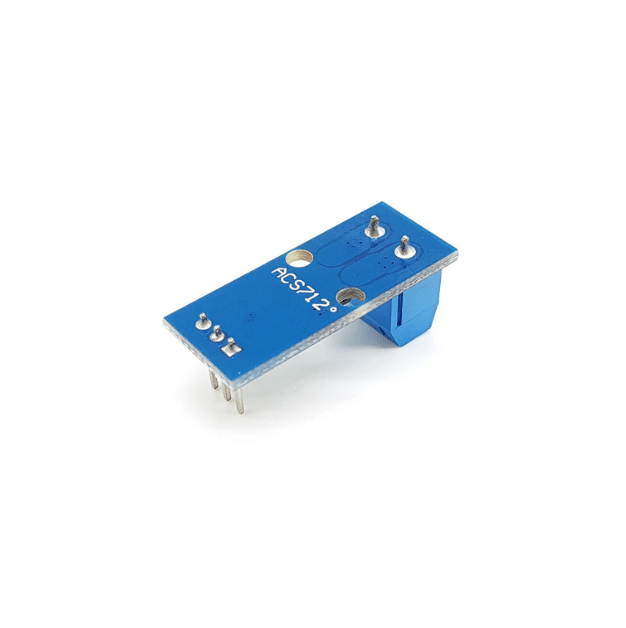

ACS712 30A Range Current Sensor Module

The ACS712 30A Range Current Sensor Module is a robust and precise device designed to measure high currents up to 30A. Utilizing the ACS712 sensor, this module can accurately detect both AC and DC currents, providing an analog voltage output that is proportional to the current being measured. Its reliable performance and easy integration make it an excellent choice for various applications, including power monitoring, industrial control, and battery management.

Technical Specifications:

• Sensor Model: ACS712
• Current Range: ±30A
• Output Type: Analog voltage
• Supply Voltage: 5V DC
• Sensitivity: 66 mV/A
• Accuracy: High accuracy with minimal offset drift
• Bandwidth: 80 kHz
• Response Time: 5 μs
• Dimensions: Compact and easy to integrate
• Mounting: PCB mountable
• Operating Temperature Range: -40°C to +85°C

Features:

• Bidirectional Current Sensing: Measures both AC and DC currents
• High Sensitivity: 66 mV/A sensitivity for precise high-current measurements
• Easy Integration: Simple to interface with microcontrollers and other electronics
• Compact Design: Small form factor suitable for various applications
• Reliable Performance: Ensures high accuracy and fast response time

Applications:

• Power monitoring systems
• Industrial control systems
• Battery management systems
• Overcurrent protection
• Energy metering
• DIY electronics projects

Enhance your current measurement capabilities with the ACS712 30A Range Current Sensor Module, delivering accurate and reliable performance for a wide range of high-current applications.
