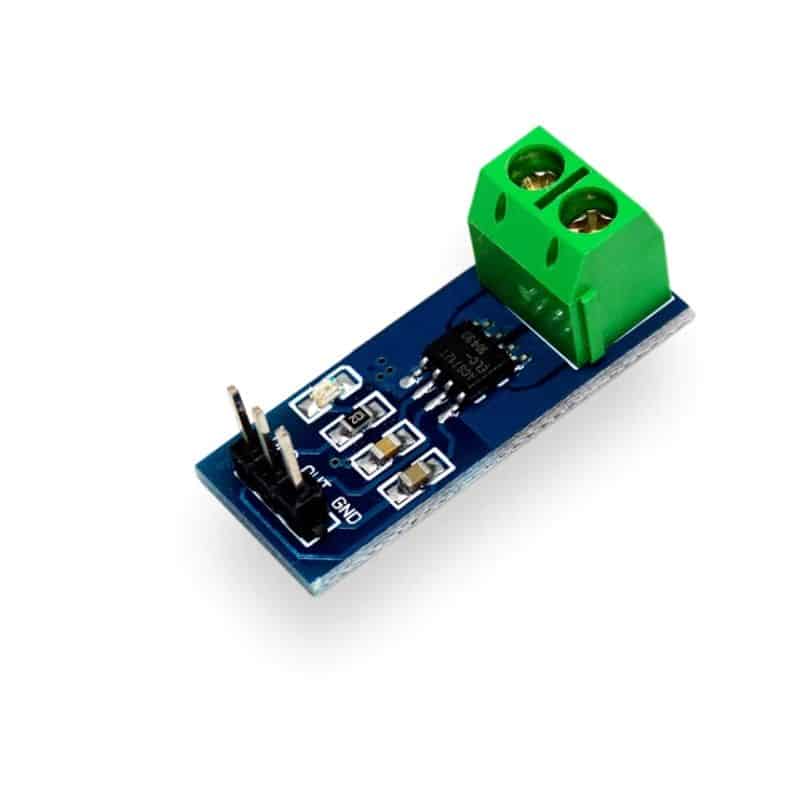

ACS712 20A Range Current Sensor Module

The ACS712 20A Range Current Sensor Module is designed to accurately measure current up to 20A, making it ideal for a wide range of applications. This module utilizes the ACS712 sensor to detect both AC and DC currents, providing an analog voltage output proportional to the current being measured. Its compact size and easy integration capabilities make it a valuable component for power monitoring, industrial control, and battery management systems.

Technical Specifications:

• Sensor Model: ACS712
• Current Range: ±20A
• Output Type: Analog voltage
• Supply Voltage: 5V DC
• Sensitivity: 100 mV/A
• Accuracy: High accuracy with minimal offset drift
• Bandwidth: 80 kHz
• Response Time: 5 μs

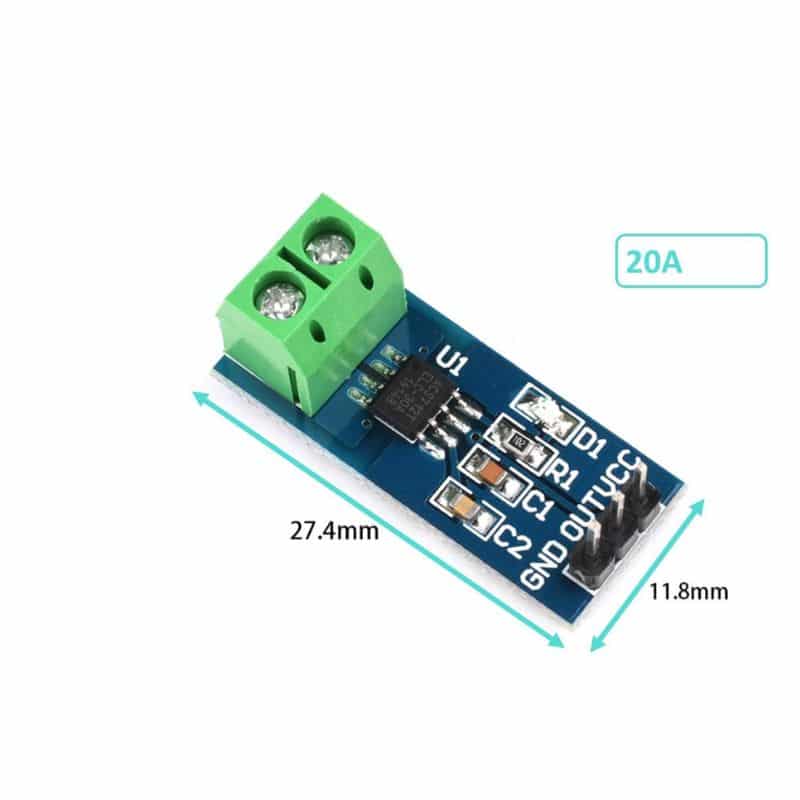

• Dimensions: Compact and easy to integrate
• Mounting: PCB mountable
• Operating Temperature Range: -40°C to +85°C

Features:

• Bidirectional Current Sensing: Capable of measuring both AC and DC currents
• High Sensitivity: 100 mV/A sensitivity for precise current measurements
• Easy Integration: Simple to connect with microcontrollers and other electronics
• Compact Design: Small size for versatile use in various applications
• Reliable Performance: Ensures high accuracy and fast response time

Applications:

• Power monitoring systems
• Industrial control circuits
• Battery management systems
• Overcurrent protection
• Energy metering
• DIY electronics projects

Upgrade your current measurement capabilities with the ACS712 20A Range Current Sensor Module, providing accurate and reliable performance for a wide range of applications.
