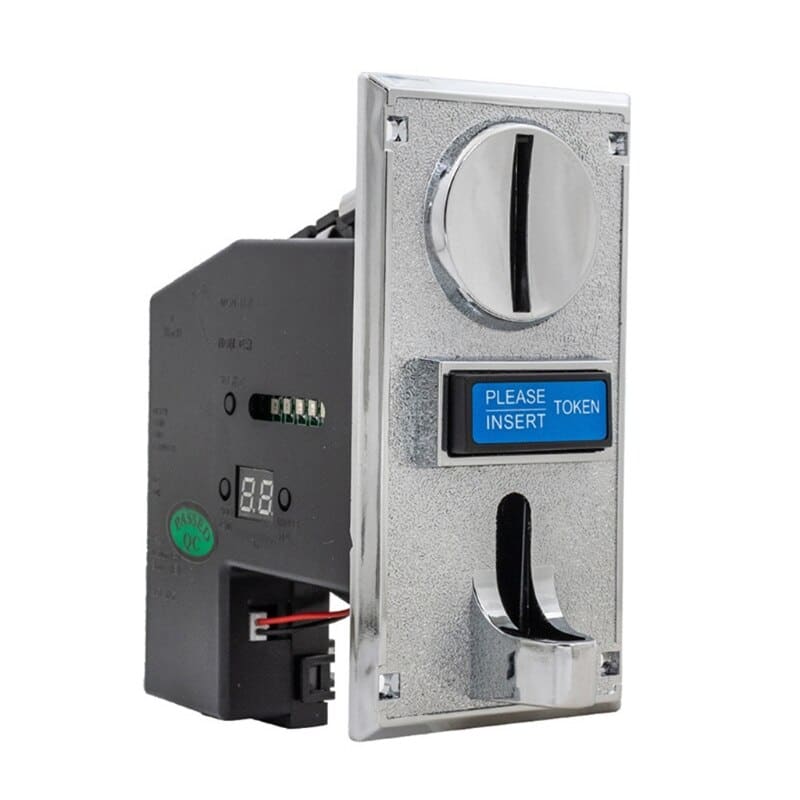

616 Multi Coin Acceptor

This handy coin validator/acceptor module is just like the ones you’ve seen in arcades. Ability to accept up to 6 different coins! For example, you can program it for 6 different US coins, or European, or Japanese OR you can have it accept 6 coins from different countries – say a Chinese Yuan, Japanese Yen, American Quarter and European Euro. First you’ll have to program it with what coins you want it to accept. Any coin from 15mm to 29mm in diameter can be used. Each coin is assigned a number of pulses, so for example, a nickel should be 1 pulse, a dime, 2 pulses, a quarter 5 pulses and a half dollar 10 pulses. When a valid coin is inserted, the output line will pulse for 20-60ms (configurable). The acceptor looks for diameter, thickness, dropping speed, etc to determine if a coin is valid. Application For replacement: coin kiosk, car washing machine, TV, massage chair, cloth dryer, cyber coffee, Laundromat, laundry, computer ,amusement machine , arcade machine etc .

Features

• Intelligent CPU software control
• high accuracy Self-programming without PC Programmable
• 1 ~ 6 different kinds of coins / token
• Pulse output
• Automatic self-test for error

Specification:

• Working Voltage: 12V DC
• Acceptable Coin Dimension: 15mm – 29mm
• Acceptable Coin Thickness: 1.8mm – 3mm

Package Includes:

• 1 x Coin Acceptor
• 4 x Set of screws 1 x 4P winding cable
• Procedure for altering the numerical value of the interior:

The Video below is exactly the Multi Coin Acceptor Module.

please watch and share this video
