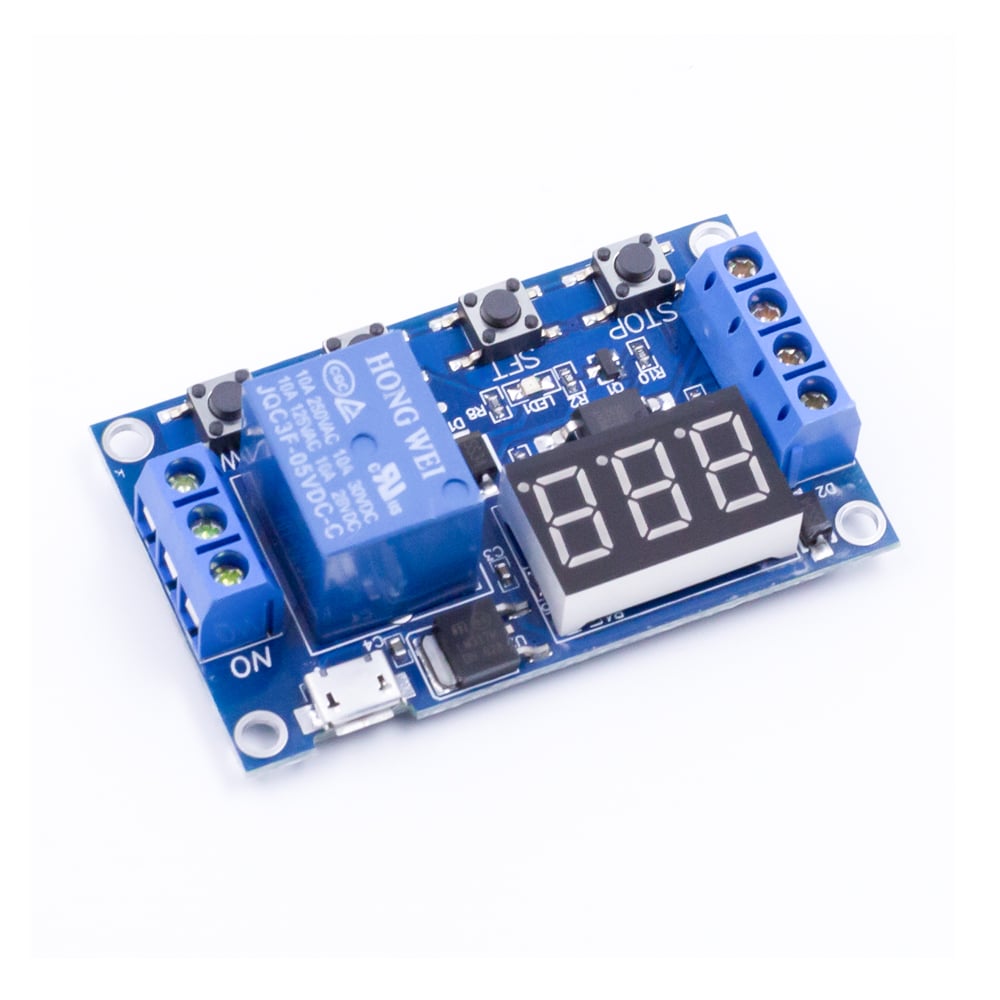

1 Channel Delay Power-off Relay Module with Cycle Timing Circuit Switch

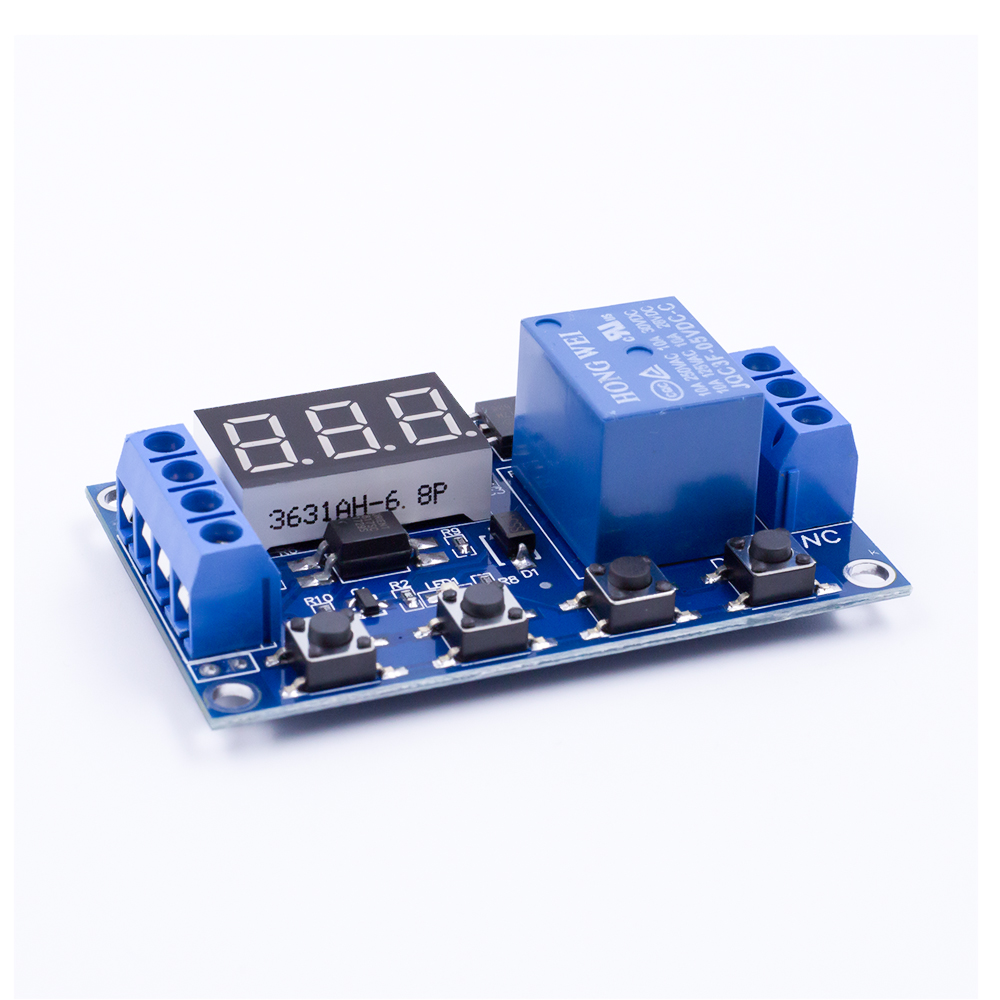

1 Channel Delay Power-off Relay Module with Cycle Timing Circuit Switch - Image 2

1 Channel Delay Power-off Relay Module with Cycle Timing Circuit Switch

Name: 1 Channel Delay Power-off Relay Module with Cycle Timing Circuit Switch
SKU: 18315
Availability: InStock

₵45.00

50 in stock

SKU: 18315 Category: Sensors, Modules & Shields

Description

This module supports a Wide voltage power supply (6 ~ 30V) supports micro USB 5.0V power supply, easy to use, The interface is clear and simple, powerful, easy to understand, and meets almost all your needs, There is a key stop function (STOP key), with reverse polarity protection, reverse polarity does not burn, Increase the sleep mode, it enables, without any operation within 5 minutes, turn off the monitor automatically; any key to wake up, You can set a different OP, CL, LOP parameters, which are independent of each other, were saved, All setup parameters are saved automatically power down.

Technical specifications

1: Operating voltage: 6–30V support micro USB 5.0V power supply

2: The trigger source: high trigger (3.0V-24V) signal with no common ground system to improve anti-jamming capability of the system (also self-shorting common ground)

3: Output capability: You can control the DC or AC within 30v 5A within 220v5A

4: Quiescent Current: 20mA Operating Current: 50mA

5: Timing range: 0.1 seconds -999 minutes continuously adjustable;

6: Availability: more than 10 million times;

Working temperature: -40-85 Celsius;

size: 6.2 * 3.8 * 1.7cm

7: with optocoupler isolation, enhanced anti-jamming capability, industrial grade circuit boards, set the parameters after power failure memory forever.

Special Note: The relay outputs are passive contact, uncharged output to control a line-off role.
