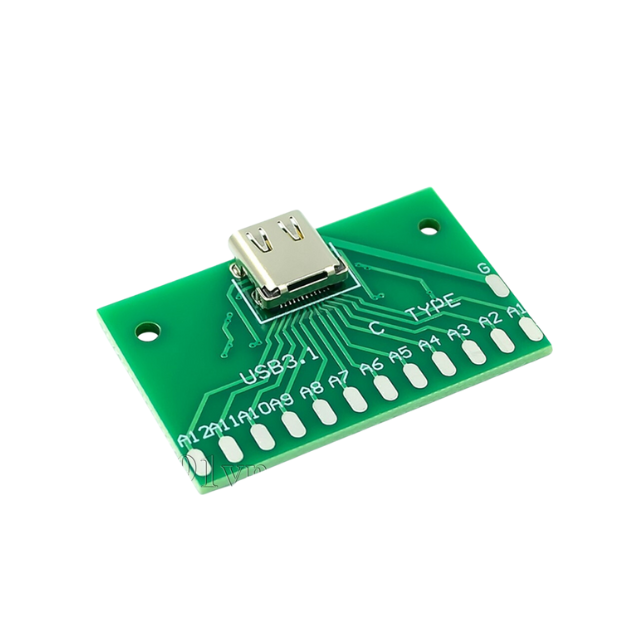

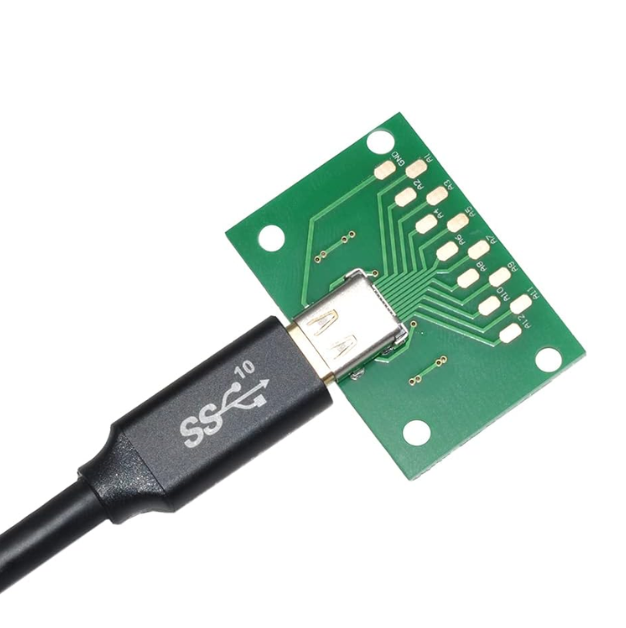

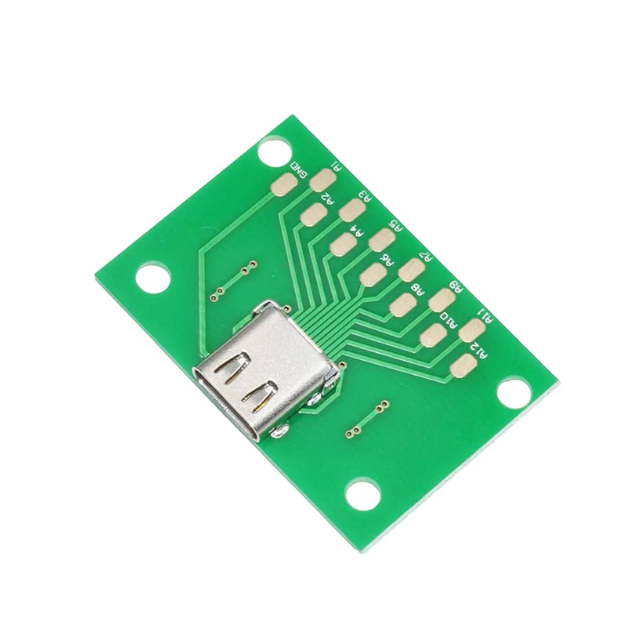

USB Type-C to DIP Adapter Board

The USB Type-C to DIP Adapter Board is a versatile and essential tool for anyone working with USB Type-C connectors in electronic projects. This adapter converts the compact and modern USB Type-C connector to a standard 2.54mm pitch pin header, making it easy to integrate into breadboards or connect to other circuit components. Ideal for prototyping, DIY electronics, and development projects, this adapter board allows you to easily access the power, data, and other pins of a USB Type-C connector.

Key Features

• USB Type-C Connector: Modern, reversible USB Type-C connector that is becoming the standard for many devices, offering high-speed data transfer and power delivery.
• 2.54mm Pitch Pins: Breaks out the USB Type-C pins to a 2.54mm pitch pin header, compatible with standard breadboards and jumper wires.
• Full Pin Access: Provides access to key USB Type-C pins including VBUS (power), GND, D+ (data+), D- (data-), and CC (configuration channel) pins.
• Compact Design: Small, lightweight, and easy to integrate into various electronic projects and prototypes.
• Durable Construction: Made from high-quality PCB material with a robust USB Type-C connector for long-lasting use.
• Easy Prototyping: Perfect for quickly prototyping USB Type-C based circuits or integrating USB Type-C devices with development boards like Arduino, Raspberry Pi, or other microcontrollers.

Specifications

• Connector Type: USB Type-C
• Pin Pitch: 2.54mm (standard breadboard and header pin spacing)
• Number of Pins: Typically 6 to 16 pins (depending on the adapter design), covering VBUS, GND, D+, D-, CC1, CC2, and other relevant pins.
• PCB Material: High-quality FR4 with solder mask and silkscreen labeling
• Dimensions: Compact design, typically around 25mm x 15mm (varies by manufacturer)
• Operating Voltage: Typically 5V for standard USB power

Applications

• Prototyping: Ideal for prototyping circuits that use USB Type-C connectors, allowing easy access to the pins.
• DIY Electronics: Suitable for DIY electronics enthusiasts working on projects involving USB Type-C devices or power supplies.
• USB-C Device Testing: Useful for testing and debugging USB Type-C devices and circuits.
• Power Delivery: Can be used to deliver power to projects from USB Type-C power sources.
• Development Boards: Compatible with Arduino, Raspberry Pi, and other development platforms for easy integration of USB Type-C functionality.

Benefits

• Versatility: Provides easy access to USB Type-C pins, making it suitable for a wide range of applications including power delivery, data transfer, and device testing.
• Ease of Use: Simple to connect with standard breadboards and jumper wires, making it accessible even for beginners.
• Modern Connectivity: Allows you to incorporate the latest USB Type-C standard into your projects, future-proofing your designs.
• Reliable Connection: Ensures a stable and secure connection between USB Type-C devices and your circuits, reducing the risk of connection issues.
• Compact and Portable: Small size makes it easy to integrate into various projects and convenient to carry for on-the-go prototyping.

Why Choose the USB Type-C to DIP Adapter Board?

The USB Type-C to DIP Adapter Board is an essential tool for anyone looking to work with the latest USB standard in their electronics projects. Whether you’re developing a new device, testing USB Type-C functionality, or simply powering your project, this adapter provides the versatility and ease of use you need. Its durable construction, full pin access, and compact design make it an indispensable part of your electronics toolkit.

Order your USB Type-C to DIP Adapter Board today and start integrating USB Type-C connectivity into your projects with ease!
