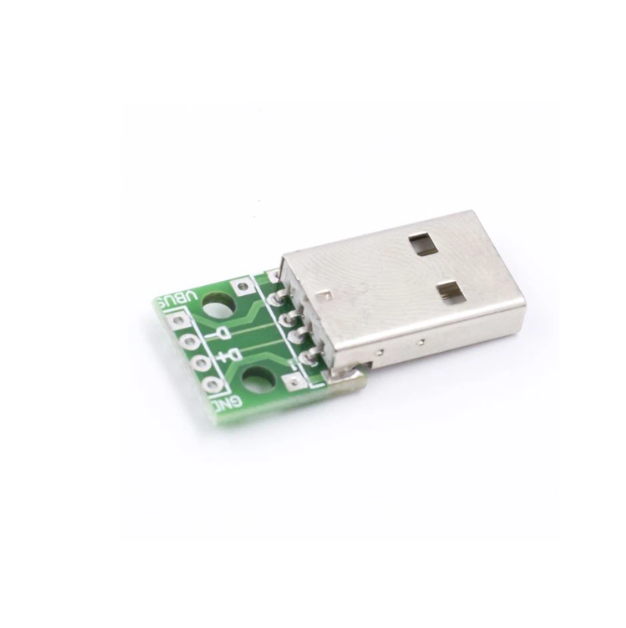

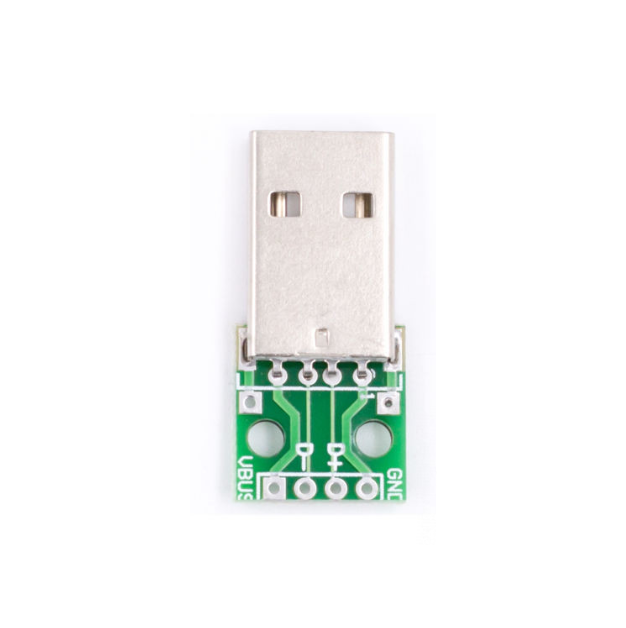

USB Male Head to DIP 2.54mm Direct 4P Adapter Board

The USB Male Head to DIP 2.54mm Direct 4P Adapter Board is a convenient and versatile adapter designed to connect USB devices directly to standard 2.54mm pitch headers or breadboards. This adapter board is perfect for prototyping, DIY electronics projects, and connecting USB devices to microcontrollers or other circuit components. Its compact design and ease of use make it an essential tool for anyone working with USB interfaces in electronic projects.

Key Features

• USB Male Connector: Standard USB Type-A male connector allows for easy connection to USB ports on computers, power adapters, or other USB devices.
• Direct 2.54mm Pinout: The adapter breaks out the USB signals to 2.54mm pitch pins, which can be directly inserted into a breadboard or connected to other circuit components.
• 4-Pin Configuration: The board provides access to the four standard USB pins (VCC, D-, D+, and GND), allowing for full USB functionality in your projects.
• Compact Design: Small and lightweight, making it easy to integrate into various projects and convenient to carry.
• Durable Construction: Made from high-quality PCB material and components to ensure long-lasting performance.
• Easy Prototyping: Ideal for quickly and easily prototyping USB-based circuits or connecting USB devices to development boards like Arduino, Raspberry Pi, or other microcontrollers.

Specifications

• Connector Type: USB Type-A Male
• Pin Pitch: 2.54mm (standard breadboard and header pin spacing)
• Number of Pins: 4 (VCC, D-, D+, GND)
• PCB Material: High-quality FR4 with solder mask
• Dimensions: Typically compact, varying slightly by manufacturer
• Color: Commonly green PCB with white silkscreen labeling
• Operating Voltage: 5V (standard USB voltage)

Applications

• Prototyping: Ideal for use in prototyping USB circuits or integrating USB devices with microcontrollers.
• DIY Electronics: Perfect for DIY electronics enthusiasts looking to create custom USB interfaces.
• USB Device Testing: Useful for testing and debugging USB devices and circuits.
• Power Supply: Can be used to power projects from a USB power source via a breadboard.
• Development Boards: Compatible with Arduino, Raspberry Pi, and other development platforms for easy USB connectivity.

Benefits

• Ease of Use: Provides a simple and straightforward way to connect USB devices to breadboards or other circuit components without needing custom cables or adapters.
• Versatility: Suitable for a wide range of applications, from powering projects to data communication with USB devices.
• Convenient Prototyping: Allows for quick and easy experimentation with USB circuits, making it a valuable tool for both beginners and experienced developers.
• Reliable Connection: Ensures stable and secure connections between USB devices and your circuit, reducing the risk of loose or unreliable connections.
• Portable: Small and easy to carry, making it a handy tool for on-the-go prototyping and testing.

Why Choose the USB Male Head to DIP 2.54mm Direct 4P Adapter Board?

The USB Male Head to DIP 2.54mm Direct 4P Adapter Board is an essential accessory for anyone working with USB interfaces in their electronic projects. Its simple, plug-and-play design makes it easy to integrate USB functionality into your circuits, whether you’re powering devices, transferring data, or prototyping new ideas. With its durable construction and versatile applications, this adapter board is a must-have for your electronics toolkit.

Order your USB Male Head to DIP 2.54mm Direct 4P Adapter Board today and simplify your USB prototyping and connectivity needs!
