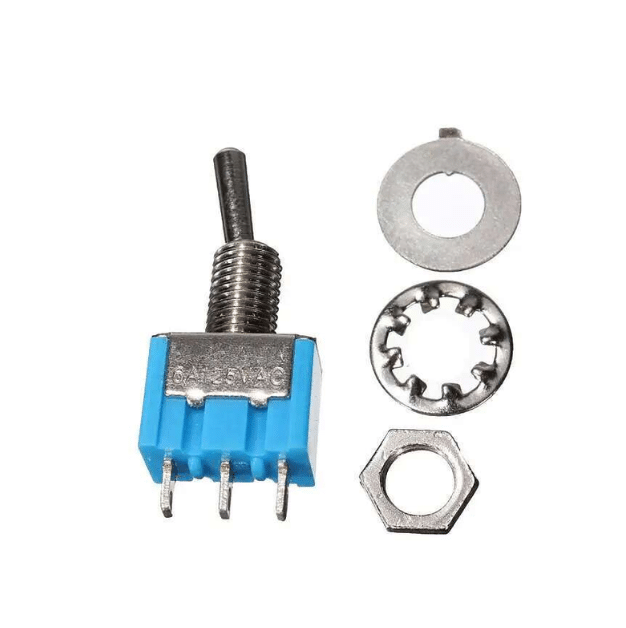

The 3-Pin Metal Toggle SPDT (Single Pole Double Throw) Switch is a compact and reliable component designed for a variety of switching applications. With its sturdy metal construction and straightforward toggle action, this switch is ideal for both professional and hobbyist use. Whether you need to switch between different circuits or control various devices, this SPDT switch offers the functionality and durability required for a wide range of projects.
Key Features
- Robust Metal Construction: Made with high-quality metal for enhanced durability and longevity, suitable for demanding environments.
- SPDT Configuration: Single Pole Double Throw functionality allows for switching between two different circuits, offering versatility in control applications.
- 3-Pin Design: Simple and easy-to-wire configuration with three clearly labeled pins.
- Reliable Toggle Mechanism: Smooth and precise toggle action ensures consistent and reliable operation.
- Panel Mount: Designed for easy panel mounting with a secure fit, providing stability during use.
Specifications
- Switch Type: SPDT (Single Pole Double Throw)
- Contact Rating: 6A at 125V AC, 5A at 250V AC
- Operating Voltage: Up to 250V AC
- Current Rating: 6A at 125V AC, 5A at 250V AC
- Pin Configuration: 3-pin (common, normally open, and normally closed)
- Material: Metal body and toggle lever
- Mounting Type: Panel mount with nut and washer for secure attachment
- Operating Temperature: -20°C to +85°C
- Toggle Life: 50,000 cycles
Applications
- Industrial Control: Ideal for controlling machinery and equipment in industrial settings.
- Consumer Electronics: Suitable for use in audio equipment, home appliances, and various DIY projects.
- Automotive: Perfect for switching lighting, accessories, and other circuits in vehicles.
- Marine: Reliable for marine applications due to its robust construction.
- General Use: Versatile switch for any project requiring reliable SPDT functionality.
Installation and Usage
- Mounting: Drill a hole in your panel or enclosure to match the diameter of the switch’s threaded mounting shaft.
- Wiring: Connect the switch’s pins according to your circuit requirements. The center pin is the common terminal, while the outer pins are the normally open (NO) and normally closed (NC) terminals.
- Securing: Secure the switch in place using the included nut and washer.
- Operation: Flip the toggle to switch between the connected circuits or modes.
Why Choose Our 3-Pin Metal Toggle SPDT Switch?
The 3-Pin Metal Toggle SPDT Switch is an essential component for anyone needing reliable and durable switching capabilities. Its high-quality metal construction ensures long-term performance, while its SPDT configuration offers flexible control options. Easy to install and operate, this switch is perfect for a wide range of applications, from industrial control systems to consumer electronics and automotive projects.
Upgrade your projects with the dependable performance of our 3-Pin Metal Toggle SPDT Switch. Order now and experience superior quality and reliability!
